Description

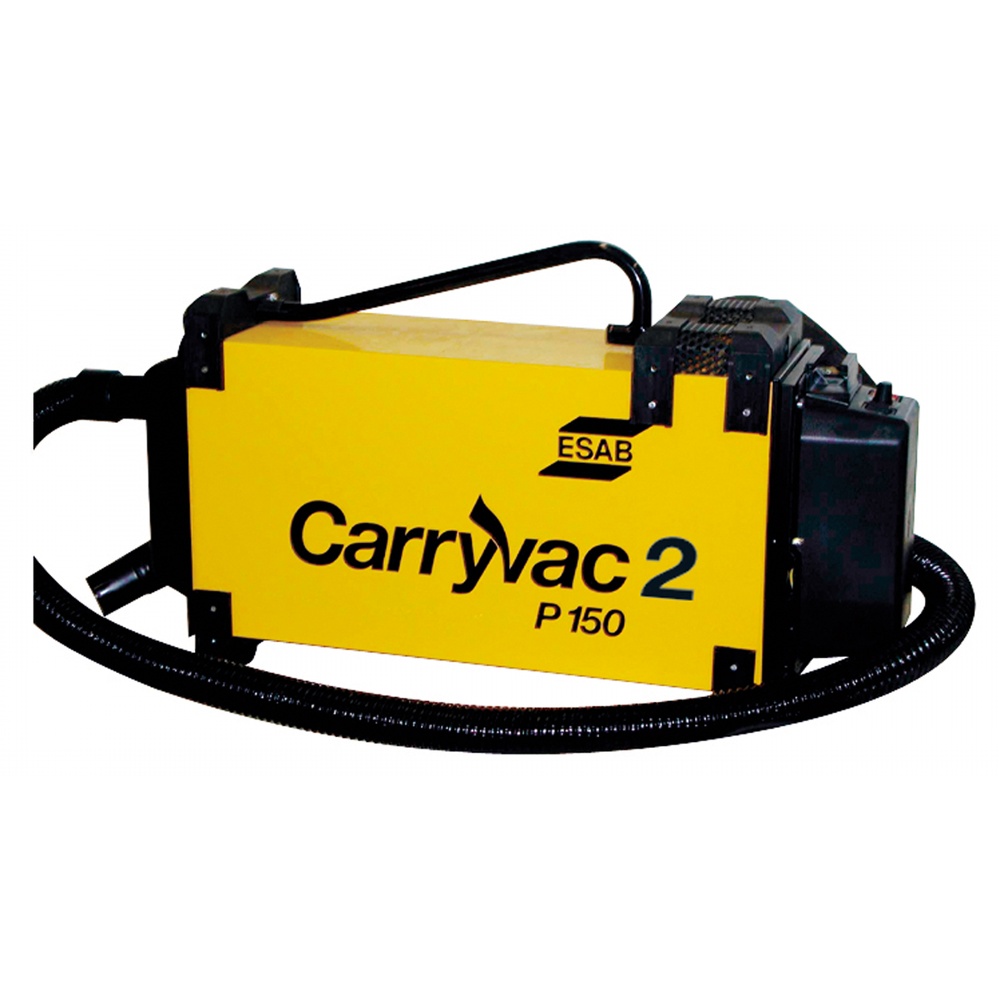

The Carryvac 2 P150/P150 AST are small, lightweight, portable extraction units designed to be carried to the working area. Connected to a welding torch or to an extraction nozzle, the Carryvac 2 units extract the fume directly at source. The polluted air is filtered and captured in a hygienically-packed filter.
The Carryvac 2 is equipped with a filter indicator which shows when the filter must be replaced. It is ideal for maintenance welding, low and medium-duty cycle. The filter capacity is approximately 200 kg of solid wire or twelve 15 kg spools.
The Carryvac 2 P150 AST is equipped with an automatic start/stop function which increases the service life of each filter and of the unit itself. The Carryvac 2 P150 can be mounted on ESABs standard welding machines using the supplied mounting kit.
Technical specification
Length …………………………………………………………………………….. 810mm
Width ……………………………………………………………………………… 226mm
Height …………………………………………………………………………….. 410mm
Weight incl. filter …………………………………………………………………….16kg
Mains power supply ……………………………………………………………230/1~
Output ……………………………………………………………………………..1000 W
Noise level ………………………………………………………………………75 dB (A)
Max vacuum ………………………………………………………………2170mm wp
Filter area ……………………………………………………………………………5.3m2
Air flow (with 2.5m suction hose) …………………………………………150m3/h
Suction hose diameter ……………………………………………………….Ø45mm
Filter efficiency. …………………………………………………………………… 99.7%
