Cylinder & Pump Set, 10 Ton, 6-1/8″ Stroke

£945.00 ex VAT (£1,134.00 inc VAT)

9 t cylinder and single-speed hand pump set with a 155.6 mm stroke, hose and coupler.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982

Available to order – usually despatched in 2–5 working days

Need it by a certain date?

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: RPS106 Categories: , , Brand:

Description

Capacity10 ton (9 t)
Stroke155.6 mm
Collapsed height247.7 mm
PumpP55, single-speed

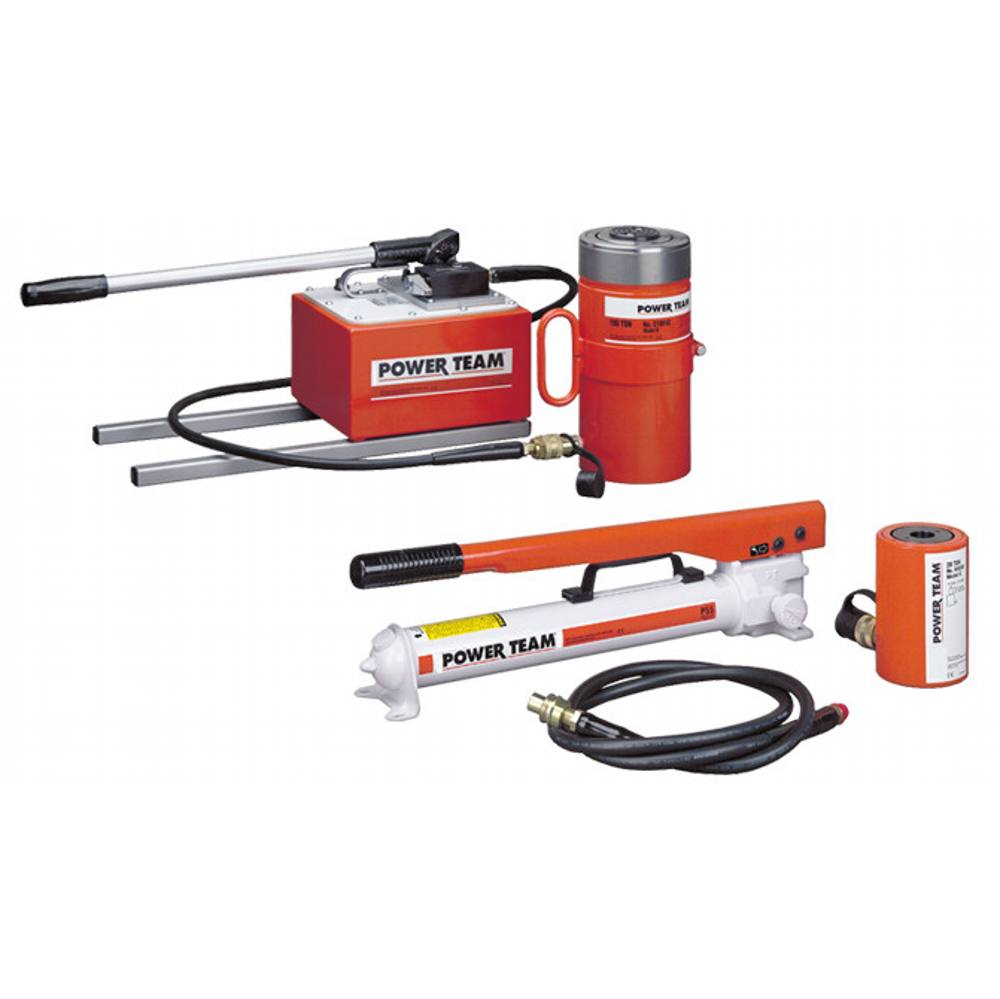

The Power Team RPS106 is a ready-to-use hydraulic set built around a 9 t general-purpose cylinder with a 155.6 mm stroke, paired with a P55 single-speed hand pump. A 1.8 m hose and coupler are included, so it can go straight to work on lifting, pressing and maintenance jobs. The cylinder is 247.7 mm high closed and the whole set weighs 14.5 kg.

Features

  • Matched set: cylinder, pump, hose and coupler chosen to work together, ready to use
  • Cylinder: C106C general-purpose cylinder, 9 t, 155.6 mm stroke
  • Pump: P55 single-speed hand pump, 700 bar
  • Effort: about 93 handle strokes to fully extend the cylinder
  • Optional storage box: order as RPS106B for the set supplied in a lockable 350722 storage box

What’s in the box

  • C106C 9 t single-acting cylinder
  • P55 single-speed hand pump
  • 9756E hydraulic hose, 1.8 m
  • 9798 hose half coupler
  • Necessary fittings

Specifications

Cylinder
CylinderC106C
Capacity10 ton (9 t, 98 kN)
Force at 700 bar10.2 t
Stroke155.6 mm
Collapsed height247.7 mm
Extended height403.2 mm
Outside diameter57.2 mm
Bore diameter42.8 mm
Effective area14.4 cm²
Oil capacity225 cm³
ActionSingle-acting
ReturnSpring
Cylinder weight4.3 kg
Pump
PumpP55
TypeSingle-speed hand pump
Oil per stroke2.6 cm³
Max. pressure700 bar
Handle effort66 kg
Reservoir oil capacity902 cm³
Usable oil738 cm³
Oil port3/8 NPTF
Pump weight7.2 kg
Handle strokes to fully extend cylinder93
Hose9756E, 1.8 m
Coupler9798 hose half coupler
Set weight14.5 kg
Part numberRPS106
