EDGE Diffuser Kit with No18 Cup
EDGE

EDGE Diffuser Kit with No18 Cup

£72.50 ex VAT (£87.00 inc VAT)

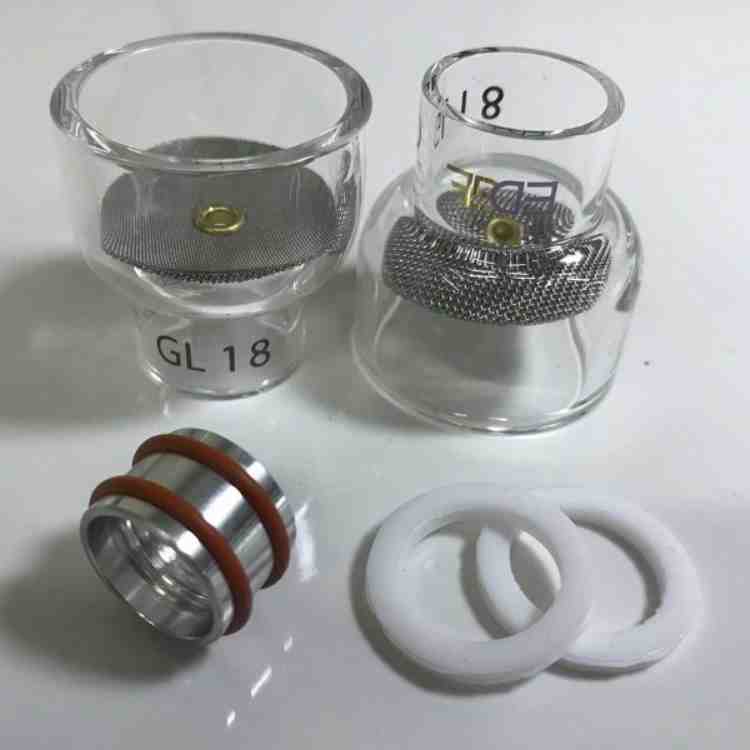

This kit contains the patented EDGE welding cup adapter with double o-ring seal, two high temperature o-ring seals, and
two #18 (28.8mm) glass cups with diffusers.

Available to order – ask us for a lead time

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Free collection from our Scotstoun warehouse
  • Secure card payments
  • Expert advice: 0141 959 5666
  • Trade accounts available – apply online
SKU: GL1718-P18DKIT Category: Brand:

Description

This kit contains the patented EDGE welding cup adapter with double o-ring seal, two high temperature o-ring seals, and two #18 (28.8mm) glass cups with diffusers.

NOTE: Does not include Gas Lens Body or Collets!

  • We recommend DC only, 180 amp unless using pulse settings.
  • Can be used with any size and type electrode.
  • Best used with metals such as Stainless steel, Titanium and Inconel.
  • Aluminum based material should use with #10 or #12 in shorter runs
  • We do not recommend walking the cup with Pyrex glass cup. (This will cause premature failure)
  • We recommend DC only, 180 amp unless using pulse settings.
  • Best used with metals such as: Stainless steel, Titanium, Inconel,Nickel based & thin aluminum based.
  • Recommended use with 1/8, 3/32 and 1/16 (2.4) electrode. 1/16 diffuser must not exceed 90A DC because of potential damage to diffuser.
  • The tungsten can be extended up to 3” out in controlled environment for clearance.
  • We do not recommend walking the Pyrex glass cup. (This will cause premature failure.)
