Description

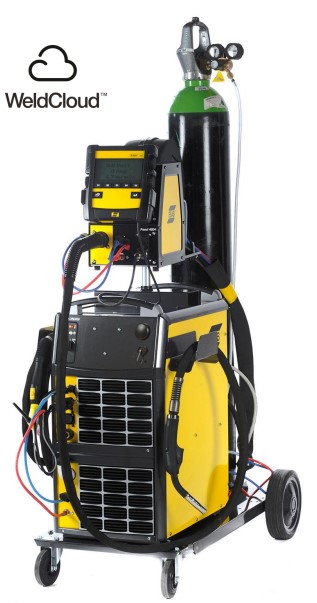

The AristoMig 5000iw/ U5000iw are designed for high-productivity and high-quality welding applications.
Professional TIG DC welding with U5000iw. Additional U5000iw features; high frequency, LiftArc™ striking and TIG pulse-welding with DC.
The Aristo power source integrates fully with ESAB’s industry-leading WeldCloud™ online data management platform via Wi-Fi, mobile cellular or hard-wired Ethernet communication.
Features:
- Advanced pulse functionality SuperPulse™ reduces heat input and minimizes spatter
- Up to 250 pre-programmed synergic lines (U82 Plus)
- Easily transfer weld data between machines and PC by storing data to an USB stick
- QSet™ intelligent welding system
- TrueArcVoltage™ system measures the correct arc voltage at the contact tip together with ESAB torches
The AristoMig can be used in the following industries:
- Automotive
- Transportation
- General Manufacturing
- Heavy Fabrication
- Nuclear & Aerospace
- Pressure Vessels
- Ship/Barge Building
Technical specification
Mains Voltage 3×400, 460V
Number of Phases 3 ph
Supply Frequency 50/60 Hz
Fuse Slow 32 A
Welding Output Mig
At 60% Duty Cycle 500 A / 39 V
At 100% Duty Cycle 400 A / 34 V
Welding Output MMA
At 60% Duty Cycle 500 A / 40 V
At 100% Duty Cycle 400 A / 36 V
Welding Output Tig
At 60% Duty Cycle 500 A / 26 V
At 100% Duty Cycle 400 A / 30 V
Setting Range Mig 16-500 A, 8-60 V
Setting Range MMA 16-500 A
Setting Range Tig DC 4-500 A
Open Circuit Voltage Mig 72-88 V
Open Circuit Voltage Mig VRD 59 V
Open Circuit Voltage MMA 68-80 V
Open Circuit Voltage MMA VRD < 35V
Energy Save Mode 70 W
Rated kVA 25.2
Efficiency at Max Current 87%
Power Factor at Max Current 0.91
Control Voltage 42 V
Dimensions LxWxH 625x394x496 mm
Dimensions LxWxH w/ cooling unit 625x394x775 mm
Weight with /without cooling unit 101 kg / 81 kg
Operating Temperatures -10 to +40 °C
Enclosure Class IP23
Insulation Class H
Application Class S
Approval CE, CSA
Mains Cable 4×6 mm2
Water Cooling Unit
Cooling Capactiy 1.5 kw
Coolant Volume 5.5 l
Max Flow 2.0 l/min
Max Pressure 3.4 bar
Weight 20 kg
Multi Voltage Power Source
Mains Voltage 3×208/230/400/460/476 V
Weight with /without cooling unit 82 kg / 62 kg
Dimensions LxWxH 621x389x266 mm
