Description

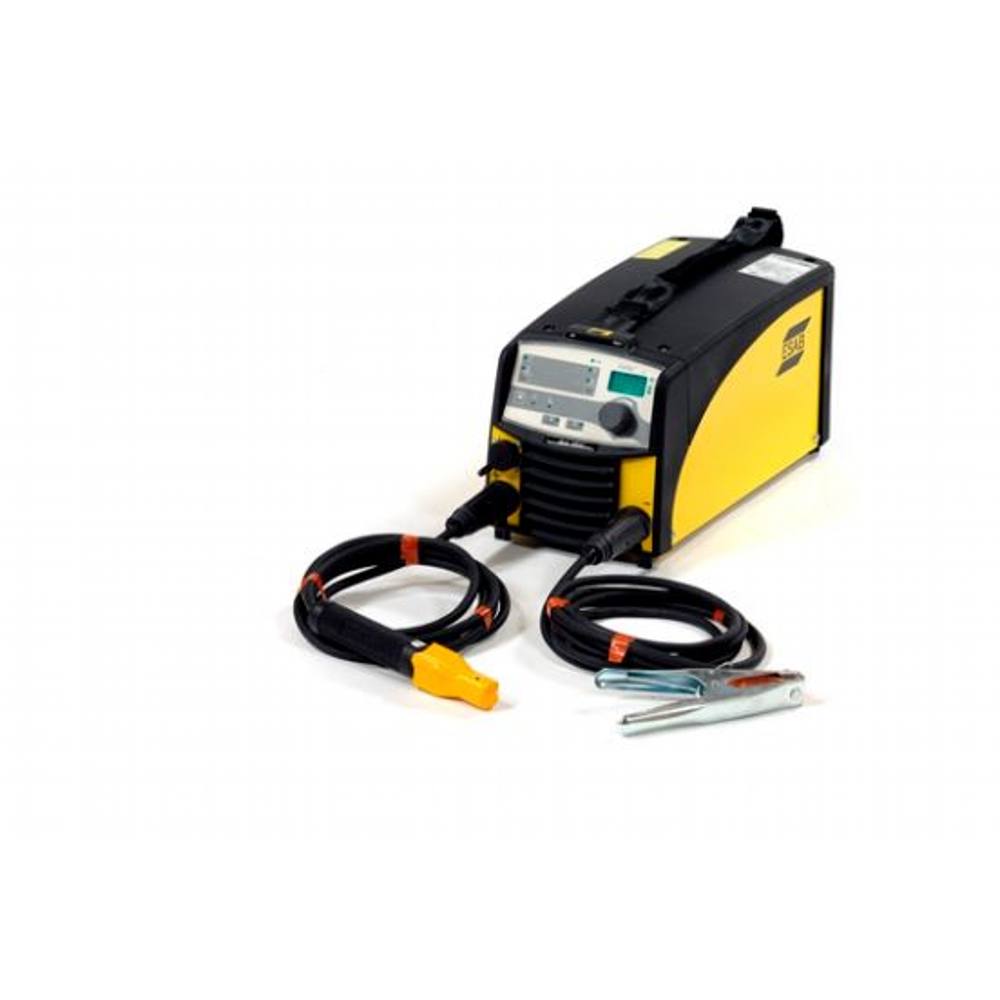

The Caddy® Arc 151i/201i are 230 V single-phase power sources
equipped with a PFC circuit making it possible to use the full
range of the machine on a 16 A fuse. The PFC also protects the
machines against fluctuating mains voltage and makes it safer to
use with a generator. Caddy® Arc 151i/201i can operate with
extra long mains cables, over 100 m, giving you a very larger
working radius.
Features
- Durable and impact resistant design with OKC 50 cable connectors
- Easy to operate digital display for settings
- Adjustable hot-start and arc force for accurate weld setting
- ArcPlus™ II regulator for better welding characteristics. Higher weld quality with less after treatment
- Two memories for storing of settings
- Remote control possibility
- Can operate with extra long mains cables, over 100 m
- Caddy® Arc 151i welds most electrodes from 1,6 – 3,2 mm and some 4 mm electrodes
- Caddy® Arc 201i welds most electrodes from 1,6 – 4 mm
- IP 23 – designed for outdoor use making it safe on all work sites
Details
The Caddy® name has always been synonymous with
robust and durable welding tools designed for the
professional welder. Introducing the fifth generation of
portable welding equipment from ESAB the latest
Caddy® machines have over 30 years experience in
inverter technology built in.
Technical specification
Dimensions
| Dimensions | 418 x 188 x 208 mm |
| Description or Qualifier | Caddy Arc 151i / 201i |
Weight
| Caddy Arc 151i: 7.9kg |
Power Specifications
| Model | Caddy Arc 151i | Caddy Arc 201i |
| Power Factor at Maximum Current | 0.99 | 0.99 |
| Open Circuit Voltage | 72 VAC | 72 VAC |
| Protection Class | IP 23 | IP 23 |
Welding Output
| Model | Caddy Arc 151i | Caddy Arc 201i | |
| Welding Output | 150 A/26VDC @ 25% 100 A/24VDC @ 60% 90 A/23.6VDC @ 100% 150 A/16VDC @ 25% 120 A/14.8VDC @ 60% 110 A/14.4VDC @ 100% |
||
| Stick (MMA) | 150 A/26VDC @ 25% 100 A/24VDC @ 60% 90 A/23.6VDC @ 100% |
||
| TIG (GTAW) | 150 A/16VDC @ 25% 120 A/14.8VDC @ 60% 110 A/14.4VDC @ 100% |
Input Voltage
| Model | Caddy Arc 151i | Caddy Arc 201i |
| Voltage | 230 V | 230 V |
| Phase | 1 | 1 |
| Frequency | 50/60 Hz | 50/60 Hz |
Specifications
| MCableX | 3×2.5 |
