Description

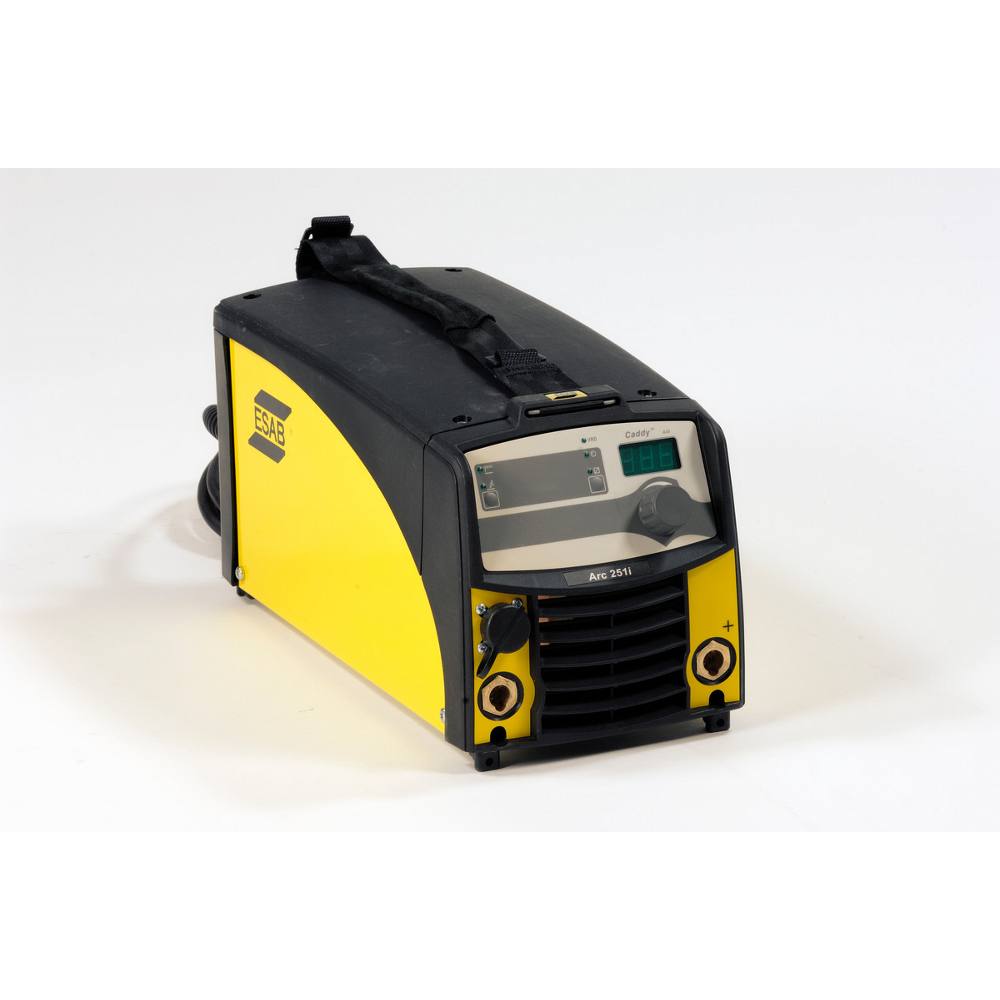

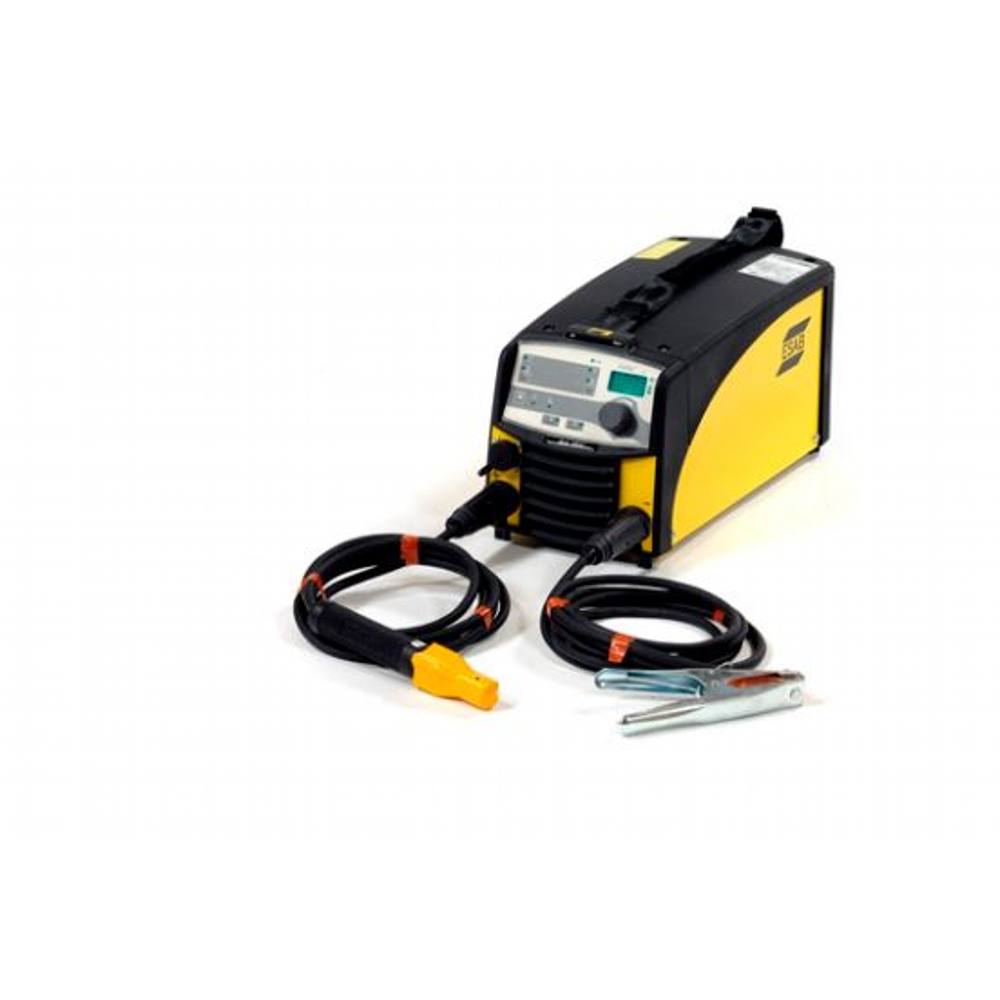

Not only is Caddy® Arc 251i small and of low weight. Thanks to its
intelligent, compact design it is easy to take along to different
indoor and outdoor worksites and also to tuck away when not
used, making it handy both in the workshop and on the move. An
optional shoulder strap with a cable holder solution facilitates
transportation.
Caddy® Arc 251i has three phase mains connection and works
equally as well when powered by a portable generator. *
Thanks to the built-in PFC circuit, Caddy® Arc 251i can operate
with extra long mains cables, over 100 m, giving the welder a very
large working radius.
Features
- Compact and portable three phase inverter for MMA and TIG welding with electronically controlled LiveTig™ start.
- Durable and impact resistant design with OKC 50 cable connectors.
- Easy to operate. Digital display for settings.
- ArcPlus™ II regulator for better welding characteristics. Higher weld quality with less after treatment.
- Adjustable hot-start and arc force for accurate weld setting (A34).
- Two memories for storing of settings (A34).
- Electrode type selector for optimised performance (A34).
- Remote control possibility.
- Can operate with extra long mains cables, over 100 m, thanks to the built in PFC circuit.
- Welds all electrodes from Ř 1,6 – 5 mm; basic, rutile and cellulosic.
- IP 23 – designed for outdoor use making it safe on all work sites.
Applications
•Professional welding tool
• In and outdoor installation on site
• In and outdoor repair and maintenance on site
• In and outdoor fabrication
Details
The Caddy® name has always been synonymous with
robust and durable welding tools designed for the
professional welder. Introducing the fifth generation of
portable welding equipment from ESAB the latest
Caddy® machines have over 30 years experience in
inverter technology built in.
Technical specification
Dimensions
| Dimensions | 418 x 188 x 208 mm |
| Description or Qualifier | Caddy Arc 251i |
Power Specifications
| Model | Caddy Arc 251i |
| Open Circuit Voltage | 65/>35 VDC |
| Power Factor at Maximum Current | 0.94 |
| Protection Class | IP 23 |
Welding Output
| Model | Caddy Arc 251i | |
| Welding Output | 250 A/30VDC @ 30% 190 A/27.6VDC @ 60% 150 A/26VDC @ 100% 250 A/20VDC @ 30% 190 A/17.6VDC @ 60% 150 A/16VDC @ 100% |
|
| Stick (MMA) | 250 A/30VDC @ 30% 190 A/27.6VDC @ 60% 150 A/26VDC @ 100% |
|
| TIG (GTAW) | 250 A/20VDC @ 30% 190 A/17.6VDC @ 60% 150 A/16VDC @ 100% |
Input Voltage
| Frequency | 50/60 Hz |
| Model | Caddy Arc 251i |
| Phase | 3 |
| Voltage | 400 V |
Specifications
| MCableX | 4×1.5 |
