Description

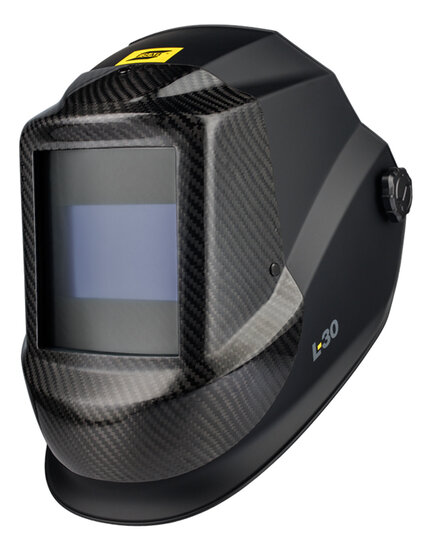

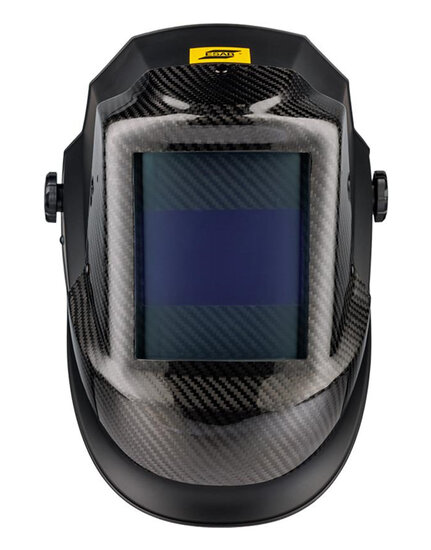

Experience precision and protection with the L-30 advanced handheld laser welding helmet. Featuring an EN 207 certified filter and shell, it offers reliable defense against high-intensity laser radiation. With five adjustable shade settings (2.5–5) and a large 100 x 60 mm (3.94 x 2.36 in.) viewing area, you’ll get clear, comfortable visibility for every task.
The lightweight carbon fiber front shell provides all-day comfort with uncompromised safety, while the intuitive digital interface makes shade adjustments fast and easy. Built for both precision work and tough environments, this helmet sets a new standard in laser welding protection.
Technical specification
Applications
- Portable laser welding
Key Features
- Full EN 207 certifications for optical filter and shell
- Permanent laser protection
- Adjustable darkening in 5 steps
- Carbon fiber front shell
- Carbon fiber filter holder
- Multi-point adjustable headgear
- Suitable for wavelengths from 900 to 1100 nm
Specifications
- Viewing Area: 100 x 60 mm (3.93 x 2.36 in)

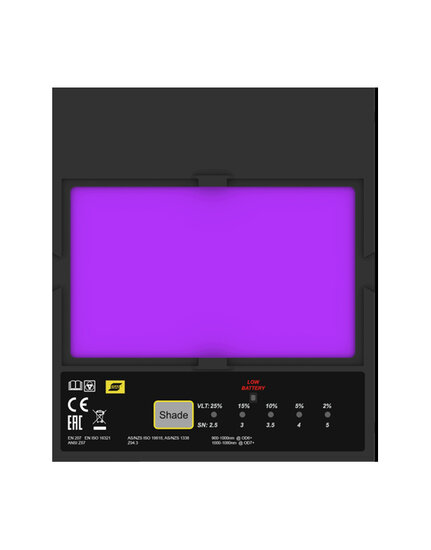

- Shade Adjustment: DIN 2.5 (VLT 25%); 3 (VLT 15%); 3.5 (VLT 10%); 4 (VLT 5%); 5 (VLT 2%)
- Power Supply: Solar cell, replaceable battery (1×CR2450 lithium). Low battery warning.
- Filter Certification: EN ISO 16321 ESAB W2.5/3/3.5/4/5 V2; EN 207 900–1080 D LB7 IR LB8 CE; AS/NZS ESAB W2.5/3/3.5/4/5 S 900–1080 OD7 C5 PS3 ISO 19818-1 ESAB
- Shell Certification: EN ISO 16321 ESAB W15; EN 207 900–1100 nm D LB7 IR LB8 CE; AS/NZS 1337.1 B 1000–1100 OD7 C5 PS3 ISO 19818-1 ESAB E
- Warranty: 2 years
- Weight: 648 g (1.4 lbs)
Ordering Information
- L-30 Laser Welding Helmet: 0700700100
Includes: 1 complete L-30 laser welding helmet; 2 spare outer lenses; 1 storage bag
Wear and Spare Parts
- Outer protective lens L-30 – 0700700102
- Inner protective lens L-30 – 0700700103
- Helmet L-30 – 0700700101
