Description

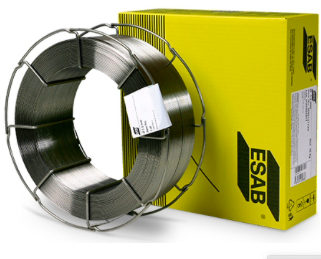

A positional rutile cored wire for use with M21 or C1 gas, providing very good toughness down to -40°C.
The 1.2mm diameter is all-positional except vertical down.
Technical specification
Typical Charpy V-Notch Properties
| As Welded | |
| Impact Value | 92 ft-lb |
| Impact Value | 124 J |
| Shielding Gas | M21 shielding gas EN |
| Testing Temperature | -40 °F |
| Testing Temperature | -40 °C |
Typical Tensile Properties
| Condition | Elongation | Shielding Gas | Tensile Strength | Yield Strength |
| As Welded | 26 % | M21 shielding gas EN | 613 MPa (89 ksi) | 544 MPa (79 ksi) |
Deposition Data
| Current | Deposition Rate | Diameter | Voltage | Wire Feed Speed |
| 110-300 A | 1.3-5.8 kg/h (2.9-12. lb/h) | 1.2 mm (0.045 in.) | 21-32 V | 3.2-14.5 m/min (126-571 in./min) |
Classifications
| Weld Metal | SFA/AWS A5.29 : E81T1-Ni1M EN ISO 17632-A : T 46 3 1Ni P C1 2 H5 EN ISO 17632-A : T 46 4 1Ni P M21 2 H5 |
Approvals
| Approvals | ABS 3YSA H5 (M21) ABS 3YSA H5 (C1) BV SA3YM (M21) BV SA3YM HH (C1) CE EN 13479 DB 42.039.26 (M21 and C1) DNV-GL IV Y46MS H5 (M21) LR 4Y46S H5 (M21) LR 3YS H5 (C1) NAKS/HAKC 1.2 mm RINA 4Y40 S H5 (M21) (1.2mm) : RS 4YMS H5 (M21) (1.6mm) : RS 4YMS H10 (M21) VdTÜV 05198 |
| Approvals are based on factory location. Please contact ESAB for more information. |
Consumable Characteristics
| Alloy Type | Low alloy steel (1% Ni) |
| Diffusible Hydrogen | < 5 ml/100g (M21 gas) < 4 ml/100g (C1 gas) |
| Welding Current | DC+ |
Typical Weld Metal Analysis %
| Typical Weld Metal Analysis % | ||||||||||||||
| C | Mn | Ni | Si | |||||||||||
| M21 shielding gas | ||||||||||||||
| 0.05 % | 1.15 % | 0.96 % | 0.34 % | |||||||||||
