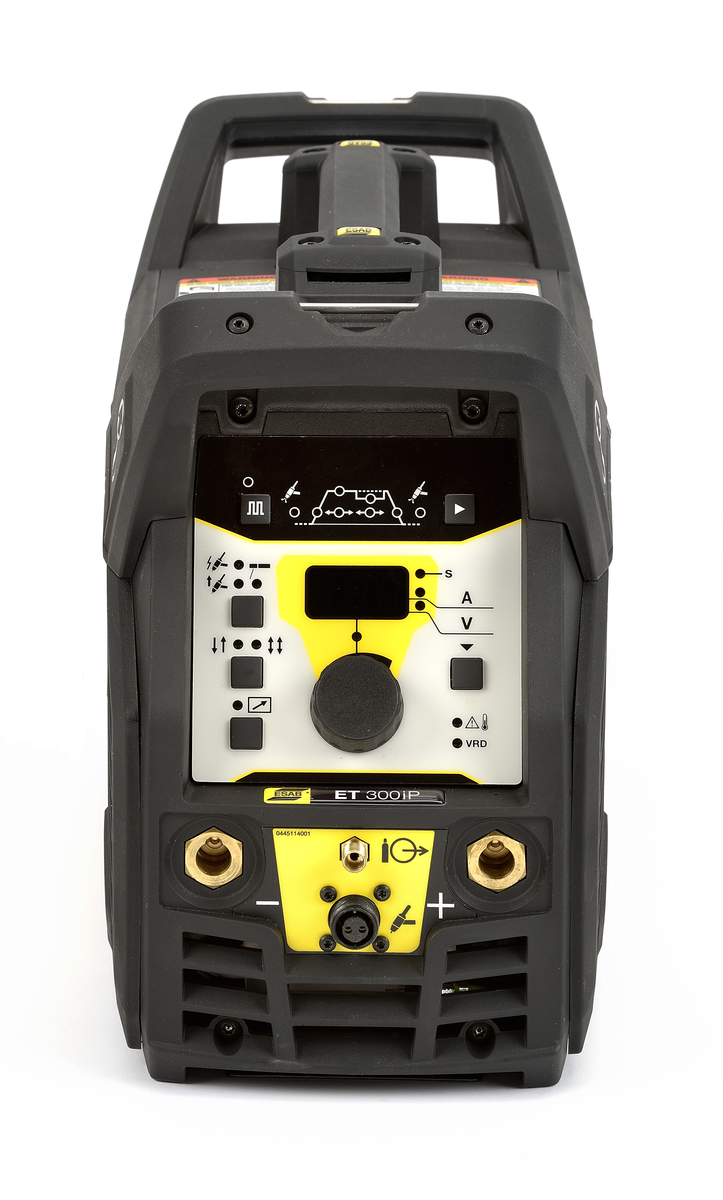

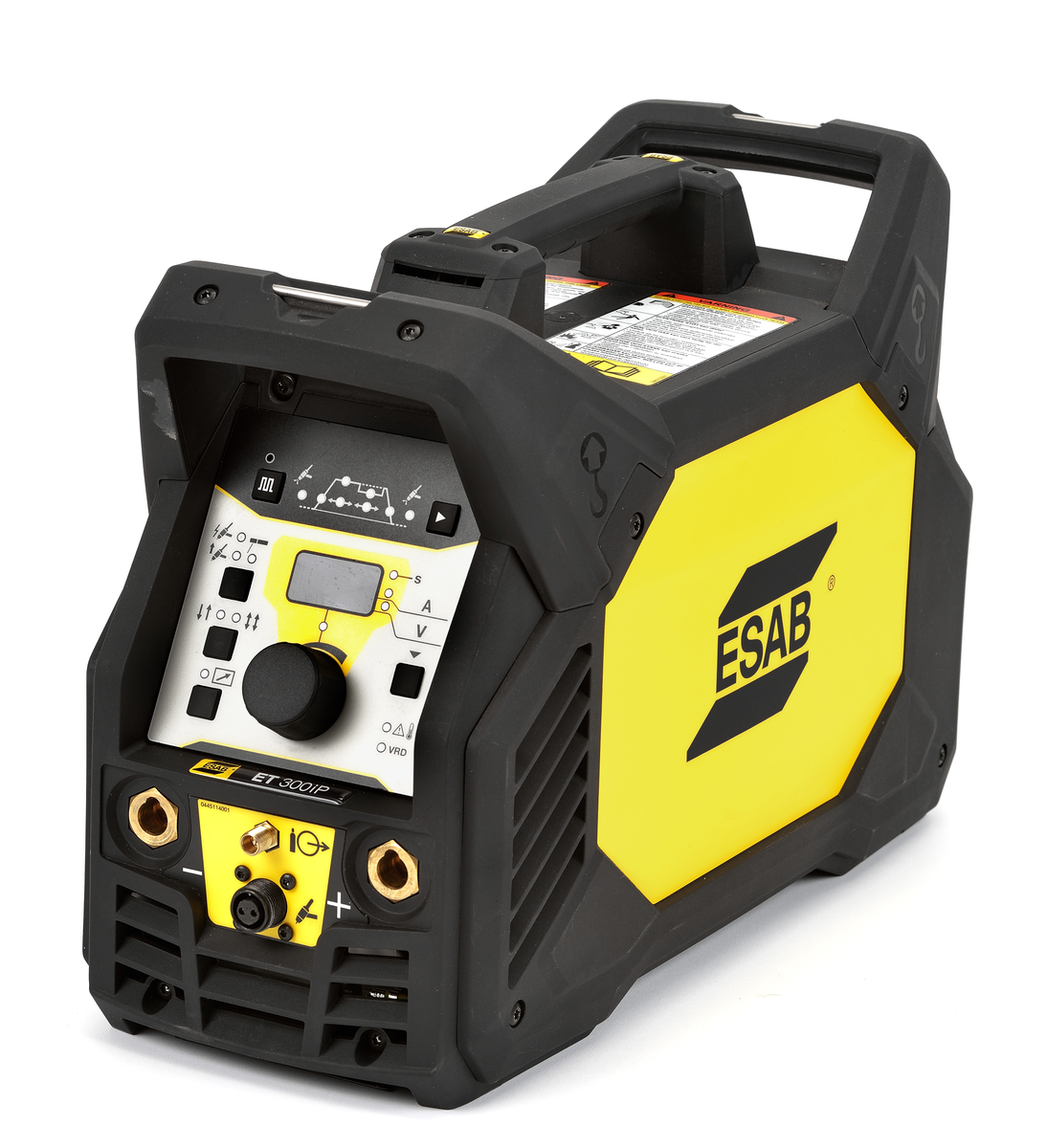

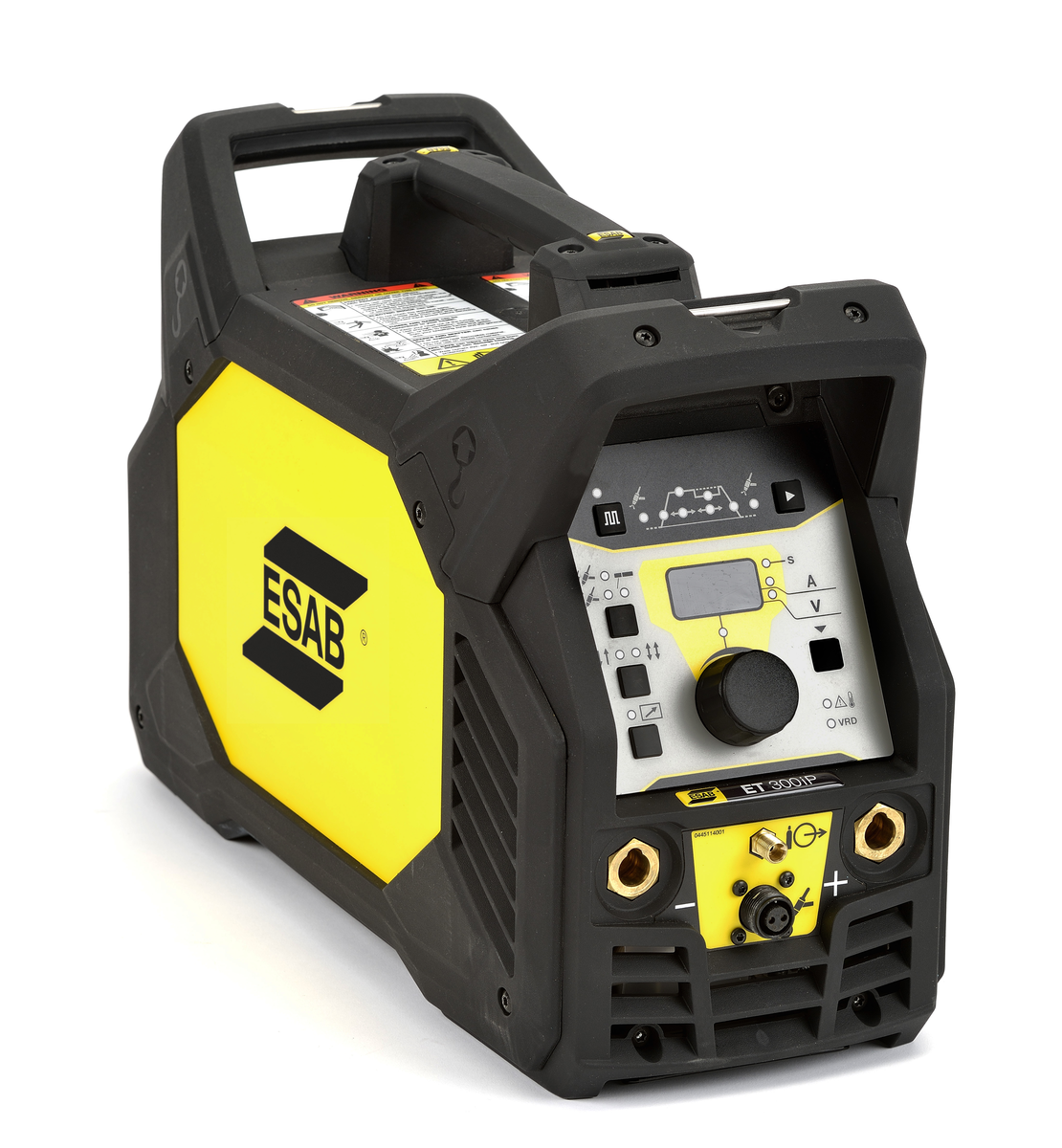

ESAB Renegade ET 300iP Machine Only

£2,795.00 ex VAT (£3,354.00 inc VAT)

ESAB Renegade ET 300iP HF TIG and MMA inverter, 300 A at 40%, 3-phase 230-480V or single-phase 230V, with pulse. Machine only.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982

Available to order – usually despatched in 2–5 working days

Need it by a certain date?

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: 0445100920 Categories: , Brand:

Description

Max current300 A
Duty cycle300 A at 40%
Input230-480V 3-ph / 230V 1-ph
Weight16.9 kg

The Renegade ET 300iP is an HF TIG and MMA inverter with an exceptional power-to-weight ratio: 300 A at 40% from a 16.9 kg machine you can carry to any job.

It’s at home in shipyards, pipe and civil construction, mining, steel erection and heavy fabrication. Supplied machine only; ask us for a package with a TIG torch, or the tool-less water cooler and trolley.

Features

  • Huge power for its size: 300 A in a compact, rugged composite case.
  • Any supply: automatic voltage sensing, 230-480V 3-phase or 230V single-phase, with cables up to 100 m.
  • Built for extremes: works in ambient temperatures up to +55 °C.
  • Quick to set: clear, easy-to-read panel.
  • Dual-current trigger: switch between two current levels to control heat input.
  • Modular: tool-less connection to water cooler and trolley.
  • Pulse: for thin sheet applications.

Specifications

TIG output
Duty cycle300 A at 40%, 250 A at 60%, 200 A at 100%
Current range5-300 A
MMA output
Duty cycle300 A at 40%, 250 A at 60%, 200 A at 100%
Open-circuit voltage48 V (33 V with VRD)
Electrical
Mains supply3-phase 230-480V ±10% or 1-phase 230V ±10%, 50/60 Hz
Fuse (slow)16 A at 400V
Power factor0.96
PlugCEE 16 A, 3 m mains cable
Physical
Dimensions (L × W × H)460 × 200 × 320 mm
Weight16.9 kg (26.9 kg with cooler)
ProtectionIP23
