Description

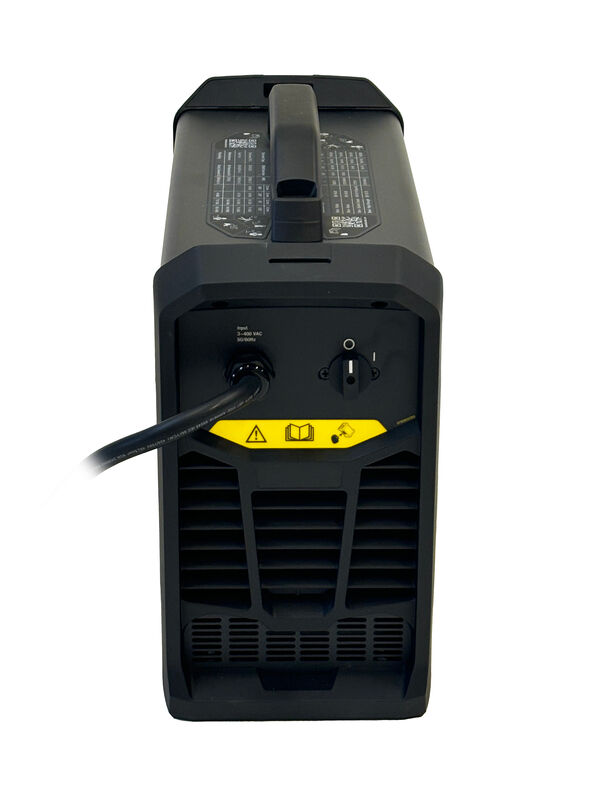

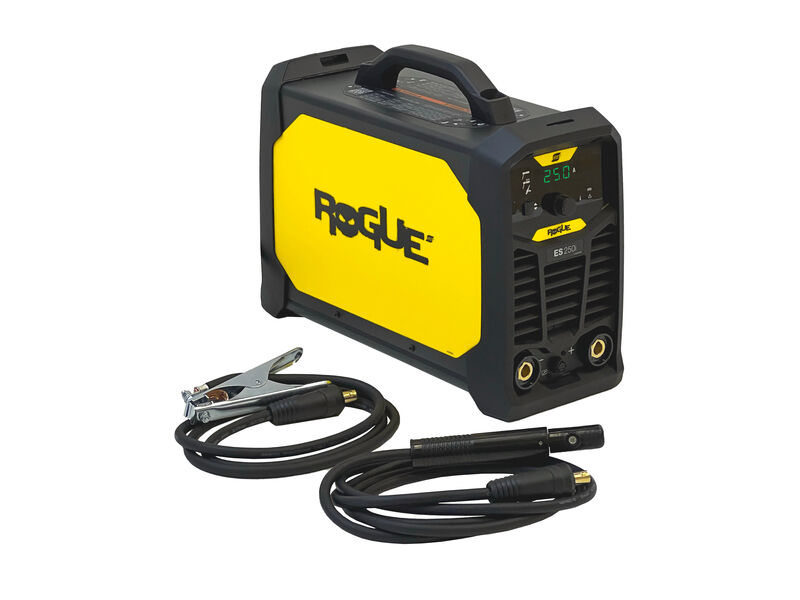

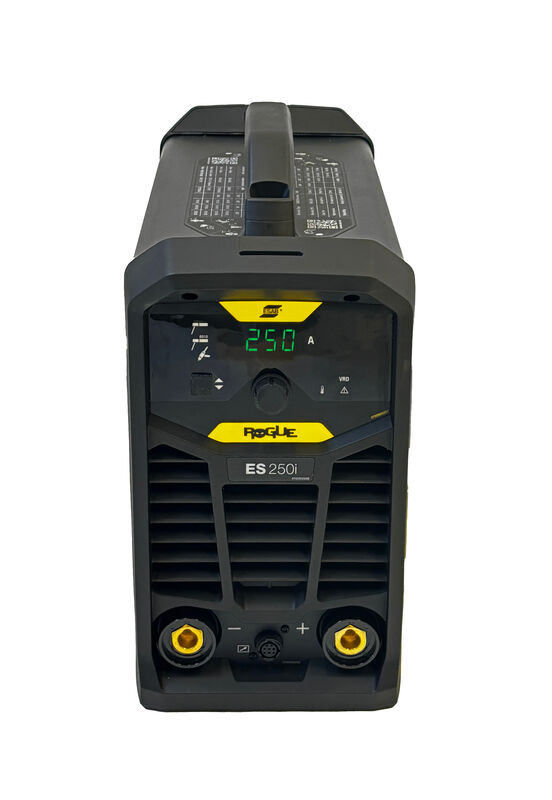

The Rogue ES 250i is a welding power source intended for welding with coated electrodes MMA (including cellulosic electrode) and Live TIG welding.
With a maximum output capacity of 250 Amps combined with high duty cycle, Rogue ES 250i provides power to tackle a wide range of welding tasks, from repair and maintenance to heavy-duty fabrication projects.
Machine features multiple adjustments, such as Hot Start and Arc Force to tailor arc for desired preference and electrode type. Special 6010 mode, brings extra power to control cellulosic electrodes for a premium quality results.
The compact dimensions of the whole ESAB Rogue line make it convenient to move between workstations or job sites, helping you to maximize efficiency and productivity. Built with durability in mind, they feature a rugged construction that withstands the rigors of heavy-duty use. From the sturdy casing to the robust internal components, every aspect is engineered for long-lasting reliability in demanding working conditions.
Technical specification
Delivery Includes:
Rogue ES 250i power source, welding cable 3m with electrode holder, work lead 3 m, input cable (no plug) 2.5 m
| Input Voltage | 400 V ±15 %, 3, 50/60 Hz |
| GTAW (TIG) Welding Output | 250 A20.0 V @ 40 % Duty Cycle 204 A18.1 V @ 60 % Duty Cycle 158 A16.3 V @ 100 % Duty Cycle |
| SMAW/MMA (Stick) Welding Output | 250 A30.0 V @ 40 % Duty Cycle 204 A28.1 V @ 60 % Duty Cycle 158 A26.3 V @ 100 % Duty Cycle |
| Open Circuit Voltage | 13.7 VDC |
| Power Factor at Maximum Current | 0.85 |
| Efficiency at Maximum Current | 82 % 86 % |
| Operating Temp | -10 to +40 °C |
| rated kVA | 10 kVA |
| Enclosure Class | IP23S |
| Certification | CE |
| Dimensions, L x W x H | 477 x 188 x 360 mm |
| Weight | 14.3 kg |
| Setting Range | 20.4-30 V (10-250 A) 10.4-20 V (10-250 A) |
