Description

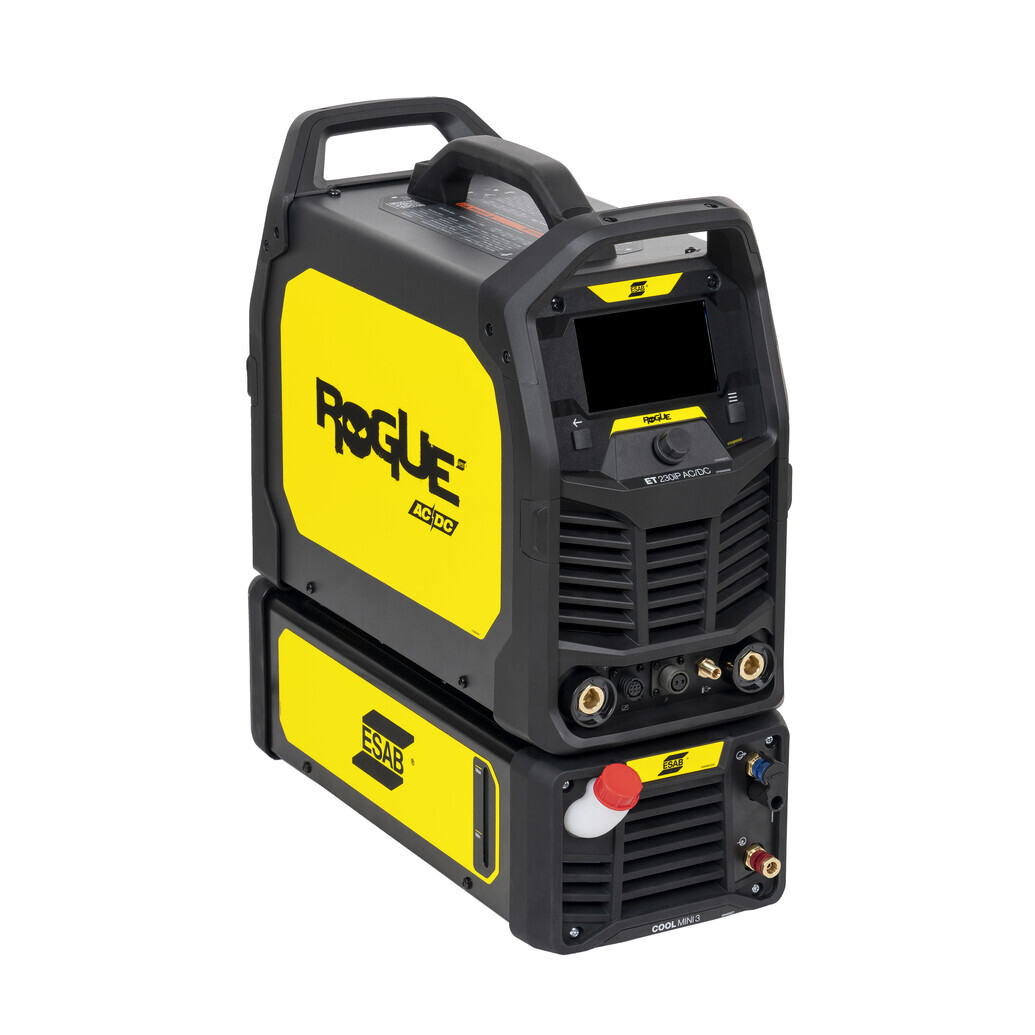

Rogue ET 230iP AC/DC is a portable, high quality, professional AC/DC TIG welder with extended parameter options to excel at everyday aluminium, stainless steel and carbon steel welding.
An intuitive graphical user interface with a 5-inch colour display brings new functionality for quick and easy adjustments. The machine can tackle a wide range of thicknesses including very thin plates.
Customizable waveshapes (square, soft square, sinusoidal, triangle) enables optimized heat input for high penetration on thicker metals and low distortion on thin sheets. Pulsing capabilities in both DC and AC TIG offer enhanced weld puddle control allowing the welder to further tailor the arc for multiple applications. TIG arc starts are crafted for optimum performance based on selected tungsten electrode diameter and type.
Durable housing design combines robustness and functionality with multiple lift points for easy manoeuvrability in both workshop and field applications.
Technical specification

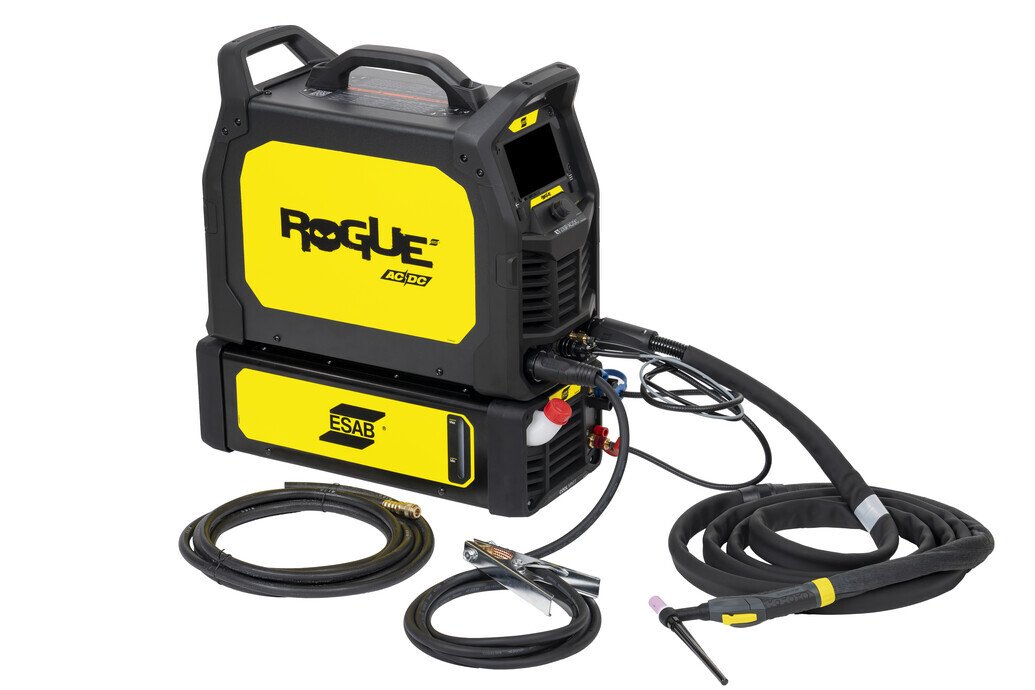

Delivery Includes:
- Rogue ET 230iP ACDC power source
- Cooling Unit CoolMini 3
- Earth Lead 3m
- ExeorTIG SR 21 torch 4 m
- Gas Hose 4m
| Input Voltage | 115/230 V 15 %, 1 Φ, 50/60 Hz |
| Open Circuit Voltage | 68 / 10 (VRD) VDC |
| Power Factor at Maximum Current | 99% |
| Fuse Slow | 16 A |
| Energy Save Mode | <30 W |
| Supply Plug | Schuko 16A |
| Operating Temp | -10 – +40 °C |
| rated kVA | 6 kVA (230) 3.3 kVA (115) |
| Enclosure Class | IP23S |
| Dimensions, L x W x H | 460 x 210 x 380 mm |
| Weight | 25 kg |
| Setting Range | 10.6-19.2 V (15-230 A) 20.4-23.6 V (10-90 A) 20.4-27.2 V (10-180 A) 10.2-19.2 V (5-230 A) 10.2-15 V (5-125 A) 10.6-15 V (15-125 A) |
