Description

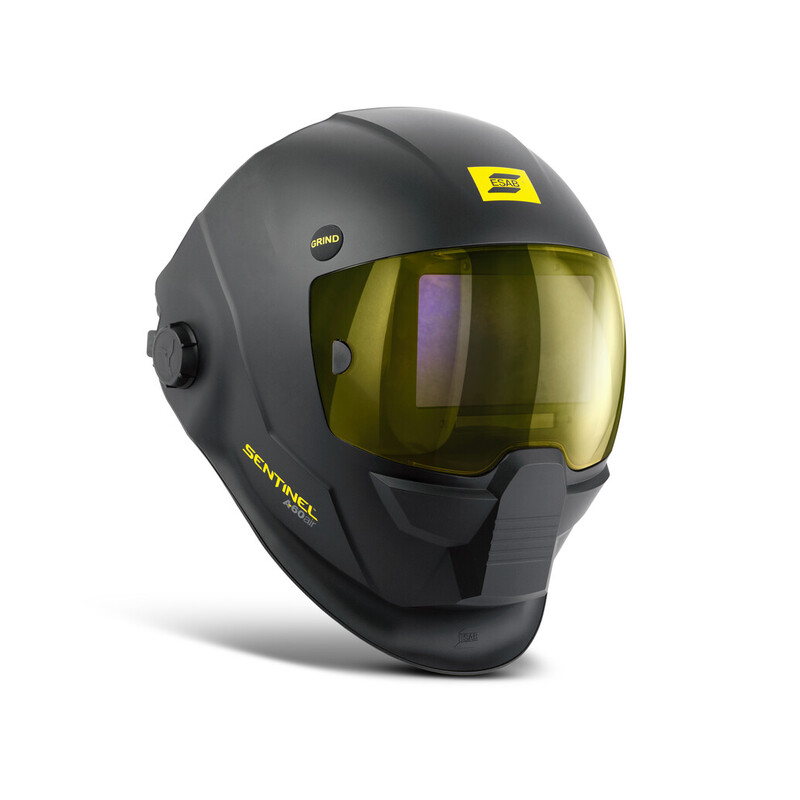

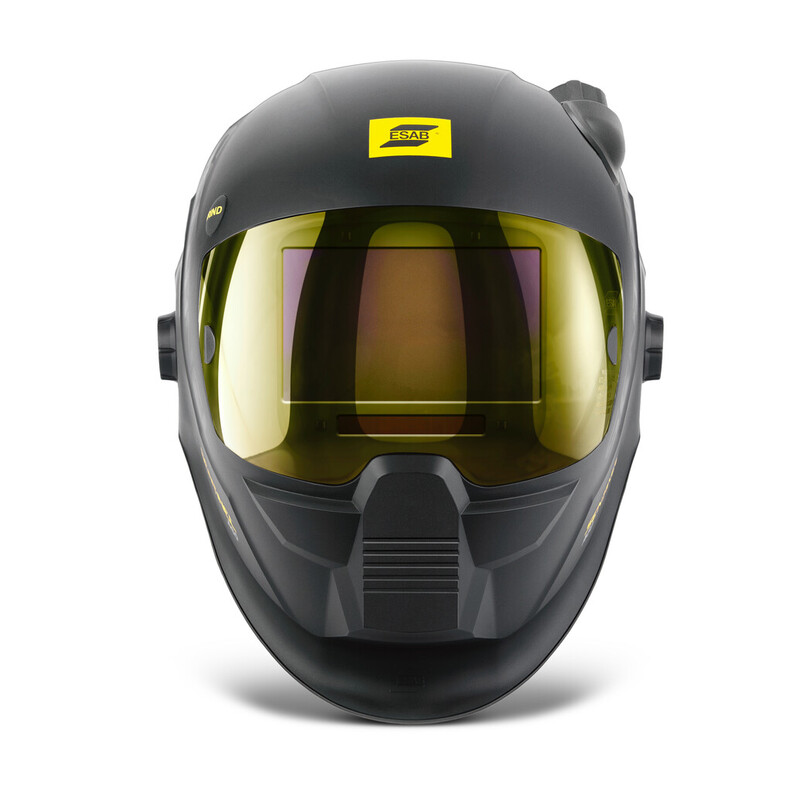

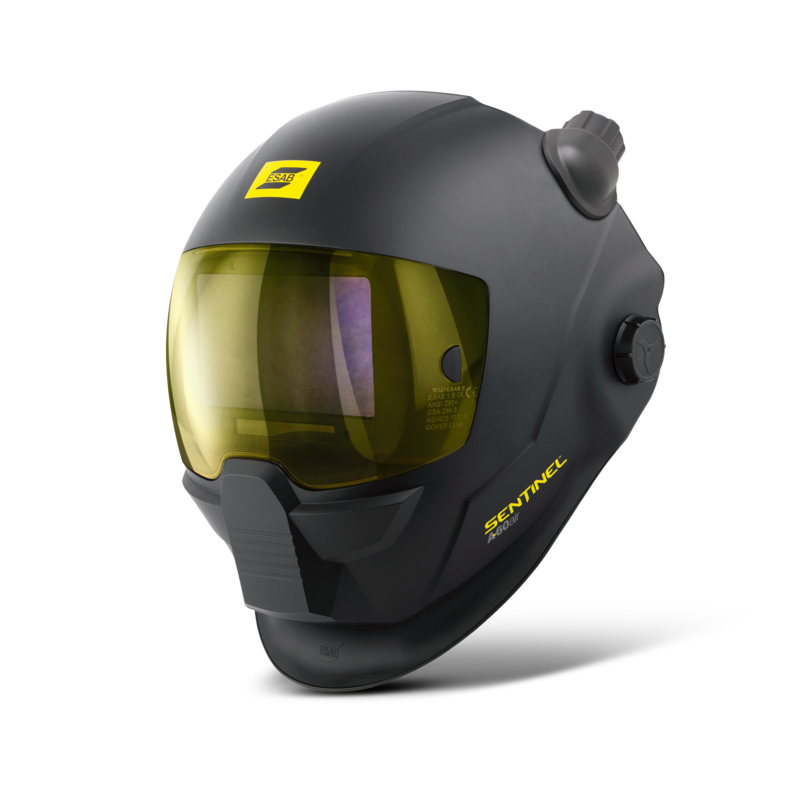

The Sentinel A60 Air welding helmet builds on the advancements of the standard Sentinel A60, taking your welding to the next level. A large panoramic view and perfect 1/1/1/1 EN optical clarity provide an even wider view of the weld pool without any distortion.

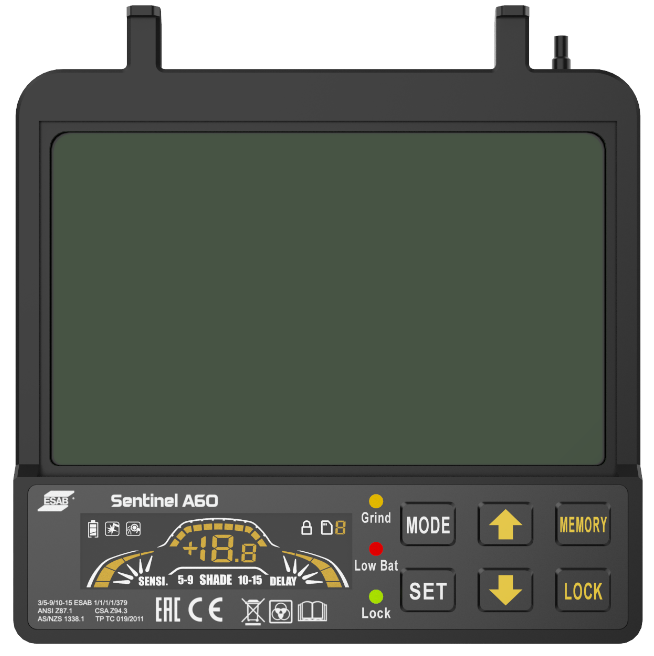

The reengineered auto-darkening filter (ADF) features new OpTCS™ broad-spectrum light control technology from ESAB, giving you an enhanced True Colour view with reduced eye fatigue for the most demanding days on the job. New 0.5 increment shade adjustments give you more precise control of your view.
The shell retains the signature Sentinel design, and incorporates a new air diffuser screen. A fully-adjustable Halo™ headgear, and external grind mode button complete the most comfortable, highest performance helmet ESAB has ever produced.
Technical specification
- ADF viewing area: 118 x 71 mm (4.65 x 2.80 in.) and intuitive internal ADF controls including sensitivity and delay
- Shade range: DIN 3/5–13, adjustable in 0.5 increments and ADF shade lock setting
- ESAB OpTCS True Colour Lens Technology
- On-board memory for up to 9 settings
- Arc sensors: 4
- Fast switching time of 0.08 millisecond
- Replaceable CR2450 battery
- Low battery, grind mode and shade lock LEDs
Suitable For:
- Grinding
- Oxy-Fuel Cutting
- Plasma Cutting
- GMAW (MIG/MAG)
- GTAW (TIG)
- PAW – Plasma Arc Welding
- SMAW/MMA (Stick)
| Specifications | |
|---|---|
| Certification & Standards | CE: EN175; EN379; EN166 CSA: Z94.3 | AS/NZS 1338.1 | ISO 16321 +TIG |EN 12941 TH3 (with EPR-X1 PAPR) ANSI: Z87.1 |
| Weight | 860 g |
Certified only for use with EPR-X1 (0700000900) and ESAB PAPR (0700002300; 0700002301) PAPR systems
