Fronius Ignis B 150 Battery Welder MMA Set 750W (With 110V ActiveCharger)

£3,754.90 ex VAT (£4,505.88 inc VAT)

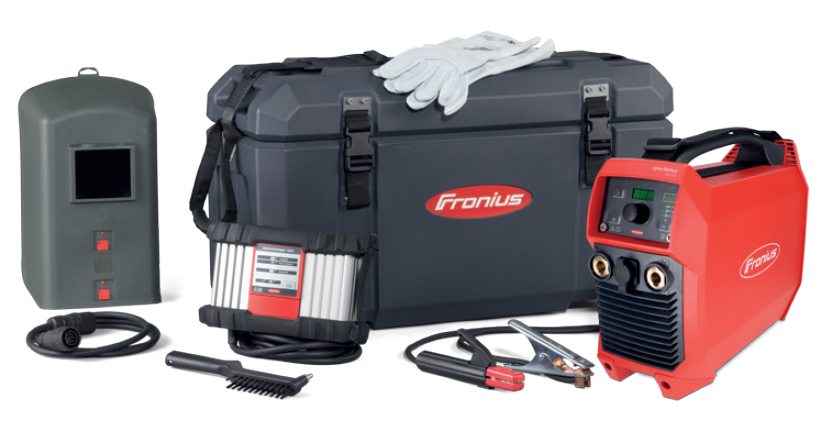

Fronius Ignis Battery 150 MMA set with 110V ActiveCharger 1000, electrode holder, earth cable, slag hammer and wheeled ToolCase 85. Off-grid welding, no mains needed.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982

Available to order – usually despatched in 2–5 working days

Need it by a certain date?

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: 4.075.204.851 Category: Brand:

Product video

Video from YouTube: Ignis Battery | Independent Welding, Anywhere

Description

Max current150 A
Battery750 Wh
Electrodes per chargeup to 31 × 2.5 mm
Weight12 kg

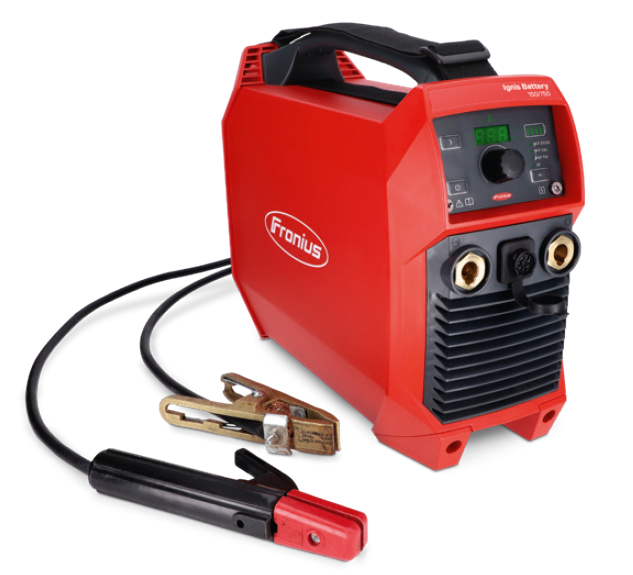

The Ignis Battery is a rechargeable MMA welder that needs no mains connection and no generator. One charge runs up to 31 × 2.5 mm or 12 × 3.2 mm electrodes with no loss of welding power or arc quality.

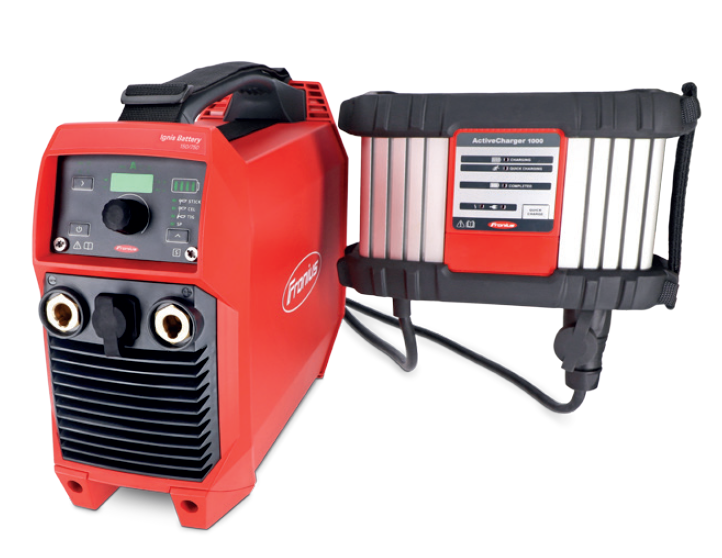

It’s ideal for exposed installations, construction sites and remote repairs. This set comes with the 110V ActiveCharger 1000 and is packed in the wheeled ToolCase 85. TIG DC is built in too: just add a TIG torch.

Features

  • No mains needed: a built-in 750 Wh lithium-ion battery powers MMA and TIG DC welding with no generator or cable run.
  • Up to 31 electrodes per charge: 31 × 2.5 mm or 12 × 3.2 mm, or around 30 minutes of TIG at 100 A.
  • All electrode types: rutile, basic and cellulose.
  • Three ways to run: battery only, hybrid with a small 2 kVA generator, or straight from the mains.
  • Fast charging: 80% in 40 minutes, full in 60 minutes; two electrodes’ worth after just 5 minutes.
  • Built for outdoors: 12 kg machine, stainless steel dust filter, IP23.

What’s in the box

  • Ignis Battery 150 power source with 750 Wh battery
  • ActiveCharger 1000, 110V
  • Electrode holder, 25 mm², 4 m
  • Earth cable 25 mm², 4 m
  • Slag hammer
  • ToolCase 85 wheeled case

Specifications

Welding output
Current rangeMMA 10-150 A, TIG DC 3-150 A
MMA duty cycle (hybrid, 40 °C)150 A at 12%, 100 A at 25%, 40 A at 100%
TIG duty cycle (hybrid, 40 °C)150 A at 25%, 100 A at 50%, 65 A at 100%
Open-circuit voltage91 V (14 V reduced)
Battery
TypeLithium-ion, 84 cells
Capacity750 Wh
Nominal voltage50.4 V
Quick charge80% in 40 min, 100% in 60 min
Normal charge80% in 55 min, 100% in 85 min
Physical
Dimensions (L × W × H)435 × 160 × 310 mm
Machine weightapprox. 12 kg (without charger)
ProtectionIP23
ApprovalsCE, S, UKCA
