Description
The TransSteel 2200 is a compact, 3-in-1 solution. It is the first single-phase inverter power source from Fronious that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device.
The TransSteel 2200 is characterised by the intelligent design on the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market.
NO COMPROMISES. TRANSSTEEL MULTIPROCESS.
ONE DEVICE – FOR ALL MANUAL WELDING APPLICATIONS
Combining MIG/MAG, TIG, and electrode welding in one device means you no longer have to purchase any other power sources. There is absolutely no difference in the welding performance of the respective process compared with a dedicated device.
118 CHARACTERISTICS*
- Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, self-shielded wire
- 0.8 – 1.2 mm wire diameter
-
Eight different gas mixtures
READY TO WELD IN THREE STEPS

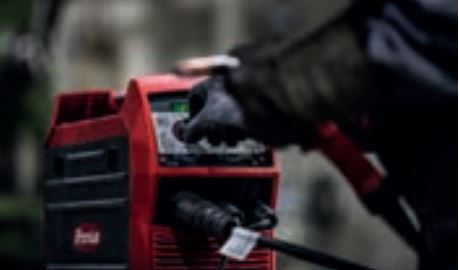

The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.
70% LESS REWORK, 30% FASTER WELDING
The TransSteel 2200 is a compact, 3-in-1 solution. It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device. The TransSteel 2200 is characterised by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market.
ANTI-STICK FUNCTION PREVENTS STICKING OF THE ELECTRODE
If a short circuit occurs (electrode sticking during electrode welding), the welding process is switched off immediately. This prevents electrode burn-out and/or serious weld seam faults.
HOT START FUNCTION WHEN IGNITING THE ARC
In order to make the electrode easier to ignite, the current is increased for a split second during ignition on the power source.
ARC-FORCE DYNAMIC SEAM RIPPLING FOR ALUMINUM ALLOYS
If basic electrodes are welded with coarse droplet material transfer at a low current (underloaded), there is a risk of sticking. To rule this out, more current is supplied for fractions of a second just before sticking. The electrode burns free, preventing sticking.
THREE PROCESSES, ONE POWER SOURCE
/ MIG/MAG, TIG and MMA welding
/ No compromises with the individual welding processes
/ Rapid switching between the processes

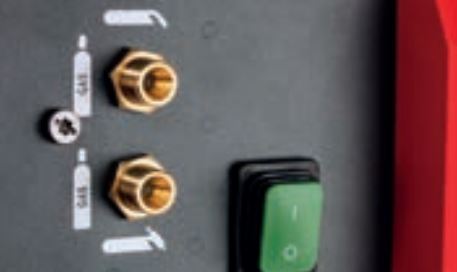

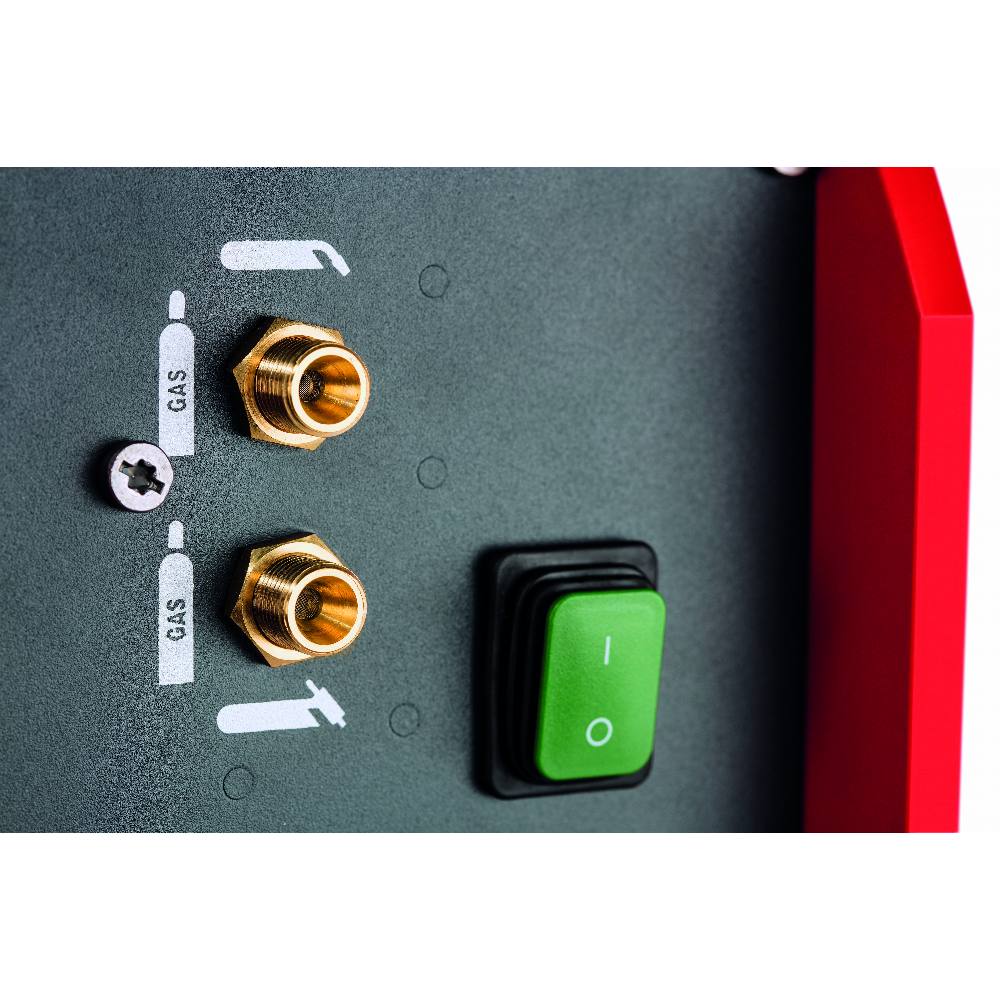

/ Easy process switchover thanks to an additional gas solenoid valve on the rear
STATIONARY AND PORTABLE

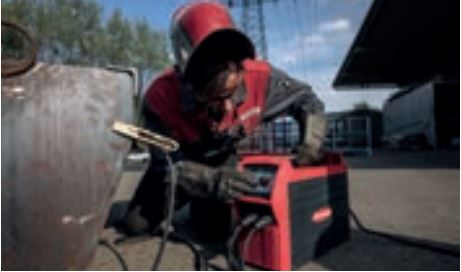

/ Suitable for workshops, construction sites and assembly work
/ Easy to move – 15 kg
/ Carry handle plus an optional carrying strap
/ Skid runners on the sides
/ Compensation of mains voltage fluctuations in long mains leads
Details
NO MATTER WHAT THE WELDING TASK – MIG/MAG, TIG AND ELECTRODE WELDING WITH JUST ONE DEVICE.
Technical specification

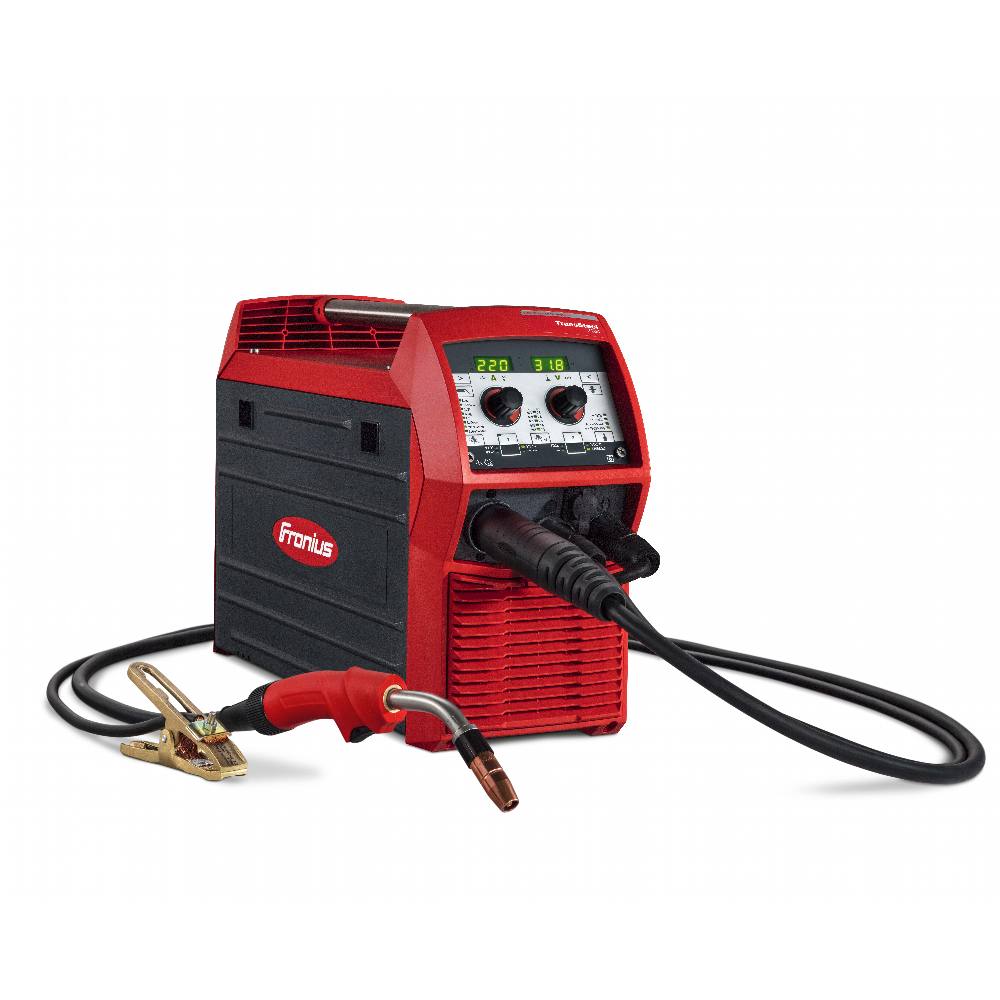

PACKAGE INCLULDES:
- MTG 2100 /FSC/3m/45° MIG TORCH
- GroundCable 25mm² 4m
- StarterKit 0,8 & 1,0mm
- Gas Hose 1,5m 1/4“
|
Length
|
560 mm |
|---|---|
| Weight | 15 kg |
| Dimension / l | 560 mm |
|
Width
|
215 mm |
|
Height
|
370 mm |
| Welding current max. | 230 A |
|---|---|
| Welding current min. | 10 A |
| Welding current / Duty cycle [10min/40°C] | 210A / 30% MAG, 180A / 35% MMA, 230A / 35% TIG |
| Welding current / Duty cycle [10min/40°C] | 170A / 60% MAG, 150A / 60% MMA, 200A / 60% TIG |
| Welding current / Duty cycle [10min/40°C] | 150A / 100% MAG, 130A / 100% MMA, 170A / 100% TIG |
| Open-circuit voltage | 90 V |
| Mains voltage | 110V / 230V |
| Degree of protection | IP23 |

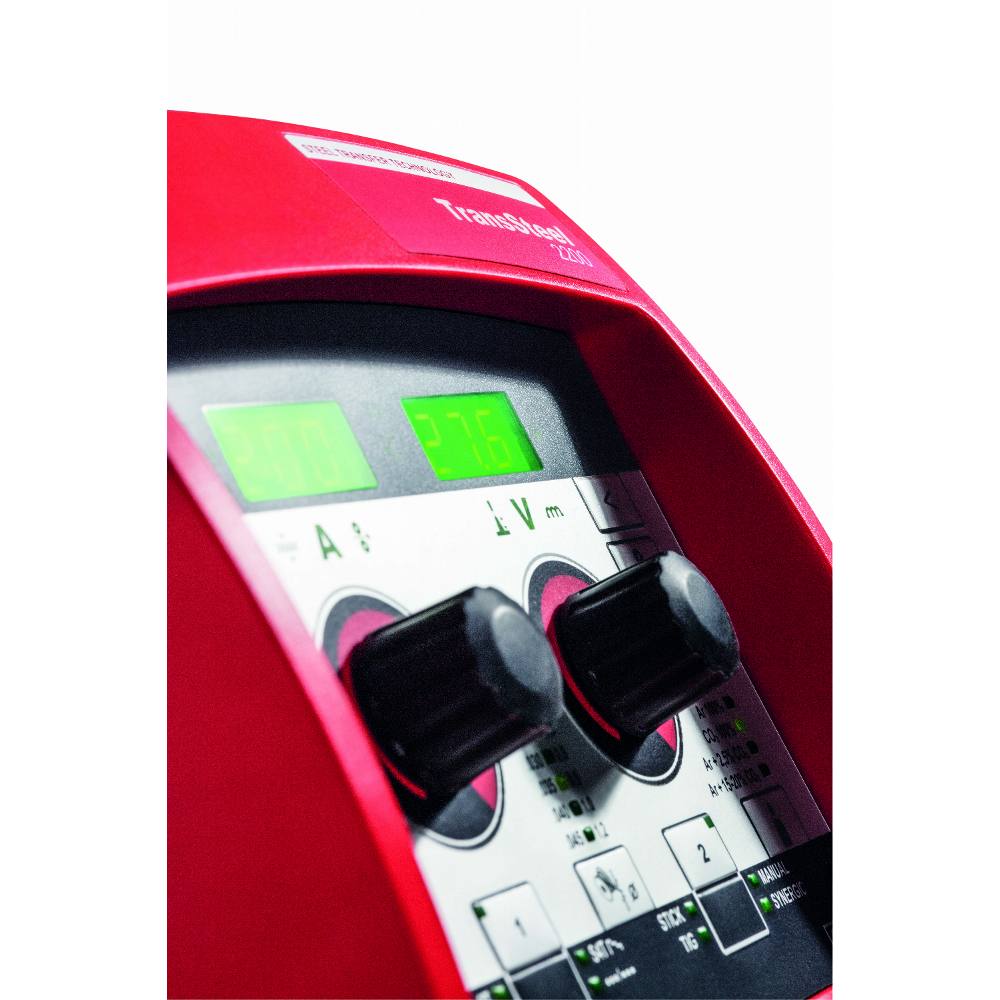

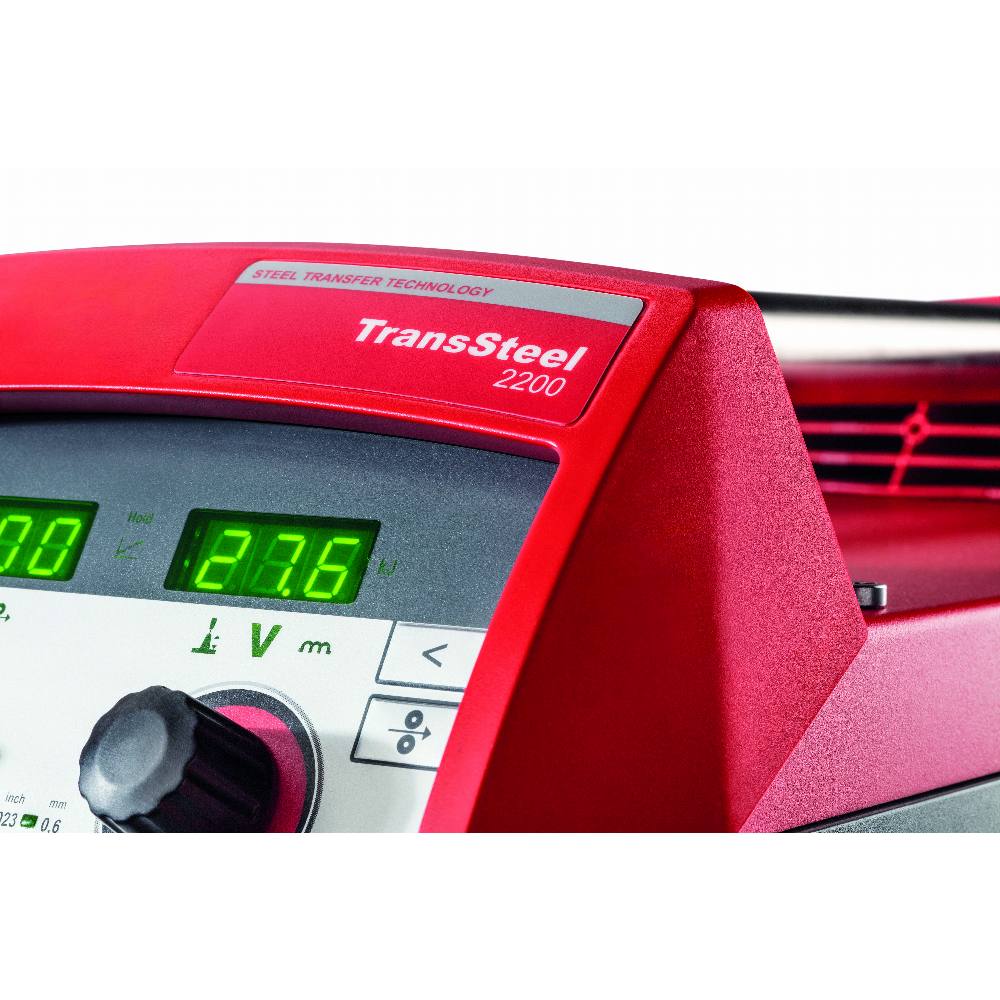

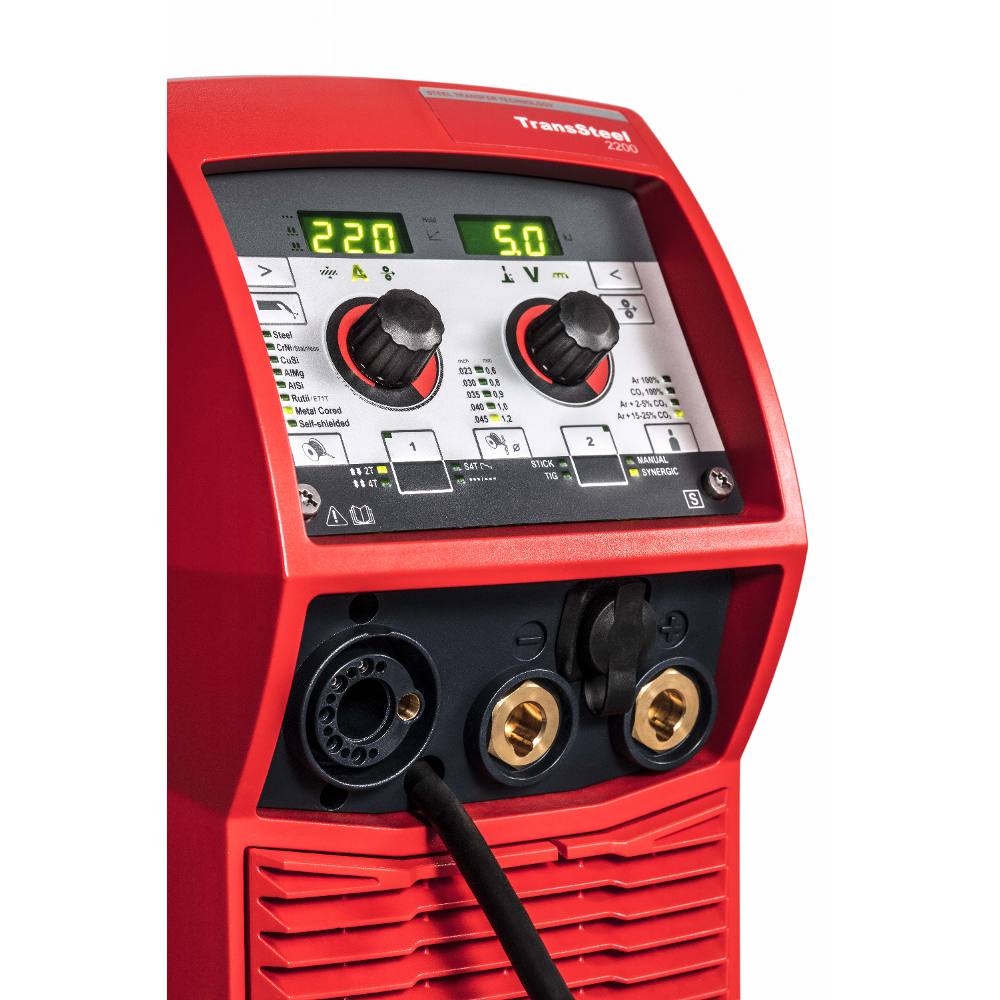

SIMPLE TO OPERATE
/ The same intuitive operating concept common to all Fronius power sources
/ All important parameters can be viewed and adjusted on the front panel
/ Additional settings options in the sub-menu
/ Parameters can be changed through turn/press function
