Description
Like all Multiprocess welding systems from Fronius, the TransSteel 2700 is ready for use in just three steps: select the wire, wire diameter and gas and start welding.
You can switch between the individual welding processes in 60 seconds. In addition, the TransSteel can be used as a single-phase device up to 220A (TIG).
Combining MIG/MAG, TIG, and electrode welding in one device means you no longer have to purchase any other power sources. There is absolutely no difference in the welding performance of the respective process compared with a dedicated device.
- Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, self-shielded wires
- 0.8 – 1.2 mm wire diameter
- Eight different gas mixture settings
- The polarity reverser enables the polarity to be reversed in seconds when welding self-shielded wires.
The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.
SPOT AND STITCH WELDING – NO MATERIAL DISTORTION
Spot mode enables you to place welding spots at regular intervals. As you have complete flexibility over the pause time between the intervals, spot welding is ideal for the tacking of workpieces. Stitch welding not only produces a rippled seam appearance, the low level of heat input reduces any possible material distortion when working with light gage sheets.
Details
NO MATTER WHAT THE WELDING TASK – MIG/MAG, TIG AND ELECTRODE WELDING WITH JUST ONE DEVICE.
Whether a construction site or a workshop, from agricultural enterprises to metalworking companies – for assembly, repair, and maintenance work, the TransSteel Multiprocess series masters the MIG/MAG, TIG, and electrode welding processes to professional levels.
Technical specification
Package Contents:

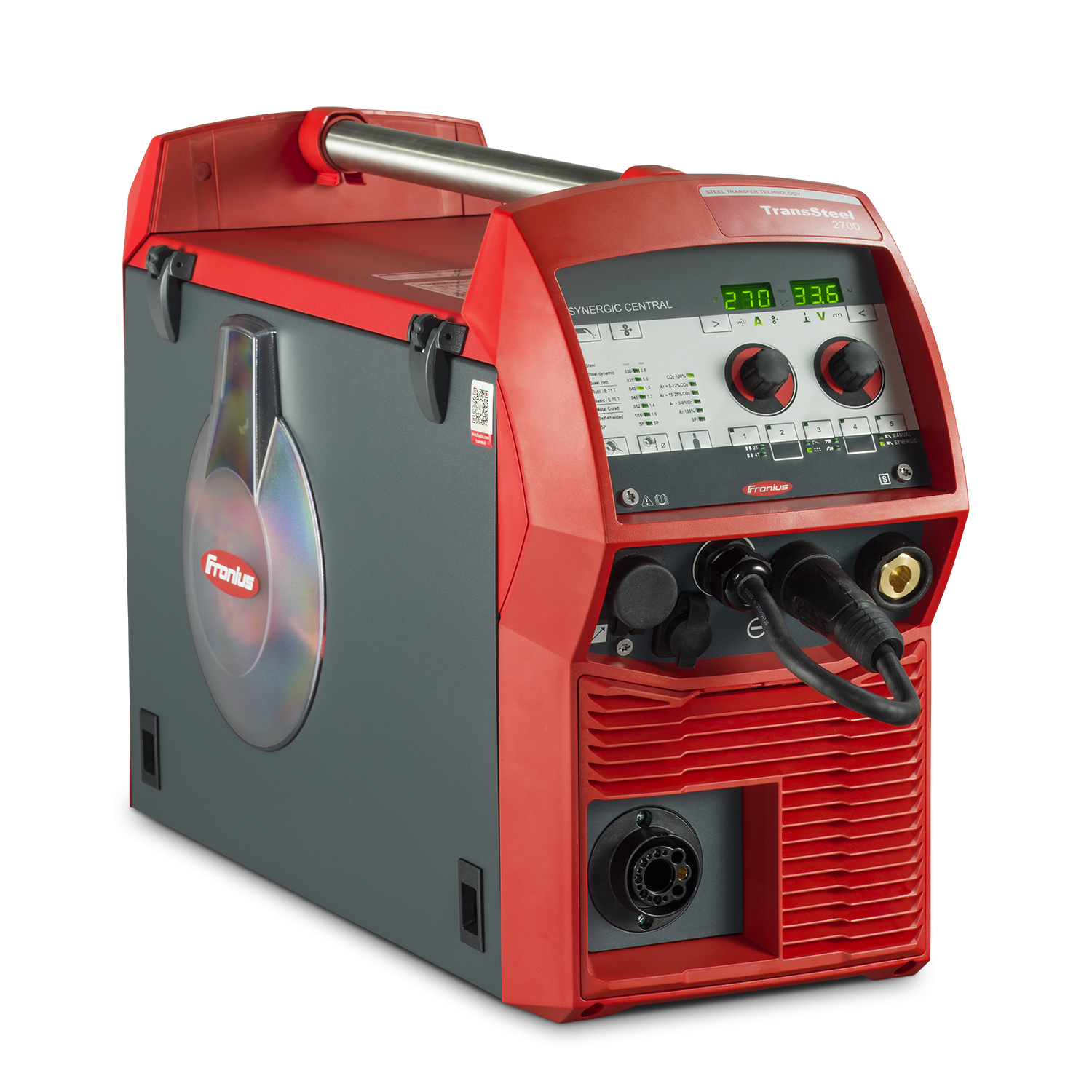

- TransSteel 2700c 4R/FSC Power Source
- Feeder roll U 0,9-1,0 (4 pcs)

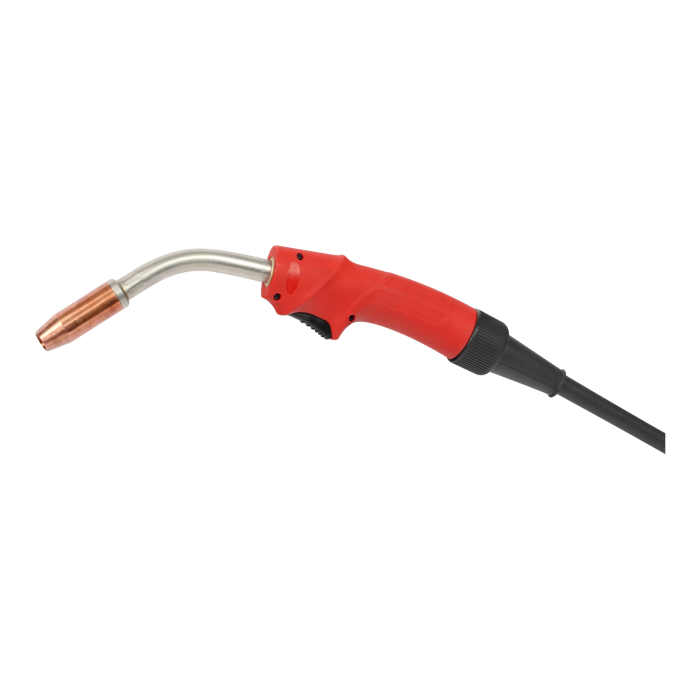

- MTG 2500S/FSC/3,5m/45° – MIG Torch
- BK Fe ø1,0/G/W/5m – Liner Kit
- Ground Cable 35mm² 4m EC/BY earth clamp
|
Length
|
687 mm |
|---|---|
| Weight | 29,7 kg |
| Dimension / l | 687 mm |
|
Width
|
276 mm |
|
Height
|
445 mm |
| Welding current max. | 270 A |
|---|---|
| Welding current min. | 10 A |
| Welding current / Duty cycle [10min/40°C] | 270A 30% MIG/MAG, MMA, TIG |
| Welding current / Duty cycle [10min/40°C] | 210A 60% MIG/MAG, MMA, TIG |
| Welding current / Duty cycle [10min/40°C] | 170A 100% MIG/MAG, MMA, TIG |
| Open-circuit voltage | 85 V |
| Mains voltage | 3 x 380V / 400V / 460V |
| Degree of protection | IP23 |
