Description
HIGH-POWER WELDING AND A BROAD RANGE OF APPLICATIONS
40% DUTY CYCLE
Four minutes of continuous welding at maximum output power, in other words, one minute more of productive output compared with the average in this power range.
167 CHARACTERISTICS*
/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, Self-shielded
/ 0.8 – 1.6mm wire diameter
/ Eight different gas mixtures
READY TO WELD IN THREE STEPS
The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.
70% LESS REWORK, 30% FASTER WELDING
The Pulse function of the TransSteel 4000 and TransSteel 5000 Pulse permits faster welding speeds on thicker materials. The pulsed arc also reduces the amount of rework, as less welding spatter is generated.
- Ready to weld in three steps
- High-quality torch range suitable for high power and long service lives
- Complies with EN 1090
- Spot and interval welding as standard
- Modular system design possible
- Comfort Wire for independent wire threading without opening the motor plate
Technical specification

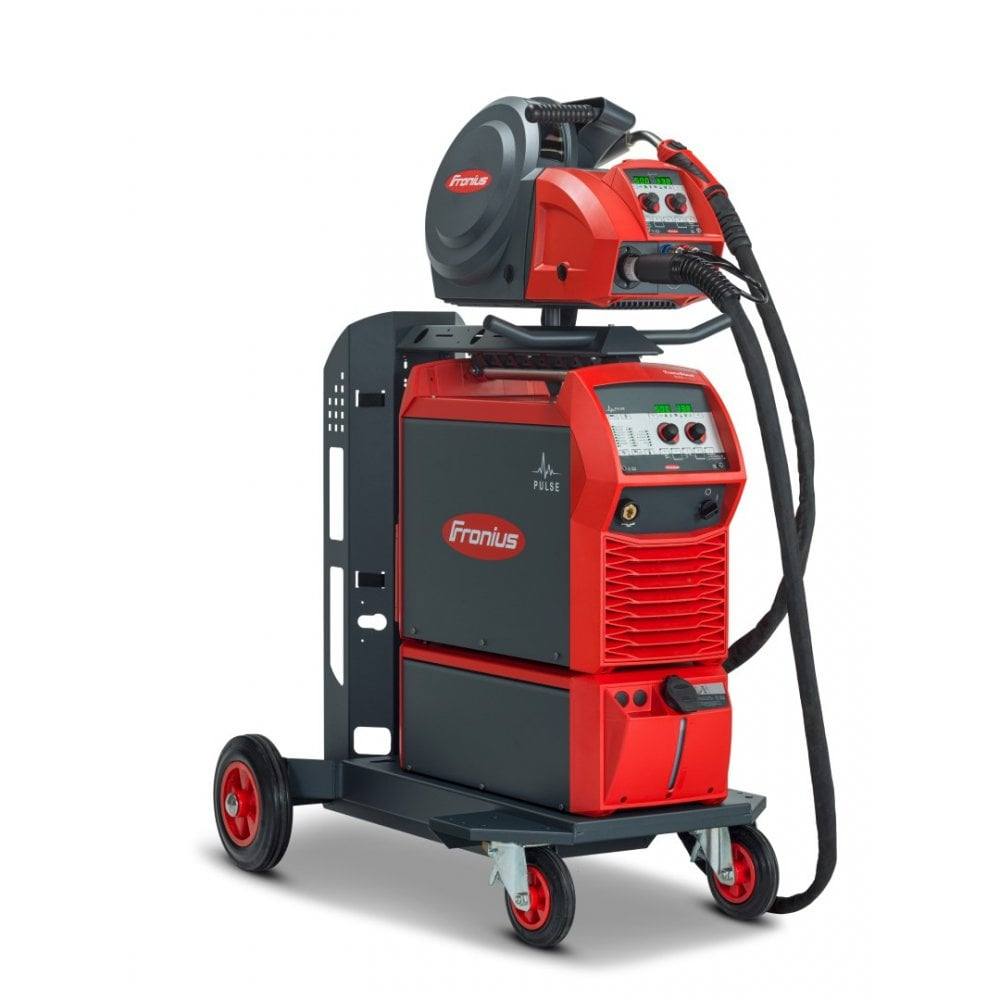

Package Contains:
- TransSteel 3500 Syn Power Source
- FK5000 Cooling Unit
- VR5000 Wire Feeder with Remote Panel
- TU Car 4 Pro – 4 Wheel Trolley with Gas Cylinder Holder
- Watercooled Interconnection Pack – 5m
- MTW 400i /FSC/3,5m/45°/LED – MIG Torch & Universal Liner
- 4x 1.0mm Feed Rollers – Suitable for Steel & Aluminium (Please specify if 0.8mm or 1.2mm required)
- Earth Lead Assembly 4m
| Welding current max. | 350 A |
|---|---|
| Welding current min. | 10 A |
| Welding current / Duty cycle [10min/40°C] | 350A / 40% |
| Welding current / Duty cycle [10min/40°C] | 300A / 60% |
| Welding current / Duty cycle [10min/40°C] | 250A / 100% |
| Open-circuit voltage | 60 V |
| Mains voltage | 3 x 380V / 400V / 460V |
| Degree of protection | IP23 |
