Description
HIGH-POWER WELDING AND A BROAD RANGE OF APPLICATIONS
40% DUTY CYCLE
Four minutes of continuous welding at maximum output power, in other words, one minute more of productive output compared with the average in this power range.
167 CHARACTERISTICS*
/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, Self-shielded
/ 0.8 – 1.6mm wire diameter
/ Eight different gas mixtures
READY TO WELD IN THREE STEPS

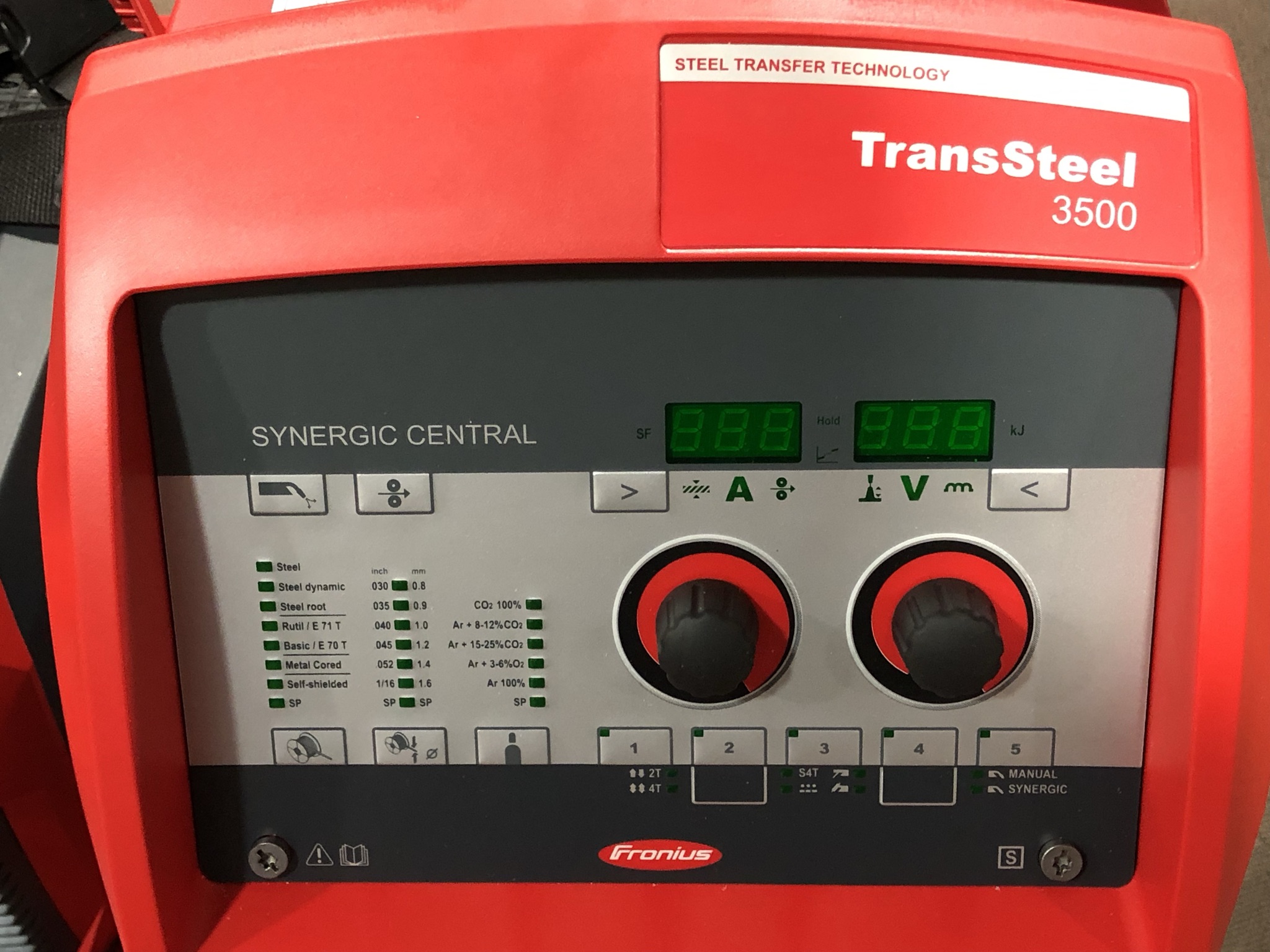

The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.
70% LESS REWORK, 30% FASTER WELDING
The Pulse function of the TransSteel 4000 and TransSteel 5000 Pulse permits faster welding speeds on thicker materials. The pulsed arc also reduces the amount of rework, as less welding spatter is generated.
- Ready to weld in three steps
- High-quality torch range suitable for high power and long service lives
- Complies with EN 1090
- Spot and interval welding as standard
- Modular system design possible

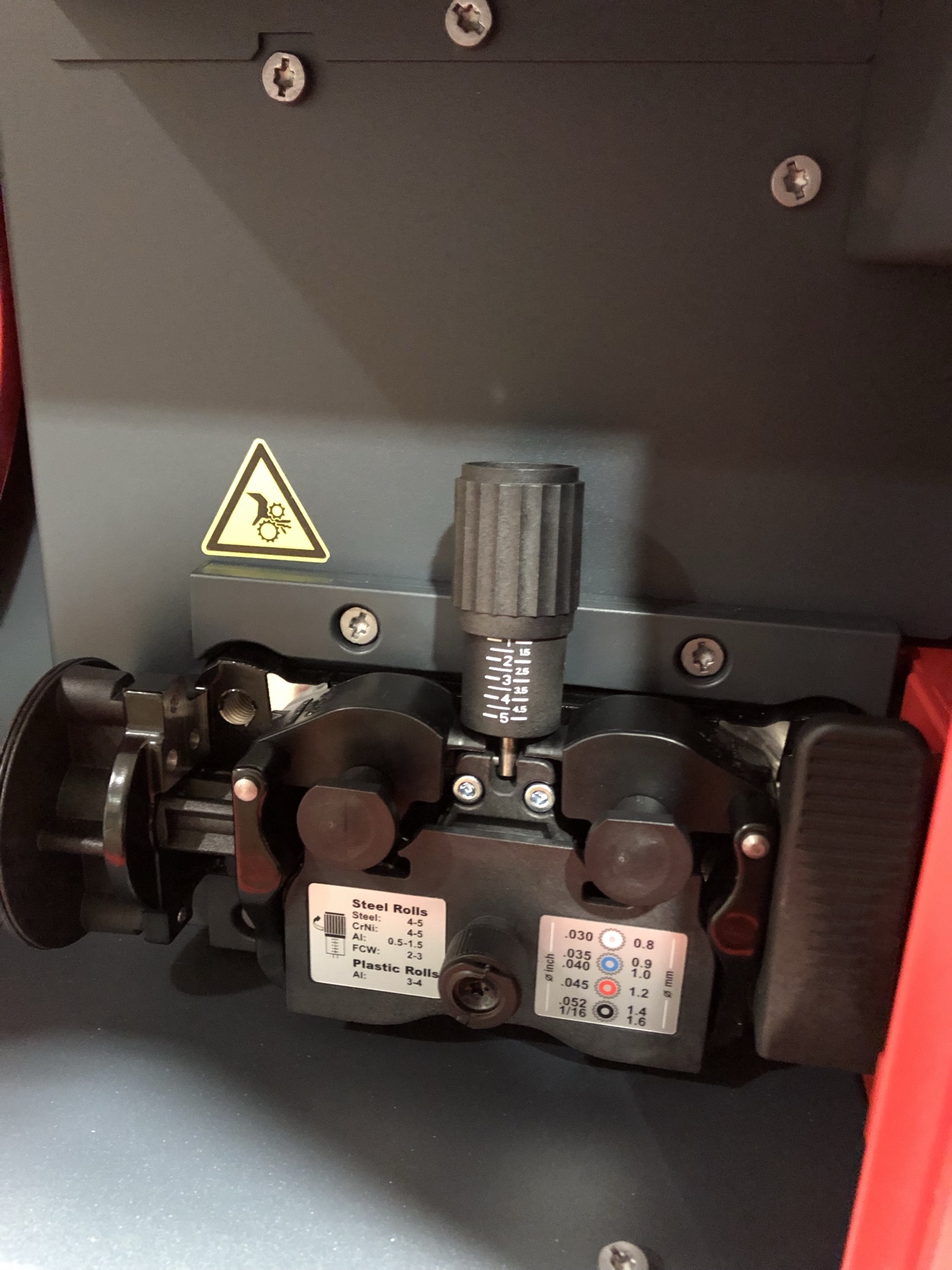

- Comfort Wire for independent wire threading without opening the motor plate
Details

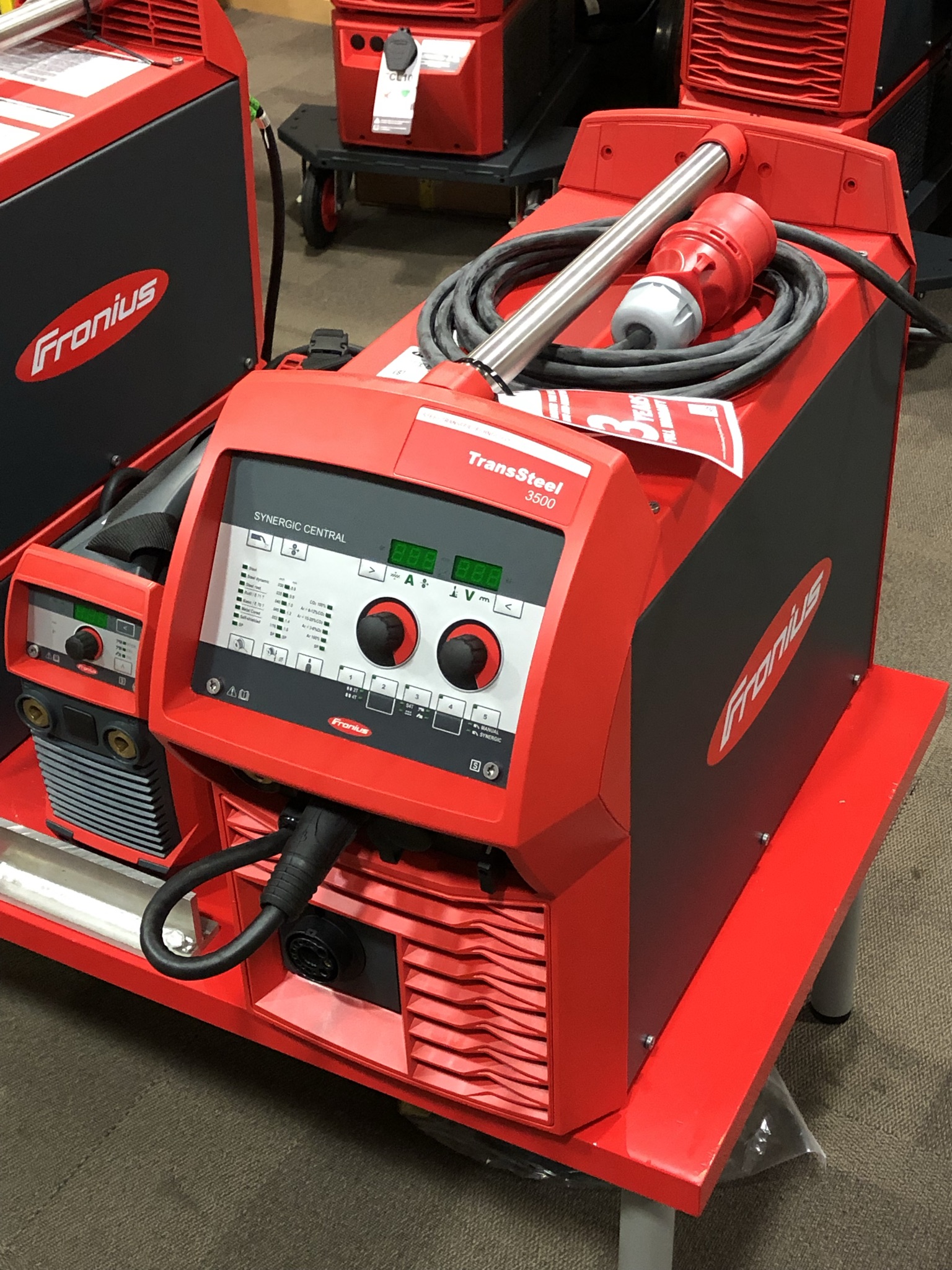

The TransSteel 3500 Compact is the most powerful Multiprocess welding system in the TransSteel series. Irrespective of the welding process, the welder has a total of 350A with 40% duty cycle at their disposal
Technical specification

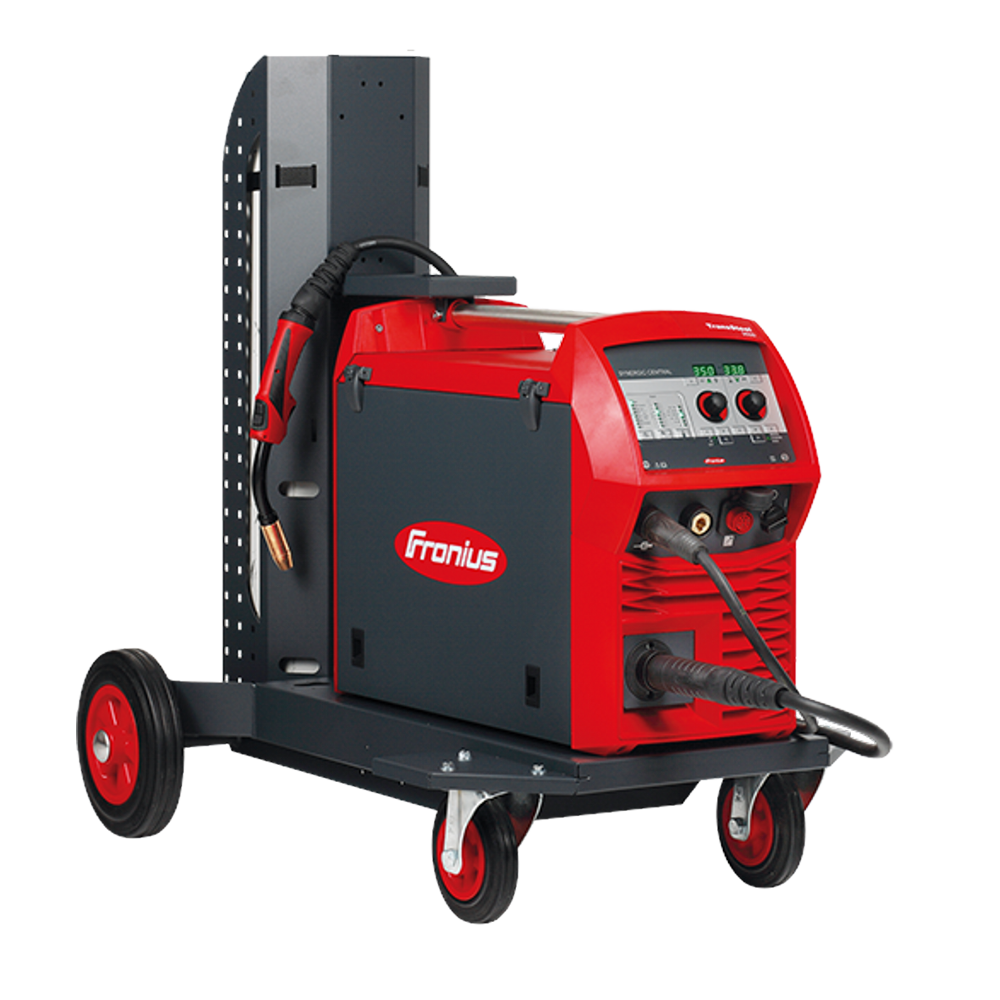

Package Contains:
- TransSteel 3500c 4R/FSC Synergic Power Source
- MTG 320i/FSC/3,5m/45° MIG Torch & Universal Liner Kit Fitted
- 4x Feed Roll 1.0mm (Suitable for Steel & Aluminium) – Please advise if a different size required
- TU Car 4 Standard – 4 Wheel Trolley with Gas Cylinder Holder
- 4m Earth Lead Assembly
|
Length
|
747 mm |
|---|---|
| Weight | 34,64 kg |
| Dimension / l | 747 mm |
|
Width
|
300 mm |
|
Height
|
497 mm |
| Welding current max. | 350 A |
|---|---|
| Welding current min. | 10 A |
| Welding current / Duty cycle [10min/40°C] | 350A 40% MIG/MAG, MMA, TIG |
| Welding current / Duty cycle [10min/40°C] | 300A 60% MIG/MAG, MMA, TIG |
| Welding current / Duty cycle [10min/40°C] | 250A 100% MIG/MAG, MMA, TIG |
| Open-circuit voltage | 59 V |
| Mains voltage | 3 x 380V / 400V / 460V |
| Degree of protection | IP23 |
