Description
Features:
IDEAL LOW CLEARANCE OR TIGHT CONSTRAINT
APPLICATIONS REQUIRING HIGH FORCES.
■ Low height starting at 41,3 to 101,6 mm.
■ Cylinder body, piston and gland nut are “Power-Tech”
treated for corrosion and abrasion resistance.
■ Standard domed piston rod (5-30 tons) or swivel cap
(50-150 tons) minimize effects of off-centre loading.
■ Unique heavy-duty spring provides fast piston return
on all cylinders, except RLS50.
■ Coupler is angled upward for extra clearance, except
RLS50.
■ Complies with ANSI / ASME B30.1 safety standards.

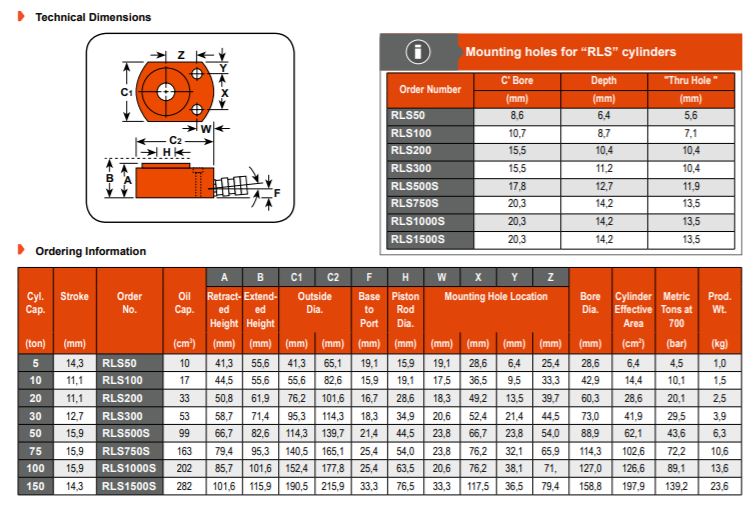

Technical specification
