Description

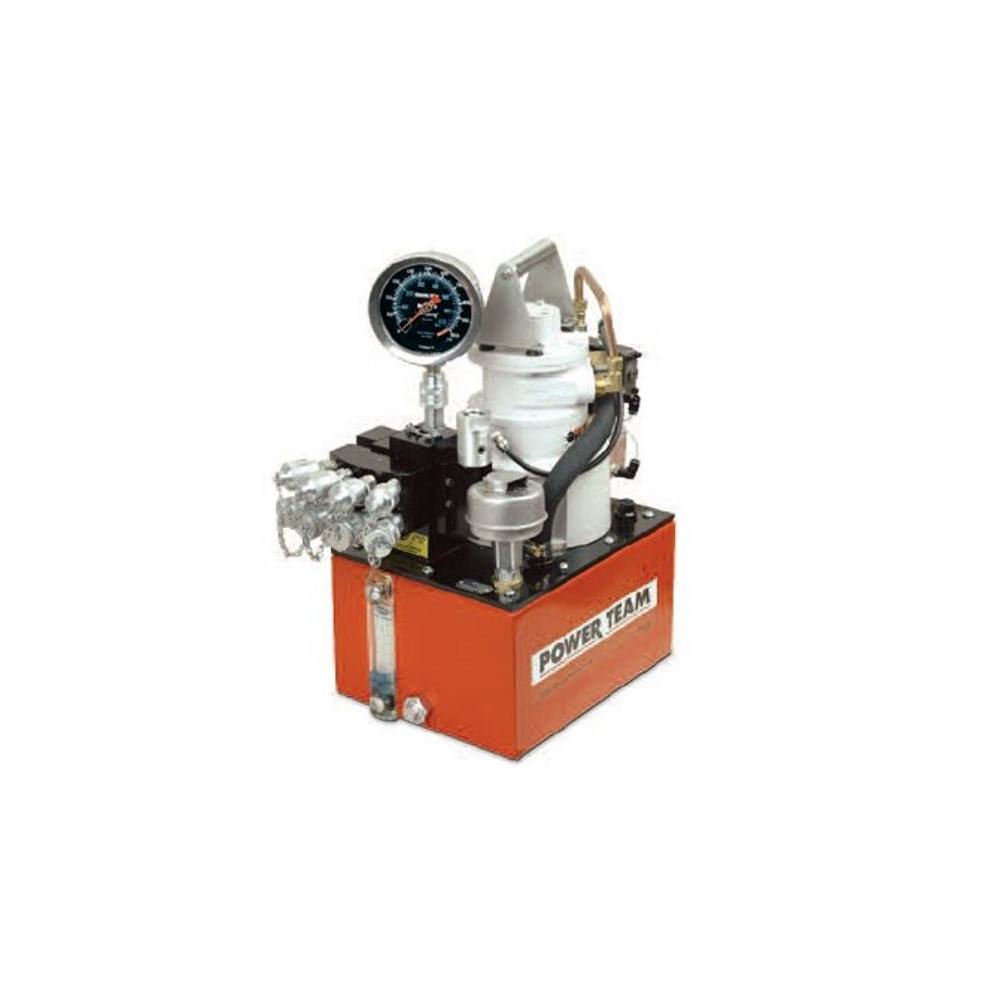

700 BAR (10,000 PSI) CLASSIC
SERIES AIR HYDRAULIC PUMP
The RWP55-BS has been the market leading pump for over 30 years & is therefore tried & tested.
A simple, light-weight design with a recent upgrade that has created a cost-effective workhorse.
Quality means Lower Life-Cycle Costs:
• Over 100,000 cycles
• Continuous duty up to 50°C (122°F) ambient
• Proven design = Proven reliability
Enhanced Usability:
• Powerful 3 hp motor starts under load
• Retract side internal relief valve protects tool
• Use with single or double acting tools. Not for lifting applications
• 4″ calibration capable gauge
Designed with Safety in Mind:
• Easily adjusted pressure regulator (relief) valve
• Has a retract port pressure selector 1,500 or 10,000 psi
Technical specification
- Size (L x W x H): 42 cm x 24 cm x 50 cm
- Weight: 38 kg (84 lb) [without oil]
- Maximum Oil Capacity: (vented reservoir)
6.8 L (1.8 Gallons) [to fill line]
5.3 L (1.4 Gallons) [usable] - Operating Environment: -25°C to +50°C (-13°F to +122°F)
(When operating near temperature extremes, it is
recommended to use hydraulic oils that are rated
for those temperatures. Refer to service manuals
and cooling options) - Sound Level: 85-92 dBA (max)
- Pressure: 0 – 700 bar (0 – 10,000 psi)
- Typical Flow: 7.6 L/min – 0.9 L/min (465 in3/min – 55 in3/min)
- Air: 1.4 m3/min @ 5.5 bar (50 cfm @ 80 psi)
1.65 m3/min @ 6.2 bar (58 cfm @ 90 psi)
1.89 m3/min @ 6.9 bar (67 cfm @ 100 psi)
