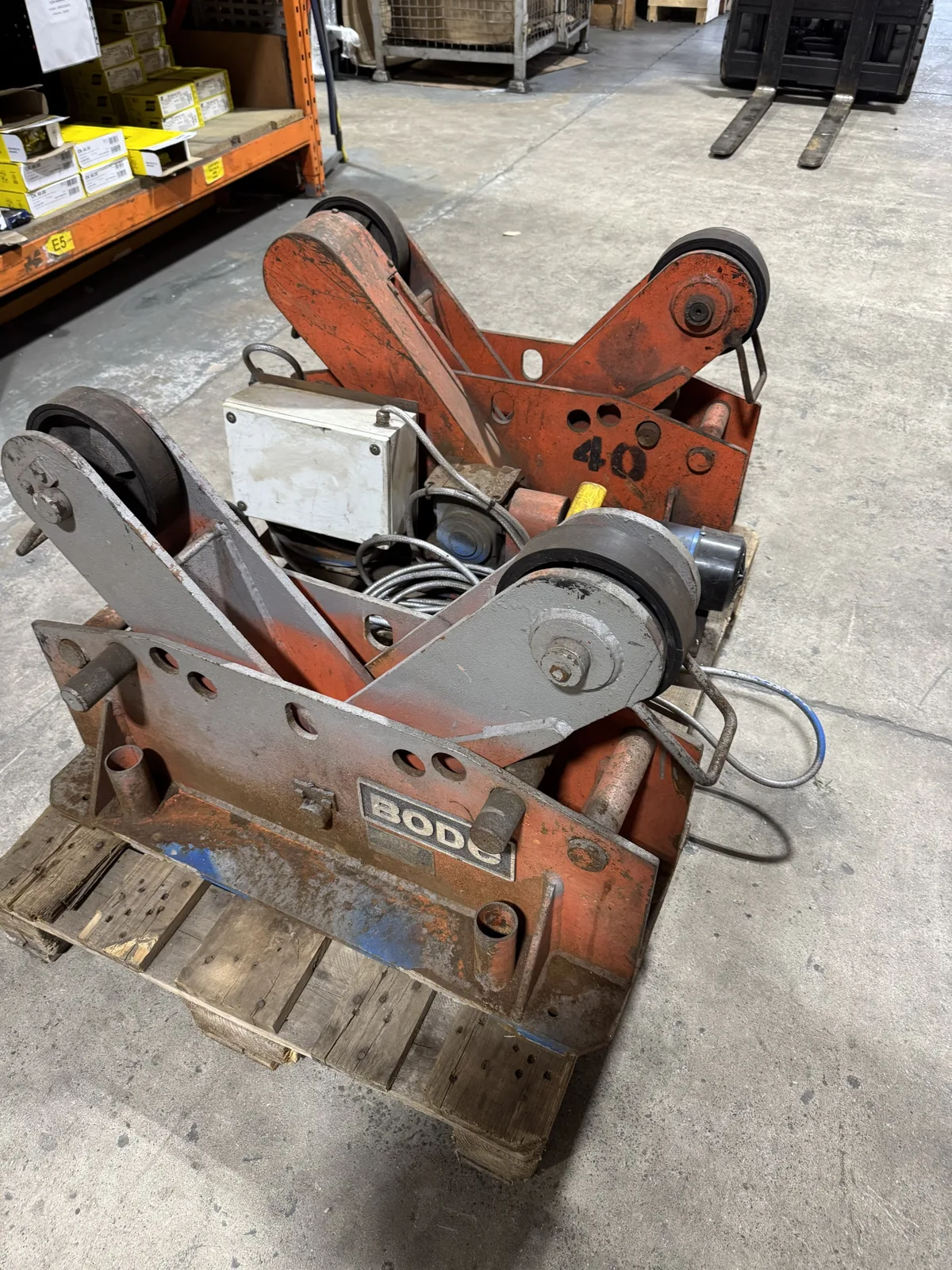

Used Bode welding rotator set, drive unit with motor and control box in front of idler

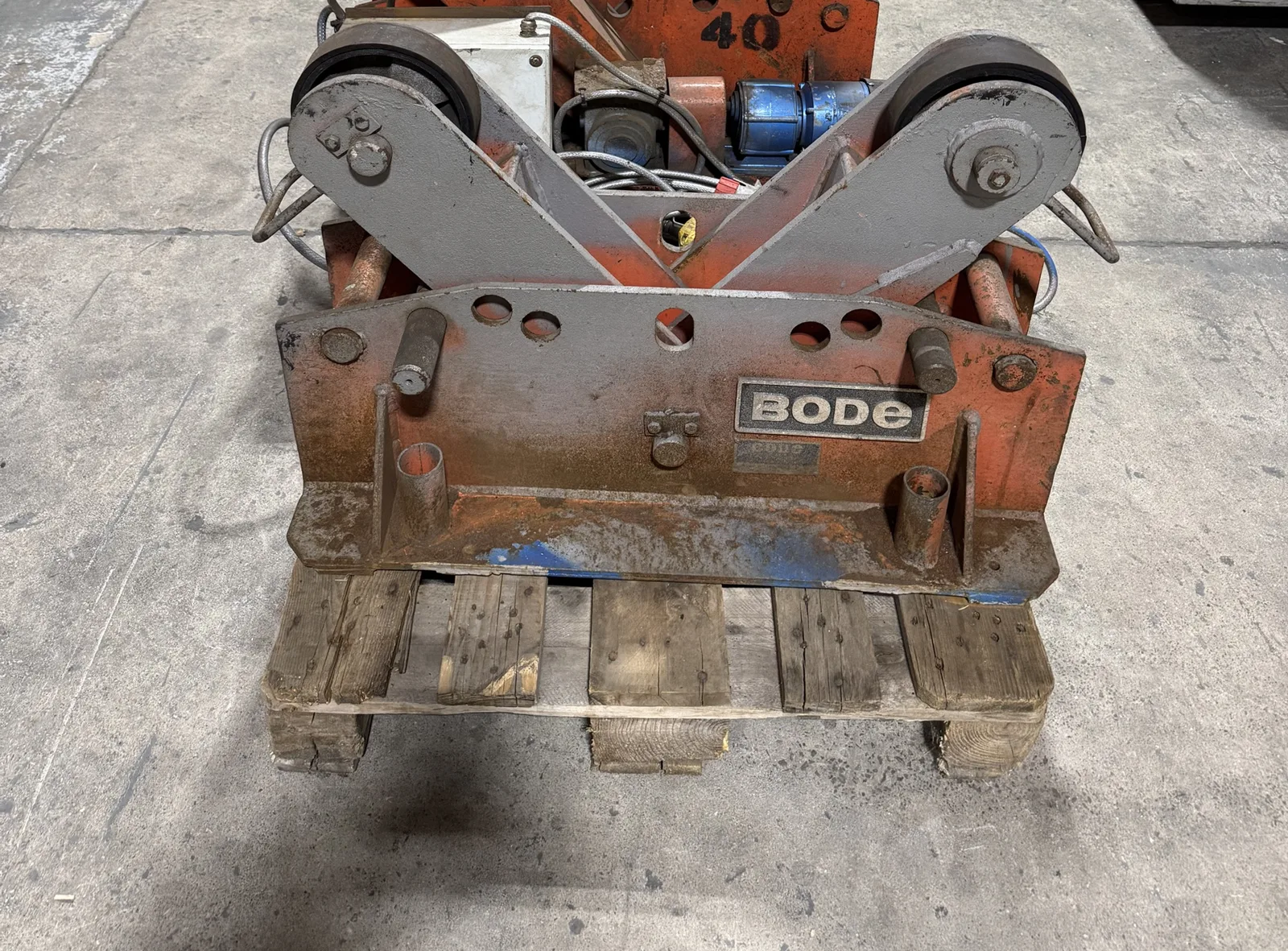

Bode rotator drive unit front view on pallet with idler behind

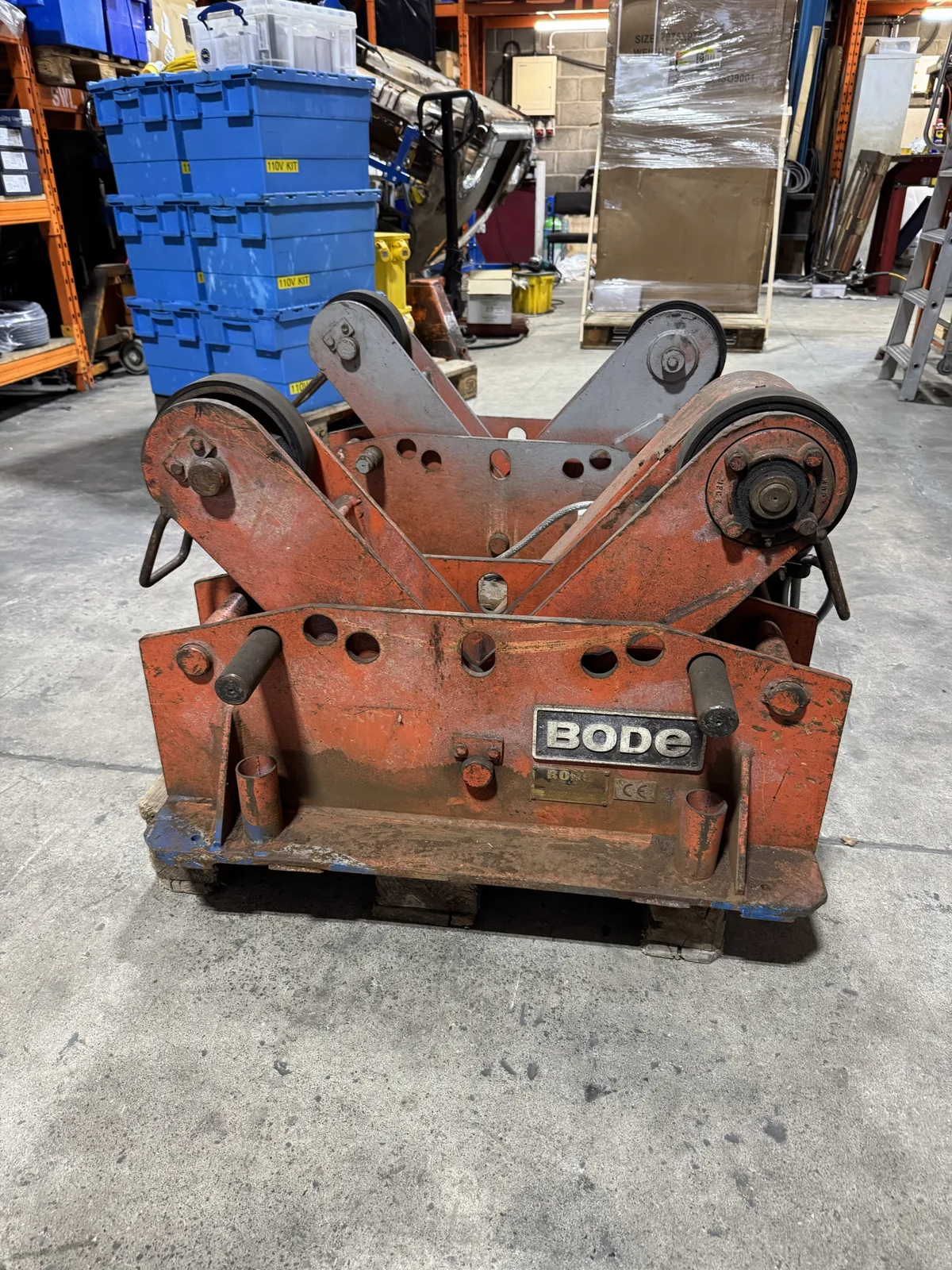

Bode welding rotator unit front view with adjustable wheel arms

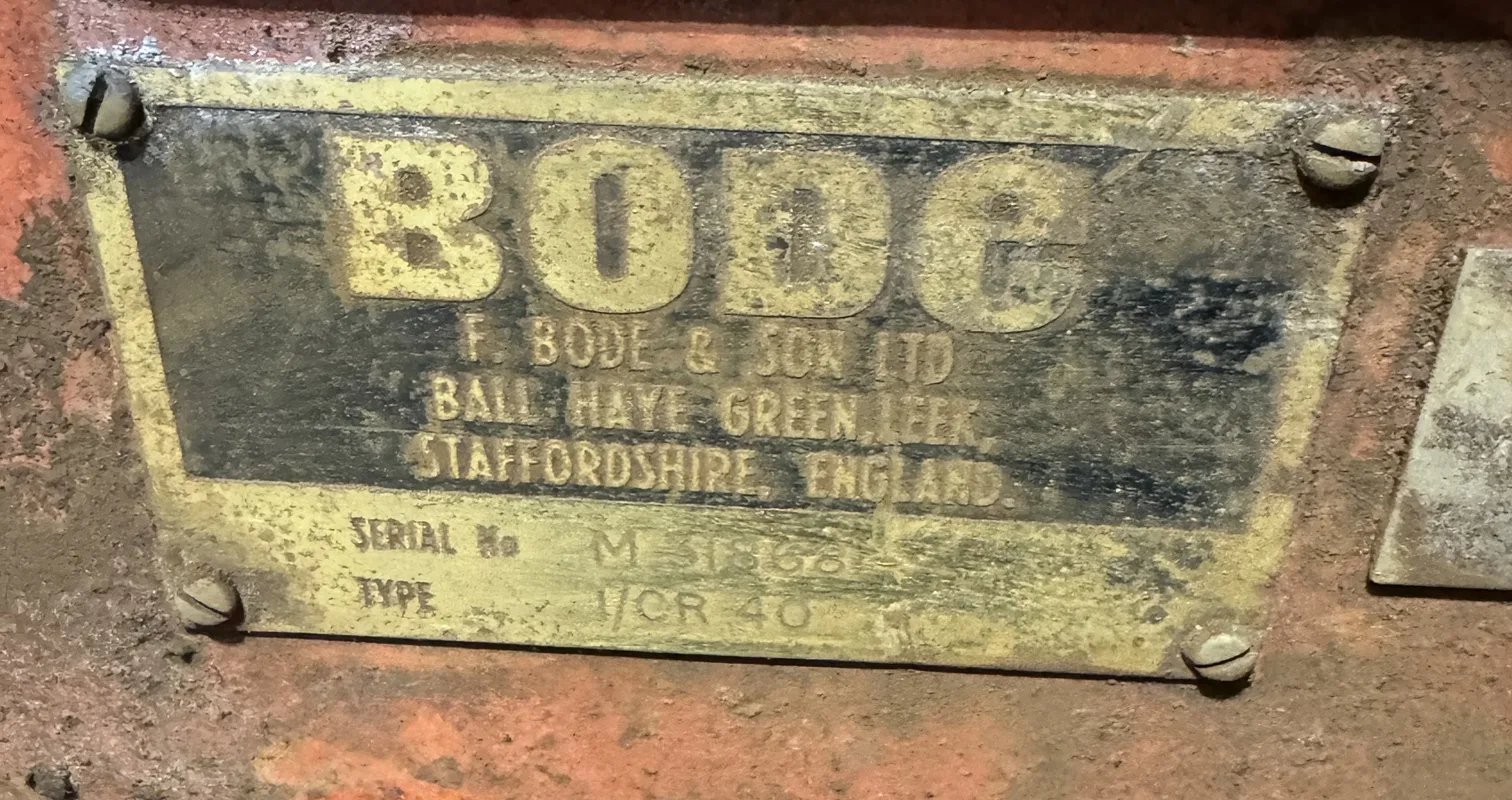

Bode rating plate, F. Bode & Son Ltd Leek, Type I/CR 40

Sold as seen

Used Bode I/CR 40 Sizzer Welding Rotator Set, 2 Tonne (Drive + Idler)

£2,000.00 ex VAT (£2,400.00 inc VAT)

Used Bode Sizzer type rotator set, model I/CR 40: drive section and idler section, 2 tonne capacity, 150 to 2000 mm diameter, variable speed 75 to 1500 mm/min, 415V, remote pendant included. Sold as seen, no warranty. Pallet delivery.

Machine details

ConditionSold as seen
Brand / modelBode
Serial numberM 31868
IncludedDrive section with motor, gearbox and control box
Idler section
Remote control pendant on 4.5 m cable (forward/stop/reverse and speed control)
Both on pallets
WarrantyNone, sold as seen
ViewingViewing welcome at our warehouse, by appointment

Trade sale only – sold as seen, no warranty.

Terms for used equipment

  • Large machine: free collection from our warehouse, or pallet delivery at a fixed price for your area (shown at checkout)
  • Free collection from our Scotstoun warehouse
  • Secure card payments
  • Expert advice: 0141 959 5666
  • Trade accounts available – apply online
  • Viewing welcome at our warehouse, by appointment
SKU: USED-0001 Categories: ,

Description

A used set of Bode “Sizzer” type welding rotators (turning rolls), model I/CR 40, made by F. Bode & Son Ltd. Ideal for circumferential welding of pipe, tanks and small vessels. The set has two sections, each on its own pallet.

Specification

  • Capacity: 2 tonnes for the set
  • Drive section: supports 1 tonne, rotates 2 tonnes
  • Idler section: supports 1 tonne
  • Work diameter: 150 mm to 2000 mm, set by moving the support arms to one of four positions (150 to 400 mm, 400 to 760 mm, 760 to 1220 mm, 1220 to 2000 mm)
  • Rollers: two per section, cast iron centres with interchangeable polyurethane tyres, 200 mm x 40 mm, on machined steel axles
  • Speed: variable, 75 mm to 1500 mm per minute
  • Supply: 415V
  • Adjustment: manual
  • Control: remote pendant on 4.5 m cable with forward, stop and reverse buttons and speed control (included)
  • Robust fabricated all steel frames

Condition

Used, sold as seen with no warranty. Rating plate: Type I/CR 40, Serial No. M 31868. Viewing welcome by appointment at our warehouse.

Delivery

Pallet delivery, or free collection from our warehouse.
