Description
LEADING-EDGE
FEATURES.
With innovative ESAB technology and industry-leading productivity enhancements, Warrior has the features you need and the innovation you expect.
Multiple-Process
- MIG, Flux-Cored, Stick, Live TIG and Arc Gouging gives you the flexibility at work:
Flux-Cored and Solid wire, 0.8 -1.6 mm.
Carbon Arc Gouging up to 9.5 mm (3/8 in.)
6010 (cellulosic) capability - Great Short Arc performance with 500 amps
- Full range of Stick capabilities with excellent 7018 and 6010 performance
- Inverter Technology –Warrior brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price.
- High-Duty Cycle -For long runs across a variety of applications and delivers 400 A or 500 A at 60% Duty Cycle.
- Durable and rugged –IP23 rating for outdoor and indoor use in rough environment.
- Easy-to-use–Clear and intuitive user interface for everyone to get started quickly. Glove-friendly knobs make adjustments quick and easy.
- Wide input voltage range to support regional requirements.
Industries
- Civil Construction
- Energy
- Industrial and General Fabrication
- Pipeline
- Ship/Barge Building
- Repair and Maintenance
Part Numbers and Accessories
Details
Ordinary welders go to work. But you’re not an ordinary welder – you’re a warrior. and warriors do battle.
Introducing Warrior by ESAB – the breakbrough welding machine you need to expand your skills.
Technical specification

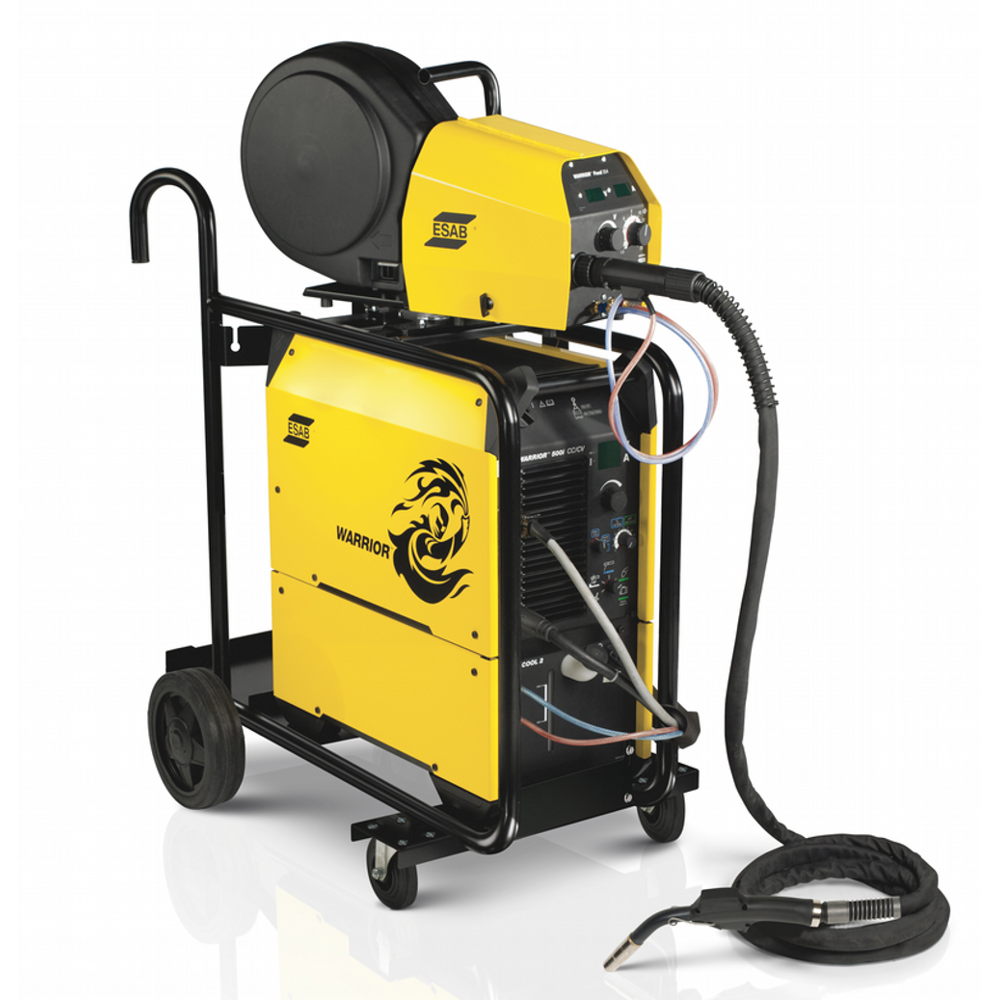

Package Contains:

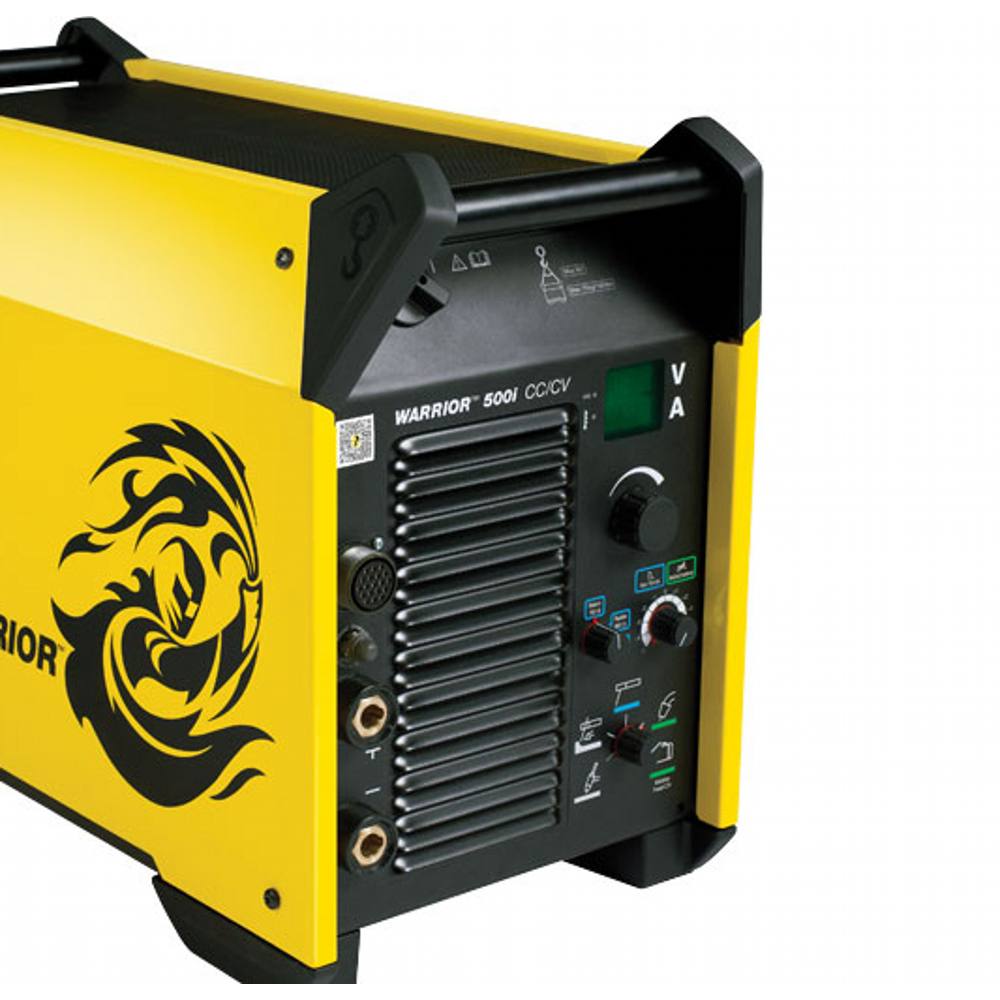

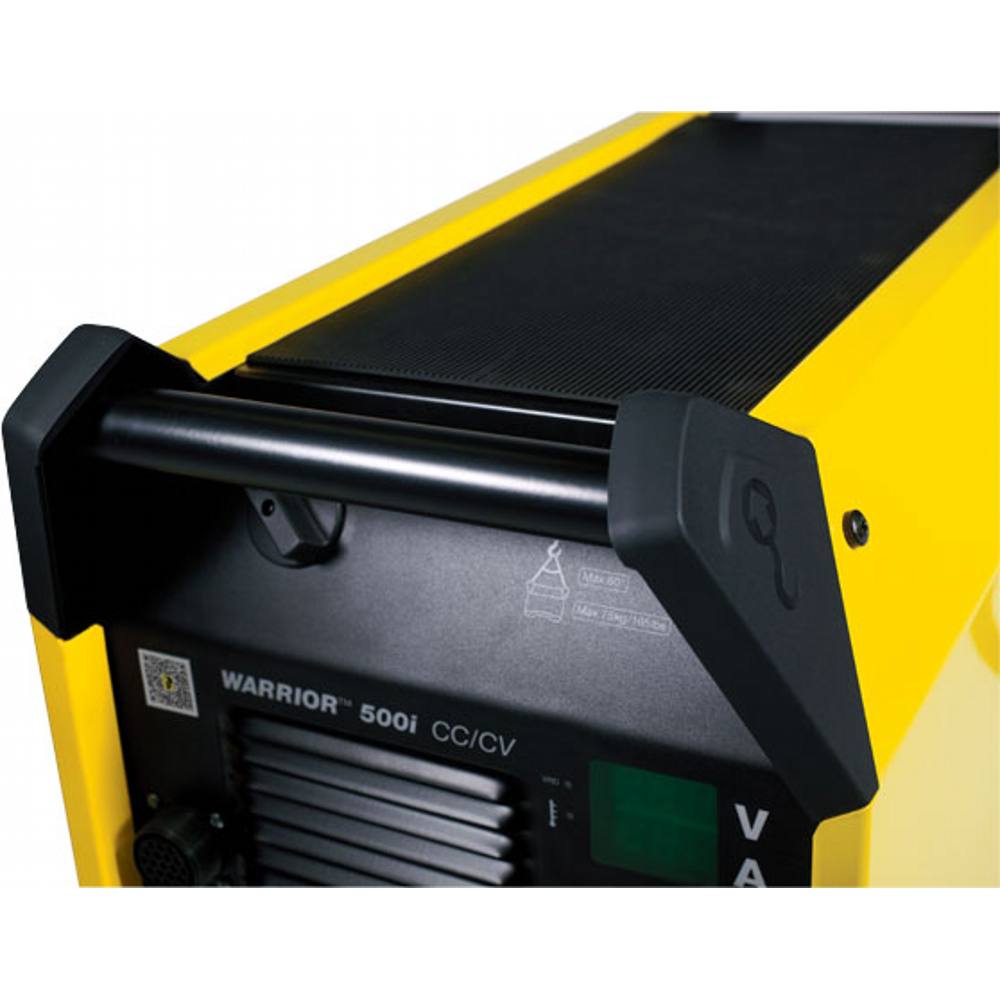

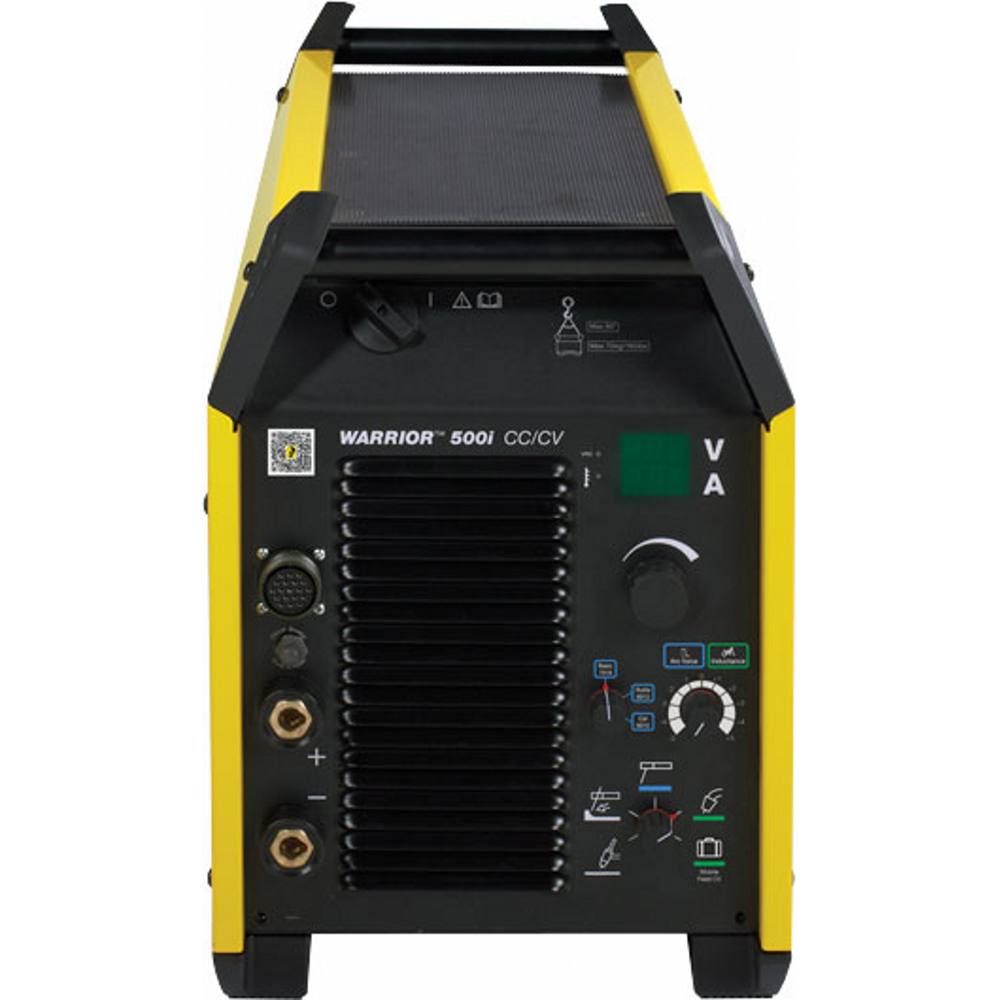

- Warrior 500iw Power Source
- Warrior™Feed 304w
- 1.7m Interconnections
- Cool 2 Watercooler
- PSF™ 510w 4.5m MIG Torch
- Return Cable
- 4 Wheel Trolley
Dimensions
| Description or Qualifier | w/Cooling Unit | |
| Height | 470 mm | 700 mm |
| Length | 712 mm | 712 mm |
| Width | 325 mm | 325 mm |
Weight
| Description or Qualifier | w/Cooling Unit | |
| Weight | 59 kg | 74 kg |
Power Specifications
| Model | 400i CC/CV | 500i CC/CV | |
| Energy Save Mode | 30 W | ||
| Power Factor at Maximum Current | 0.91 | ||
| Efficiency at Maximum Current | 88 % | 89 % | |
| Open Circuit Voltage | 54 (VRD 28) VDC | ||
| Protection Class | IP23 | ||
| Current Range(A) | 16-400 (TIG 5-400) A | 16-500 (TIG 5-500) A | |
Fuse Specifications
| Fuse Slow – Amps | 25 A |
| Fuse Slow – Amps | 32 A |
Welding Output
| Model | 400i CC/CV | 500i CC/CV |
| MIG/MAG | 400 A/34V @ 60% 300 A/29V @ 100% |
500 A/39V @ 60% 400 A/26V @ 100% |
| MMA | 400 A/36V @ 60% 300 A/32V @ 100% |
500 A/40V @ 60% 400 A/36V @ 100% |
| TIG | 400 A/26V @ 60% 300 A/22V @ 100% |
500 A/30V @ 60% 400 A/26V @ 100% |
Input Voltage
| Voltage | 380-415 ± 10% V |
| Phase | 3 |
| Frequency | 50/60 Hz |
Specifications
| MCableX | 4×6 |
Extra Info
For specifications on compatible wire feeders please see separate fact sheet and manual.
