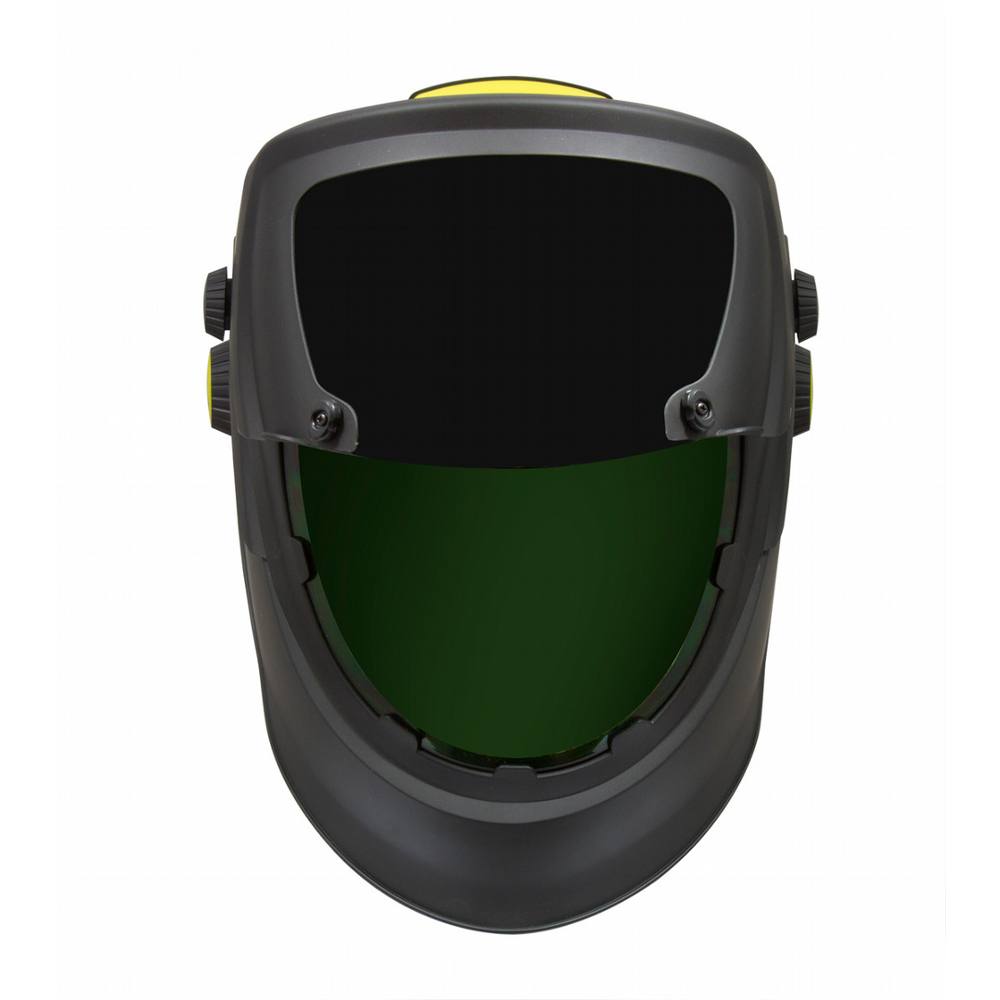

Welding Helmet G30 Shade 10

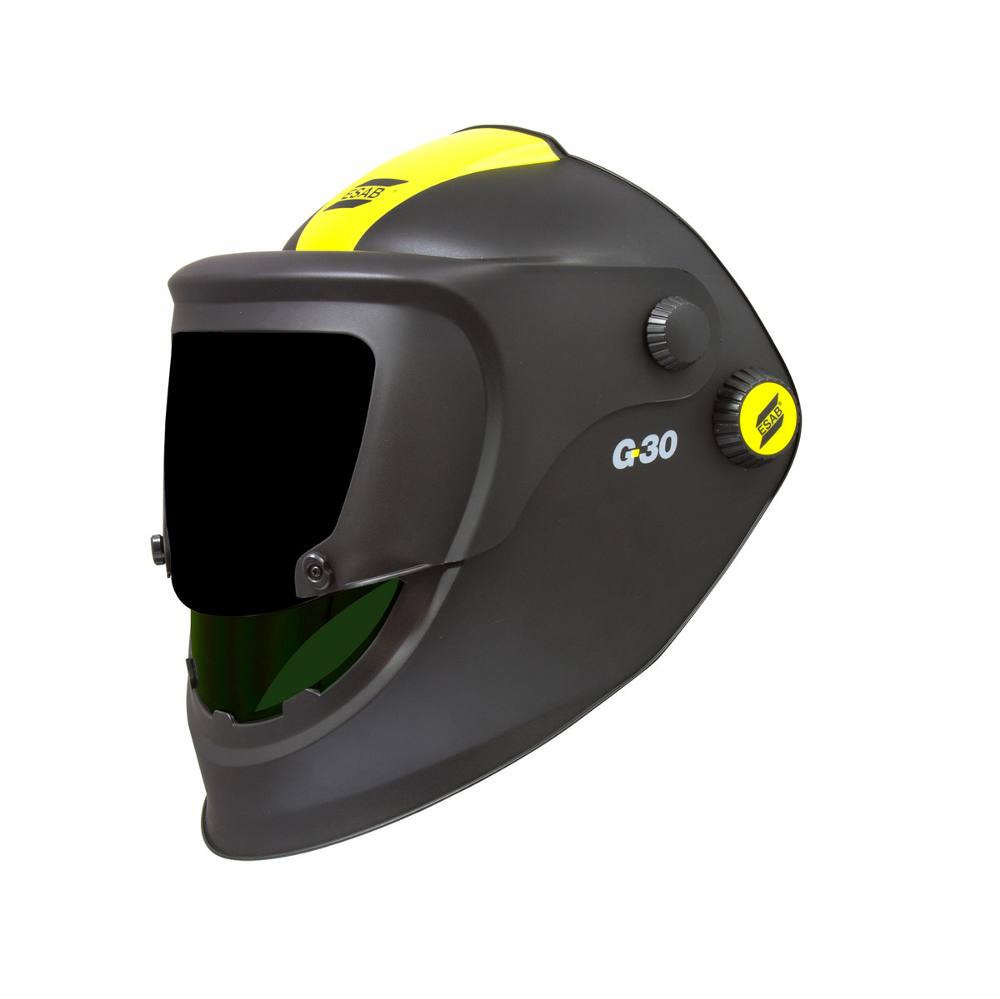

Welding Helmet G30 Shade 10 – view 2
ESAB

Welding Helmet G30 Shade 10

£59.98 ex VAT (£71.98 inc VAT)

The G30 is a unique design in flip front welding and grinding helmets. The visor provides effective protection from UV and IR radiation when the visor is both open and closed, and is available in different shade levels. The helmet is equipped with a strong and comfortable head gear.

Available to order – ask us for a lead time

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Free collection from our Scotstoun warehouse
  • Secure card payments
  • Expert advice: 0141 959 5666
  • Trade accounts available – apply online
SKU: 0700000430 Category: Brand:

Description

The G30 is a unique design in flip front welding and grinding helmets.

The visor provides effective protection from UV and IR radiation when the visor is both open and closed, and is available in different shade levels.

The helmet is equipped with a strong and comfortable head gear.



Features



  • Changeable inner and outer lens
  • Lightweight shell
  • Large inner grinding visor
  • Comfort headgear
  • Respiratory option with ESAB PAPR



Technical specification

Specifications
Viewing Area 155 mm x 170 mm (large visor)
Large Inner Lens DIN Options Clear, DIN 2, DIN 3, DIN 5
Outer Flip Visor DIN Options DIN 5, DIN 8, DIN 10
Standards CE, ANSI, CSA, ASNZS, EN12941 Class TH3 P R SL
Weight – G30 570 g
Weight – G30 Air 730 g



Part Numbers and Accessories


Part Numbers : G30 & G30 Air Helmets
G30 Air Din 10 Prepared for fresh air (incl. air duct and face seal) 0700000433
G30 Air Din 11 Prepared for fresh air (incl. air duct and face seal) 0700000434
G30 Din 10 0700000430
G30 Din 11 0700000431


Accessories : G30 & G30 Air Helmets
Flip up Frame G30 Including Screws 0700000508
Head & Face Seal G30, G40 & G50 0700000512
Head Gear 0700000415
Headgear including air duct 0700000420
Kit Bag (empty) 0700002315
Large inner Visor G30 DIN 2 0700000502
Large inner Visor G30 DIN 3 0700000503
Large inner Visor G30 DIN 5 0700000504
Large inner Visor G30, G40 & G50 -Clear 0700000501
Main Shell G30, G40 & G50 0700000515
Outer Flip Visor G30 Din 10 0700000507
Outer Flip Visor G30 Din 5 0700000505
Outer Flip Visor G30 Din 8 0700000506
PAPR with Long Hose 1000 mm (39.4 in.) 0700002301
PAPR with Standard Hose 850 mm (33.5 in.) 0700002300
Sweat Band 0700000414
