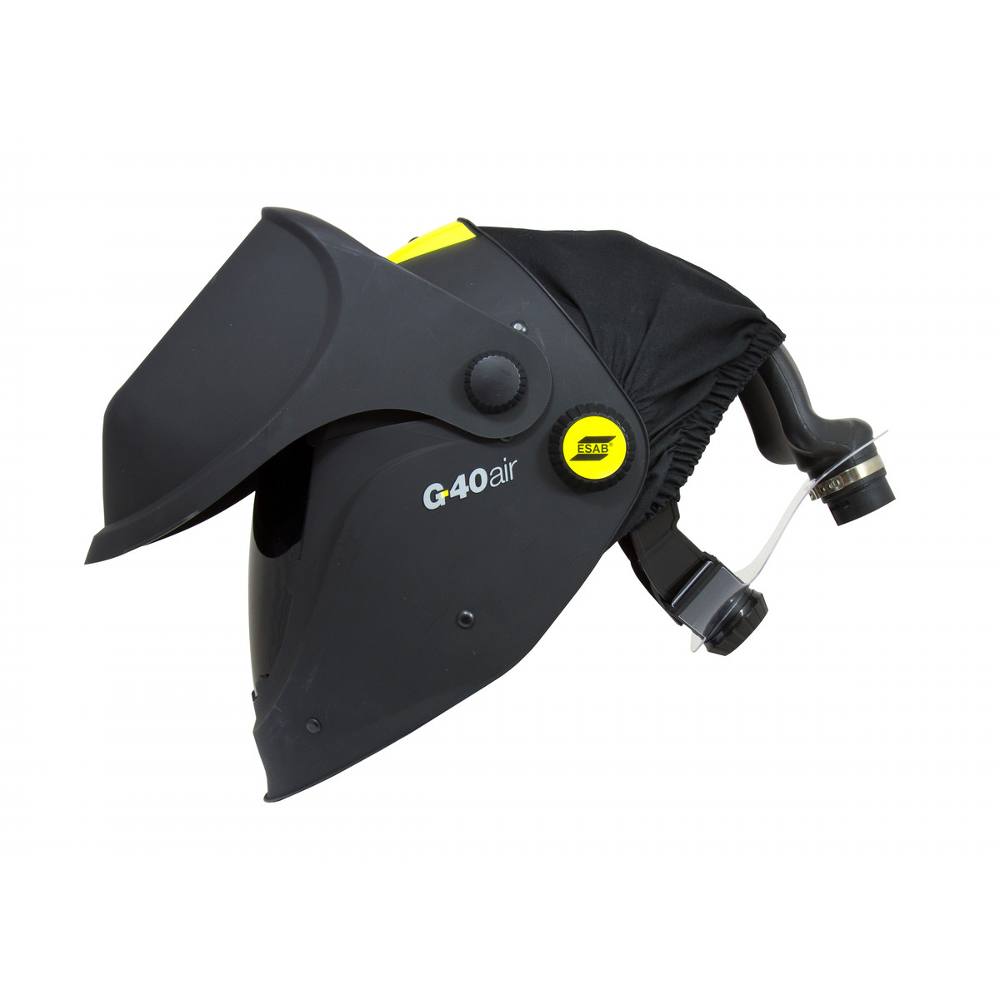

Welding Helmet G40 Air 60 x 110
ESAB

Welding Helmet G40 Air 60 x 110

£128.00 ex VAT (£153.60 inc VAT)

G40 & G50 is a combined welding and grinding helmet of which the G40 houses a passive mineral glass and the G50 houses an ADF Automatic Darkening Filter, shade levels DIN 9-13, and with flip-up visor. The large plastic lens gives the welder an unobstructed field of view when the visor is flipped up. The helmets are rated B in the impact resistance classification, which means they are approved for grinding.

Available to order – ask us for a lead time

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Free collection from our Scotstoun warehouse
  • Secure card payments
  • Expert advice: 0141 959 5666
  • Trade accounts available – apply online
SKU: 0700000439 Category: Brand:

Description

G40 & G50 is a combined welding and grinding helmet of which the G40 houses a passive mineral glass and the G50 houses an ADF Automatic Darkening Filter, shade levels DIN 9-13, and with flip-up visor.

The large plastic lens gives the welder an unobstructed field of view when the visor is flipped up.

The helmets are rated B in the impact resistance classification, which means they are approved for grinding.



Features



  • Lightweight shell
  • Automatic / fix shade options
  • Large inner grinding visor (clear)
  • Comfort headgear
  • Respiratory option with ESAB PAPR

Technical specification

Model G40
Viewing Area 60 x 110 / 90 x 110 mm
Lens Shade DIN 10
Standards EN12941 Class TH3 P R SL
Weight Standard Helmet 700 g
Weight Air Version Helmet 870 g



Part Numbers and Accessories


Part Numbers : G40, G50, G40 Air & G50 Air Helmets
G40 60 x 110 0700000436
G40 90 x 110 0700000437
G40 Air 60 x 110 Prepared for fresh air (incl. air duct and face seal) 0700000439
G40 Air 90 x 110 Prepared for fresh air (incl. air duct and face seal) 0700000440
G50 9-13 0700000438
G50 Air 9-13 Prepared for fresh air (incl. air duct and face seal) 0700000441


Accessories : G40, G50, G40 Air & G50 Air Helmets
Cradle G40 60 x 110 0700000520
Cradle G40 90 x 110 & G50 0700000519
Filter Lens 60 x 110 shade 10 Pk 25 0160292002
Filter Lens 90 x 110 shade 10 Pk 25 0760031632
Front Cover Lens G40 & G50 0700000517
Front Flip Adjustment Knob G40/G50 – Black 0700002191
G50 ADF 0700000523
Gasket for Mineral Glass G40 60 x 110 & 90 x 110 0700000521
Head & Face Seal G30, G40 & G50 0700000512
Head Gear 0700000415
Headgear Adjustment Knob Set G40/G50 – Yellow 0700002192
Headgear including air duct 0700000420
Helmet Flip without ADF – G40/G50 0700002190
Kit Bag (empty) 0700002315
Large inner Visor G30, G40 & G50 -Clear 0700000501
Lens Retainer G40 & G50 0700000518
Main Shell G30, G40 & G50 0700000515
PAPR with Long Hose 1000 mm (39.4 in.) 0700002301
PAPR with Standard Hose 850 mm (33.5 in.) 0700002300
Sweat Band 0700000414

Additional information

Weight 0.87 kg
