Description
- True multi-process performance for best-in-class MIG, Flux-cored, MMA, including challenging electrodes, and Lift TIG welding with Rebel EMP 215ic
- Exclusive sMIG (“smart MIG”) feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders.

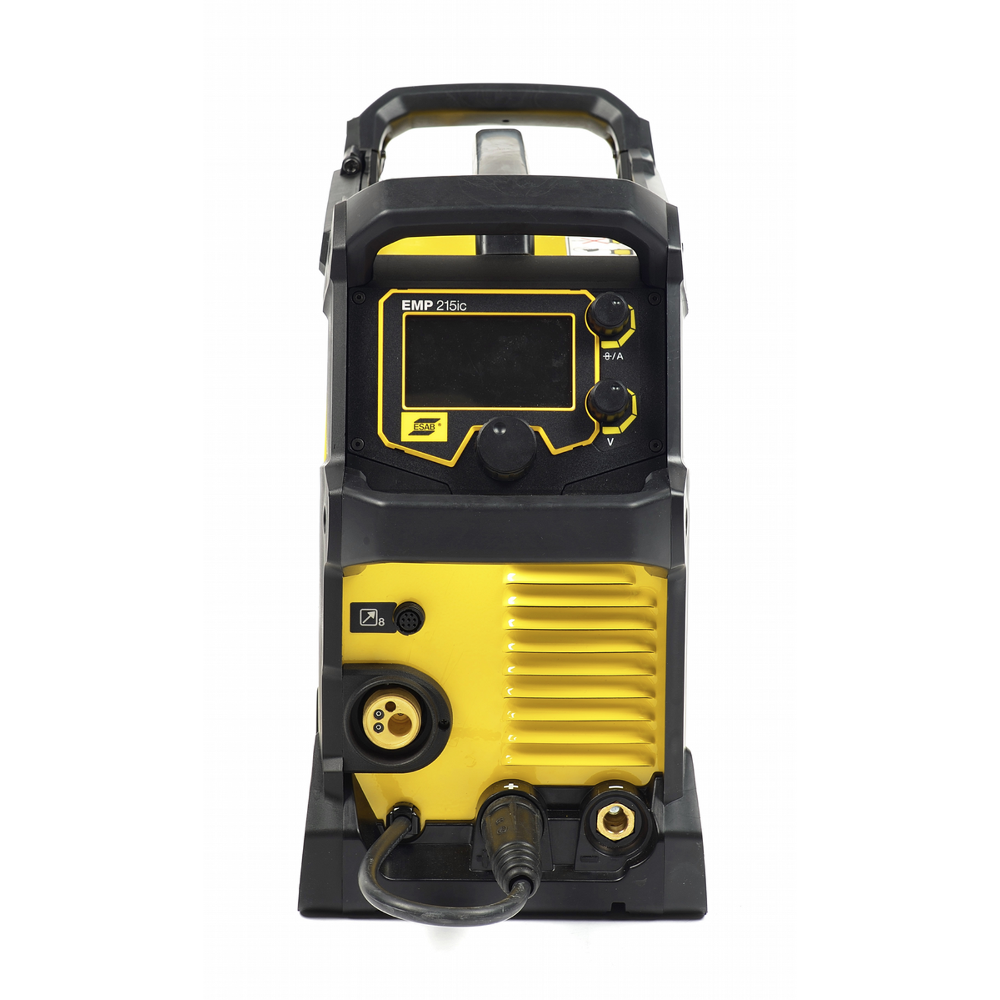

- Innovative user interface with a large TFT display to provide a clear view of the weld parameters and settings, also from a distance. The display is loaded with exclusive features: on-demand availability of the user’s manual, listing of spare parts –all in multiple languages.
- Unique, five-handle roll cage industrial design and unibody steel construction in a lightweight, highly portable unit; 3-year handle-to-handle warranty

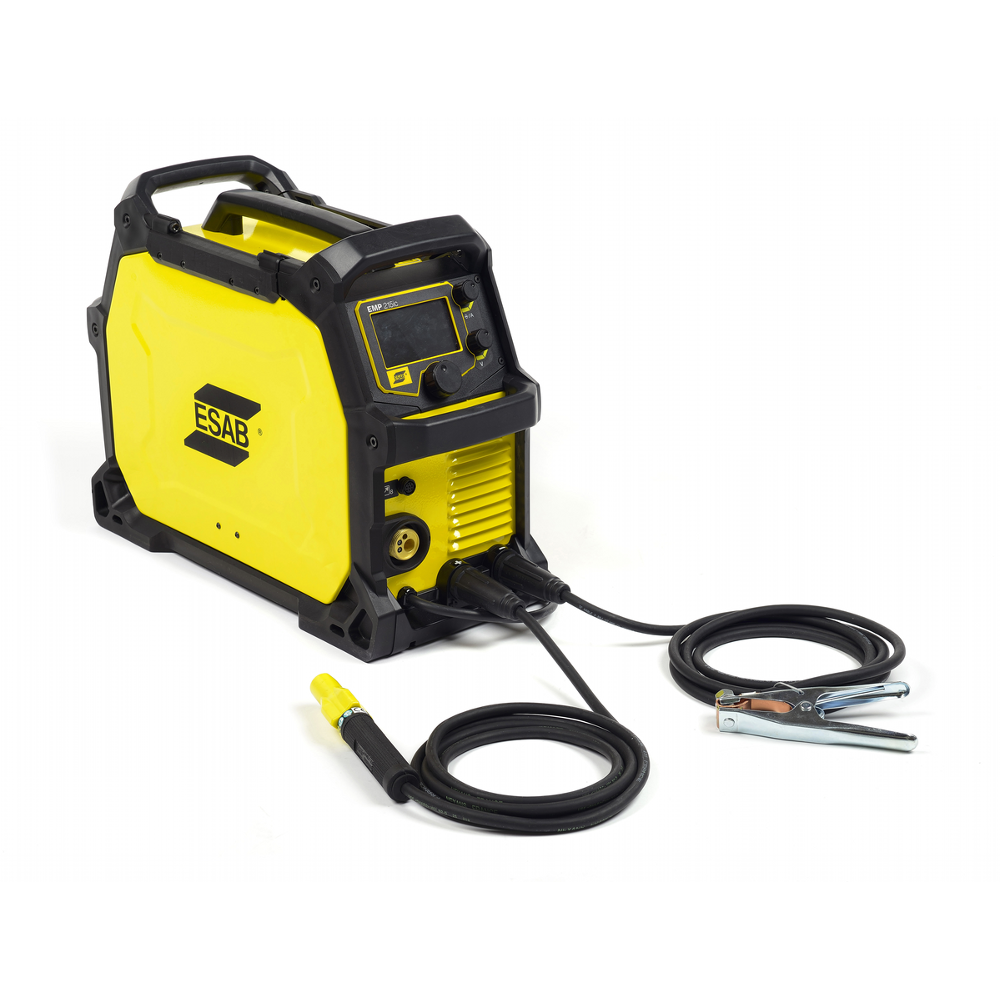

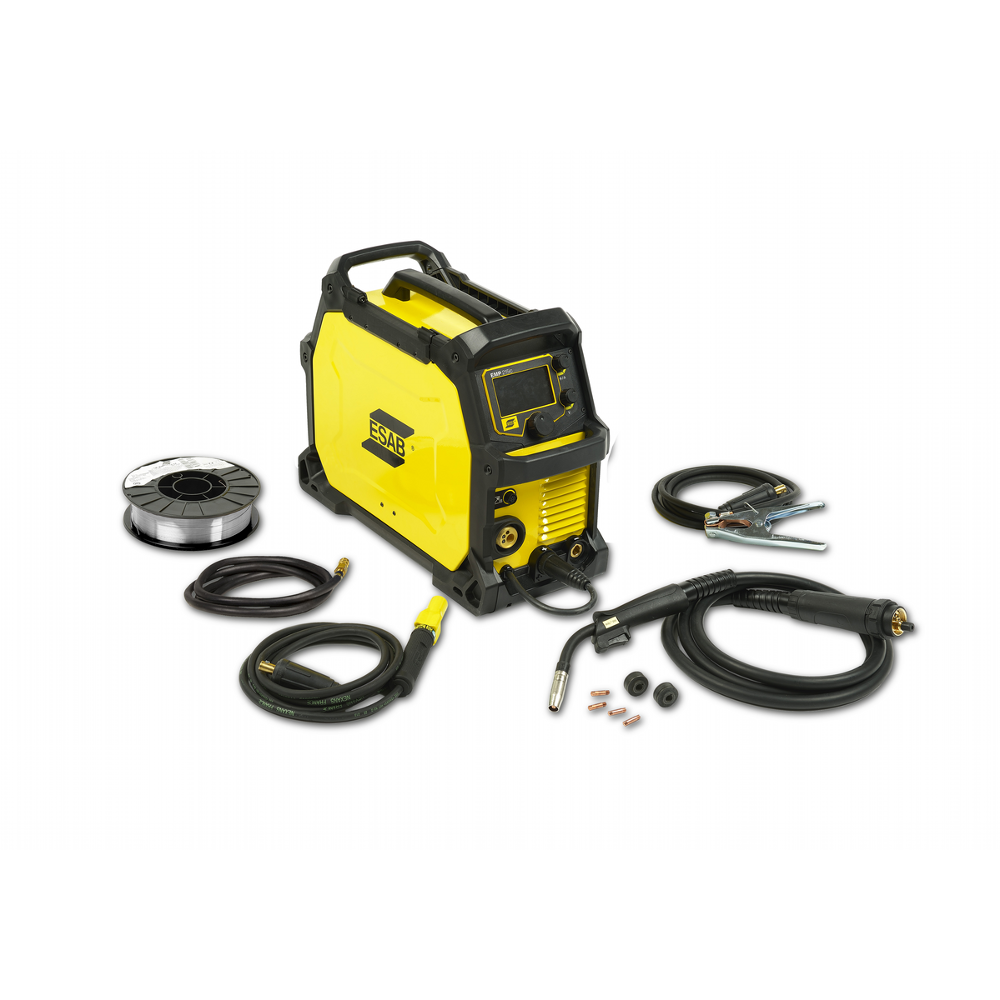

- Rebel EMP 215ic comes ready-to-weld with professional-grade ESAB MXL 200 MIG torch with euro connector, electrode and return cable kits, 200 mm spool OK Aristorod12.50 0.8 mm wire, 4,5 m gas hose with quick connector, contact tips and drive rolls for 0.6 –1.0 mm wire.
Industries
- Automotive
- Agricultural Equipment
- Civil Construction
- Repair and Maintenance
- Light Fabrication
- Automotive Bodies
- HVAC
Welding Process
- SMAW/MMA (Stick)
- GMAW (MIG/MAG)
- FCAW (Flux Core)
- GTAW-DC (TIG DC)
Details
The Rebel™ Series Welding Machines offer 120/230V flexibility and some of the most innovative welding technology available.
A breakthrough design inspired by professional welders, the Rebel is a complete package to weld anything – mild steel, aluminium, stainless steel – and go anywhere.
Technical specification
Rebel EMP 215ic comes ready-to-weld with ESAB MXL 200 MIG torch, electrode and return cable kits, 200 mm spool OK Aristorod 12.50 0,8 mm wire, 4.5 m gas hose with quick connector, contact tips and drive rolls for 0,6 – 1,0 mm wire
Dimensions
| Length |
584 mm (23 in.) |
| Width |
229 mm (9 in.) |
| Height |
406 mm (16 in.) |
Weight
Power Specifications
| Conditional Statement |
MIG Welding |
|
| Max Output (A) |
|
240 A |
| Max Output (V) |
|
26 V |
| Open Circuit Voltage |
|
68 V |
| Protection Class |
|
IP23S |
| Voltage Range (V) |
10-26 V |
90-270 V |
| Current Range(A) |
|
5 – 150 (120V) 5 – 240 (230V) A |
| Supply Plug |
|
230 V, Schuko 16A plug |
Wire Feeder Specifications
| Metal |
Flux Cored |
| Wire Diameter |
0.8-1.2 mm (0.030-0.045 in.) |
| Metal |
Mild Steel |
| Wire Diameter |
0.6-1.0 mm (0.024-0.035 in.) |
| Metal |
Stainless Steel |
| Wire Diameter |
0.8-1.0 mm (0.030-0.035 in.) |
| Metal |
Aluminium |
| Wire Diameter |
0.8-1.2 mm (0.030-0.047 in.) |
| Max Spool Diameter |
100 & 200 mm (4 & 8 in.) |
| Wire Feed Speed |
1.5-12.1 m/min (60 – 700 in./min) |
Arc Gun Consumables
| Use With Welding Material |
9.5 mm (3/8 in.) |
| Conditional Statement |
Max Plate Thickness |
Arc Holders Clamps & Misc
Welding Output
| MIG (GMAW) |
130 A/20.5V @ 20% |
205 A/24.3V @ 25% |
| MMA (SMAW) |
90 A/23.6V @ 40% |
180 A/27.2V @ 25% |
| TIG (GTAW) |
130 A/15.2V @ 40% |
180 A/17.2V @ 30% |
Input Voltage
| Voltage |
120/230 V |
| Phase |
1 |
| Frequency |
50/60 Hz |
Specifications
| Standards |
CSA E60974-1-00; CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS |
| MCableX |
3 m 3×2,5 mm² H07RN-F |
