Description

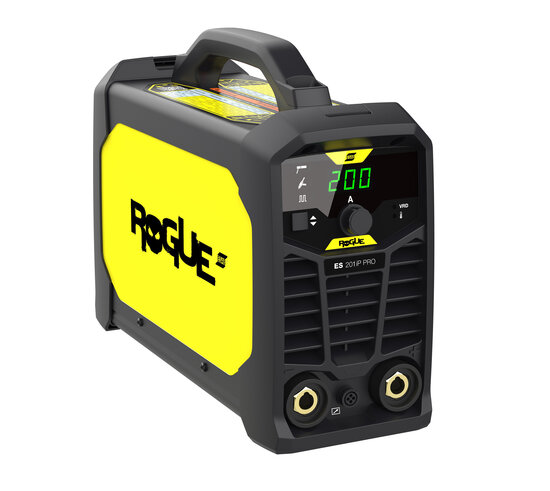

The Rogue ES is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and Digital control; ensuring a precise consistent arc.
The Rogue ES provide a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. Featuring adjust Arc Force and Hot Start settings for more control over your arc. Digital micro-processor offer more control over all arc parameters and provides best-in-class welding performance. The Rogue ES 181iP/ 181iP PRO/ 201iP PRO can be used with electrodes up to 4.0 mm and Rogue ES 151iP can tackle up to 3.2 mm electrodes.
New Pulse MMA functionality enhances the performance and improves the heat input control, to minimize thin gauge materials distortion, facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid a number of welding defects.
Rogue ES can TIG weld mild-steel or stainless steel via “LIVE TIG” functionality for even more versatility.
Technical specification
| Specifications | |
|---|---|
| Input Voltage | 120-230 ±15% VAC , 1 Φ, 50/60 Hz |
| Stick (SMAW) Welding Output | 200 A28.0 V (230 V) @ 25 % Duty Cycle 129 A25.2 V (230 V) @ 60 % Duty Cycle 100 A24.0 V (230 V) @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 200 A18.0 V (230 V) @ 25 % Duty Cycle 129 A15.2 V (230 V) @ 60 % Duty Cycle 100 A14.0 V (230 V) @ 100 % Duty Cycle |
| Setting Range | 10-140 A 10-200 A |
| Current Range | 10-200 A |
| Open Circuit Voltage | 78 VDC |
| Energy Save Mode | 50 W |
| Operating Temp | -10 to +40 °C |
| rated kVA | 6.9 kVA |
| Enclosure Class | IP23S |
| Dimensions, L x W x H | 403 x 153 x 264 mm |
| Weight | 8.4 kg |
