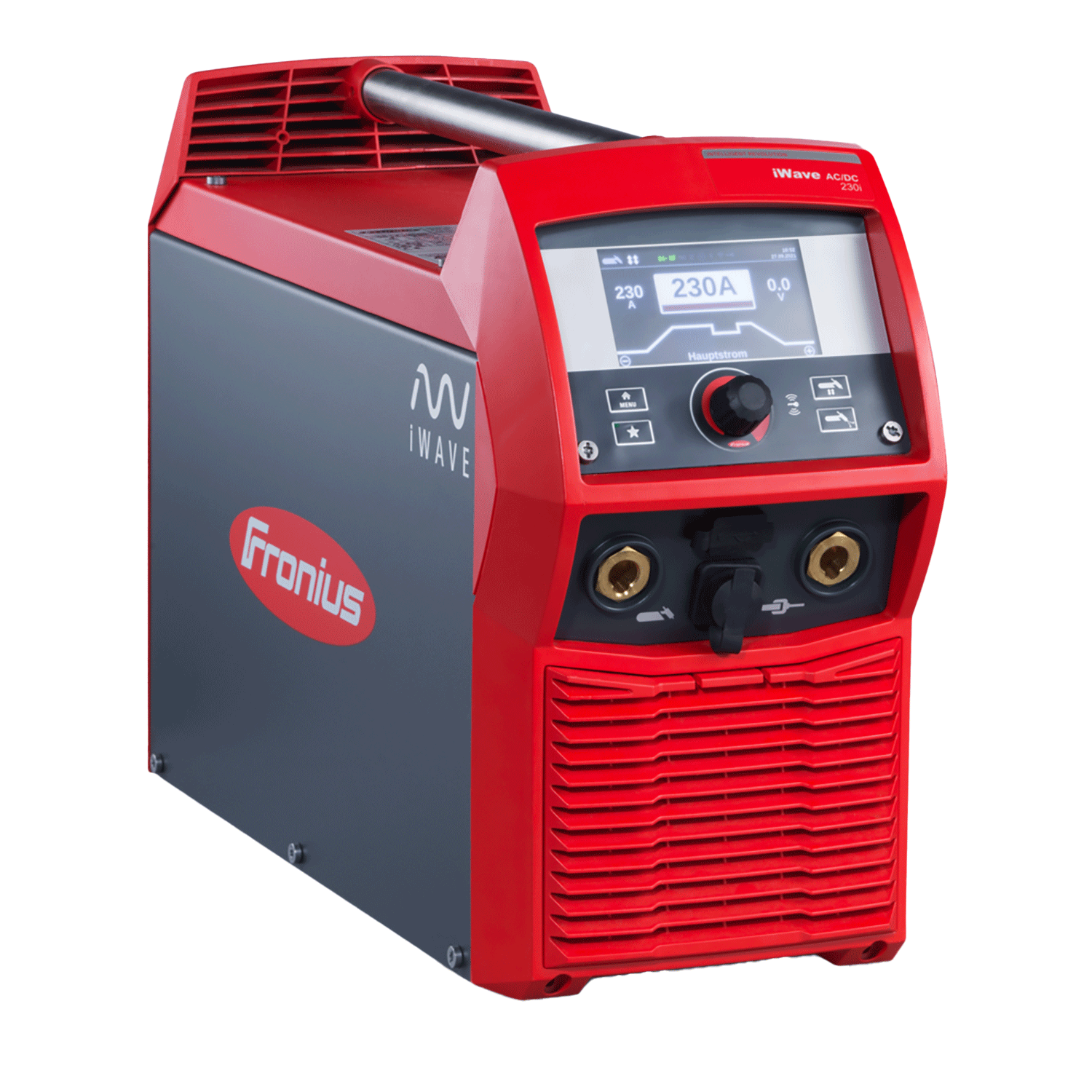

Fronius iWave 230i AC DC MV 110V-230V Air Cooled Package

£3,650.00 ex VAT (£4,380.00 inc VAT)

Fronius iWave 230i AC/DC MV TIG welder, 230 A, 110V or 230V, gas-cooled package with THP 220i Up/Down torch and earth lead. Ideal for aluminium.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982

Available to order – usually despatched in 2–5 working days

Need it by a certain date?

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: 4.075.219.008 Category: Brand:

Product video

Video from YouTube: HowTo | Set up iWave (TIG)

Description

Max current230 A
OutputAC/DC
Input110V or 230V
Weight17 kg

The iWave 230i is a fully digital AC/DC TIG welder, especially good on aluminium. It runs on 110V or 230V and connects to helmets, remote controls and phones via Bluetooth, WiFi and NFC.

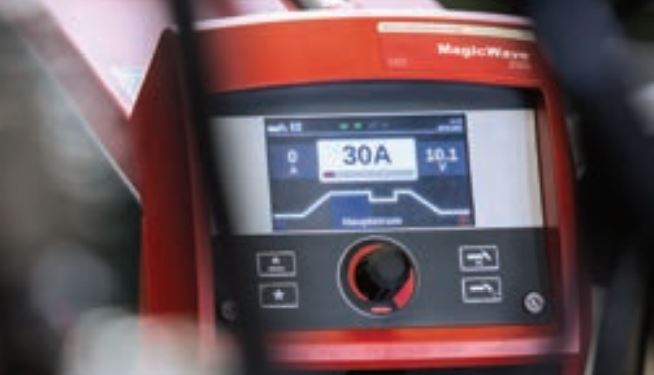

Active Wave keeps the AC arc stable and remarkably quiet (under 80 dBA at 210 A), and a bright 4.3-inch colour display makes setting up simple, even in gloves.

Features

  • Active Wave: a stable, low-noise AC arc.
  • TAC tacking: one spot is enough to join two pools.
  • HF or touchdown ignition: touchdown for sensitive areas.
  • Automatic cap-shaping: saves time on aluminium.
  • 2 kHz pulse as standard: up to 10 kHz with PulsPro; up to 999 jobs with the Job package.
  • Connected: Bluetooth, WiFi and NFC.

What’s in the box

  • iWave 230i MV power source
  • THP 220i G gas-cooled TIG torch, 4 m, Up/Down control
  • TTB 220P G Multilock torch head, 70°
  • Earth lead 3 m

Also available as a water-cooled package; ask us for a price.

Specifications

Welding output
Duty cycle (10 min, 40 °C)230 A at 35%, 195 A at 60%, 165 A at 100%
Operating voltage10.1-19.2 V
Open-circuit voltage100 V
Electrical
Mains supply110V or 230V, 50/60 Hz
Mains fuse16 A at 230V, 32 A at 110V
Physical
CoolingGas-cooled (water-cooled package available)
Dimensions (L × W × H)558 × 210 × 369 mm
Weight17 kg
ProtectionIP23

Downloads
