Fronius iWave 300i AC/DC Watercooled Package

£10,995.00 ex VAT (£13,194.00 inc VAT)

Fronius iWave 300i AC/DC water-cooled TIG package, 300 A, 415V 3-phase, with CU 1100i cooler, TU Car 4 Pro trolley, THP 300i torch and PulsPro, Jobs and CycleTIG options.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982

In stock (1) – order by 2pm for next-day delivery

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: IW-300-WC-ACDC Category: Brand:

Product video

Video from YouTube: iWave | The intelligent TIG welding system

Description

Max current300 A
Duty cycle300 A at 40%
OutputAC/DC
Input415V 3-phase
CoolingWater-cooled

The iWave 300i AC/DC is Fronius’s no-compromise TIG system: targeted heat input, quicker ignition and full control of the arc on every material, including aluminium.

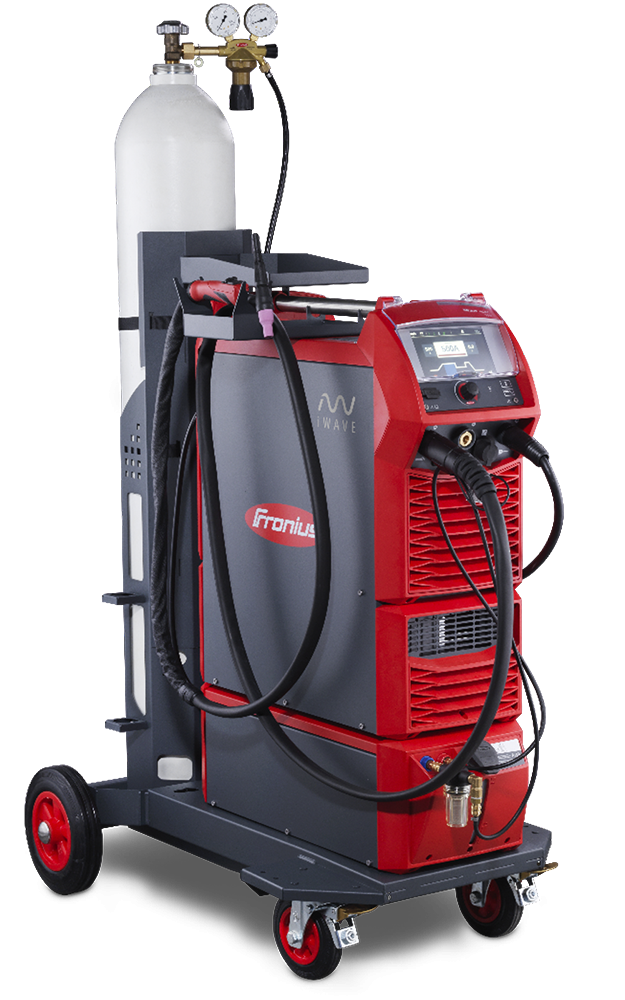

This complete water-cooled package comes on a 4-wheel trolley with the CU 1100i cooler and a 300 A LED torch, plus the PulsPro, Jobs and CycleTIG function packages already loaded.

Features

  • CycleTIG: precise heat input and a safe hold on the weld pool, even on the thinnest material.
  • Faster, cleaner ignition: significantly shorter ignition delays.

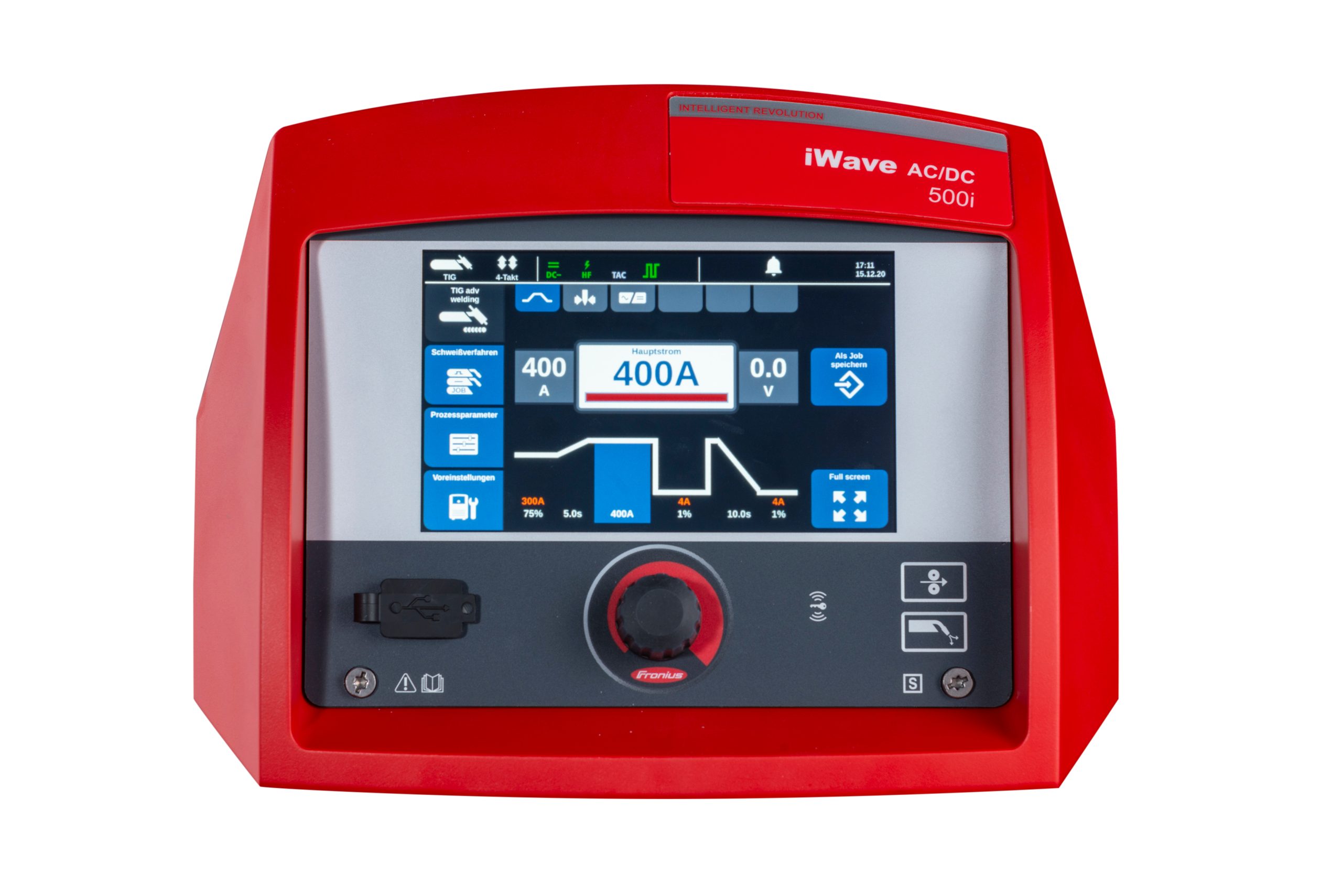

  • Intuitive menus: graphics-based navigation in over 30 languages.
  • PulsPro and Jobs included: high-frequency pulse and saved job settings.
  • Multiprocess PRO ready: add MIG/MAG welding packages later (Standard, Pulse, PMC, LSC, CMT).
  • Connected: WiFi, Bluetooth and NFC built in.

What’s in the box

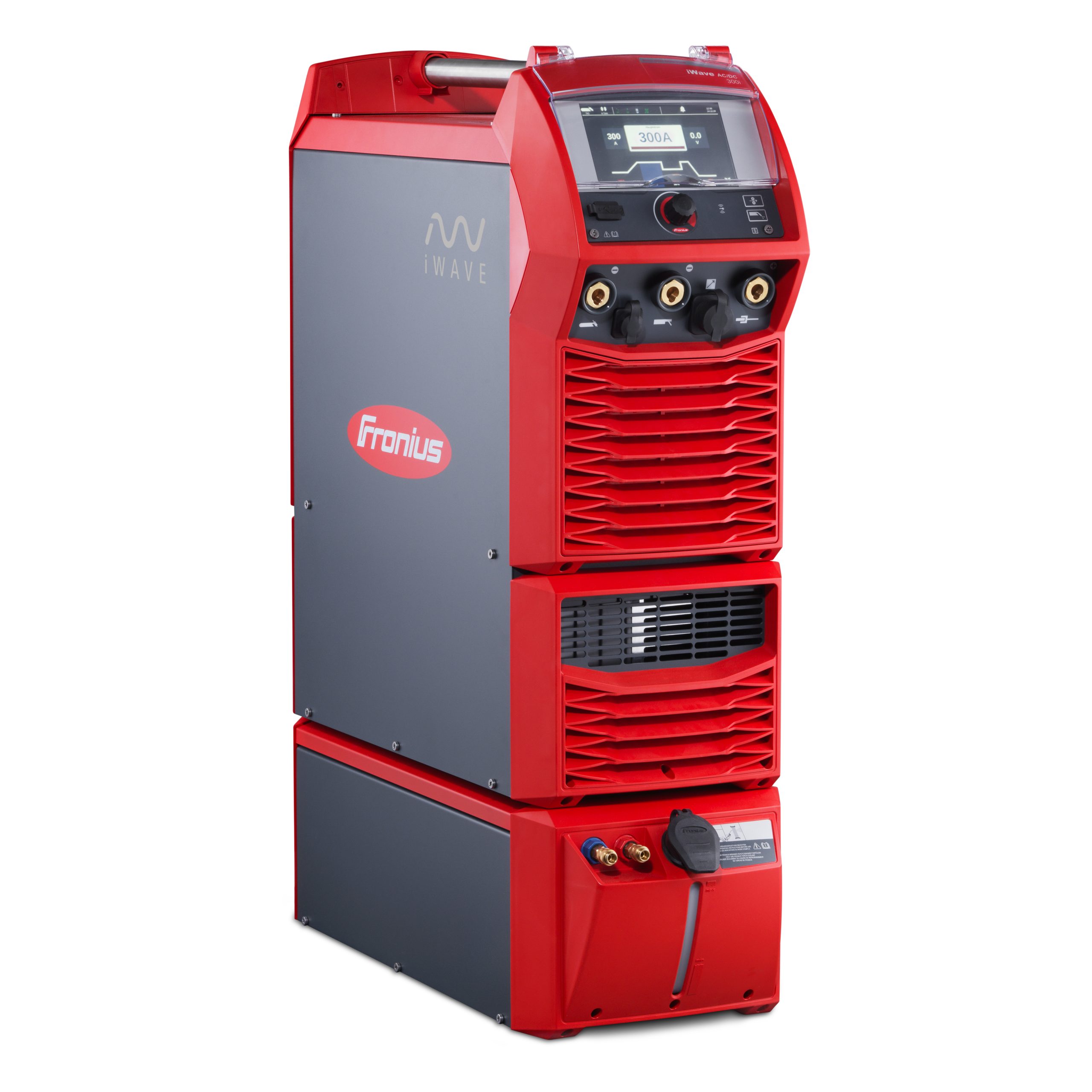

  • iWave 300i AC/DC power source
  • OPT/i Jobs, OPT/i Puls Pro and OPT/i CycleTIG function packages
  • NFC/Bluetooth/WiFi inside and dust filter
  • CU 1100i cooling unit
  • TU Car 4 Pro 4-wheel trolley
  • THP 300i W water-cooled TIG torch lead, 4 m, Up/Down, LED
  • TTB 300A W Multilock torch head, 70°
  • Ground cable 70 mm², 4 m

Specifications

Welding output
Duty cycle (10 min, 40 °C)300 A at 40%, 260 A at 60%, 240 A at 100%
Open-circuit voltage96 V
ProcessesTIG AC/DC, MMA (MIG/MAG with Multiprocess PRO)
Electrical
Mains supply3 × 400V ±15%
Physical
CoolingWater-cooled, CU 1100i
Dimensions on trolley (L × W × H)706 × 300 × 740 mm
Weight64.4 kg
ProtectionIP23
