Powermax65 SYNC 400V plasma with single-piece cartridge consumables and a SmartSYNC torch that sets itself up. Cuts 20 mm recommended and severs 32 mm. Supplied with a 7.6 m 75° hand torch.
The Powermax65 SYNC is Hypertherm’s next-generation 20-65 A air plasma. Its SmartSYNC torch reads the single-piece cartridge fitted and sets the amperage and operating mode for you, so there’s nothing to get wrong.
It cuts 20 mm mild steel at production speed and severs up to 32 mm. Cartridges last up to twice as long as standard consumables for hand cutting, which cuts downtime, training and stock-holding.
Features

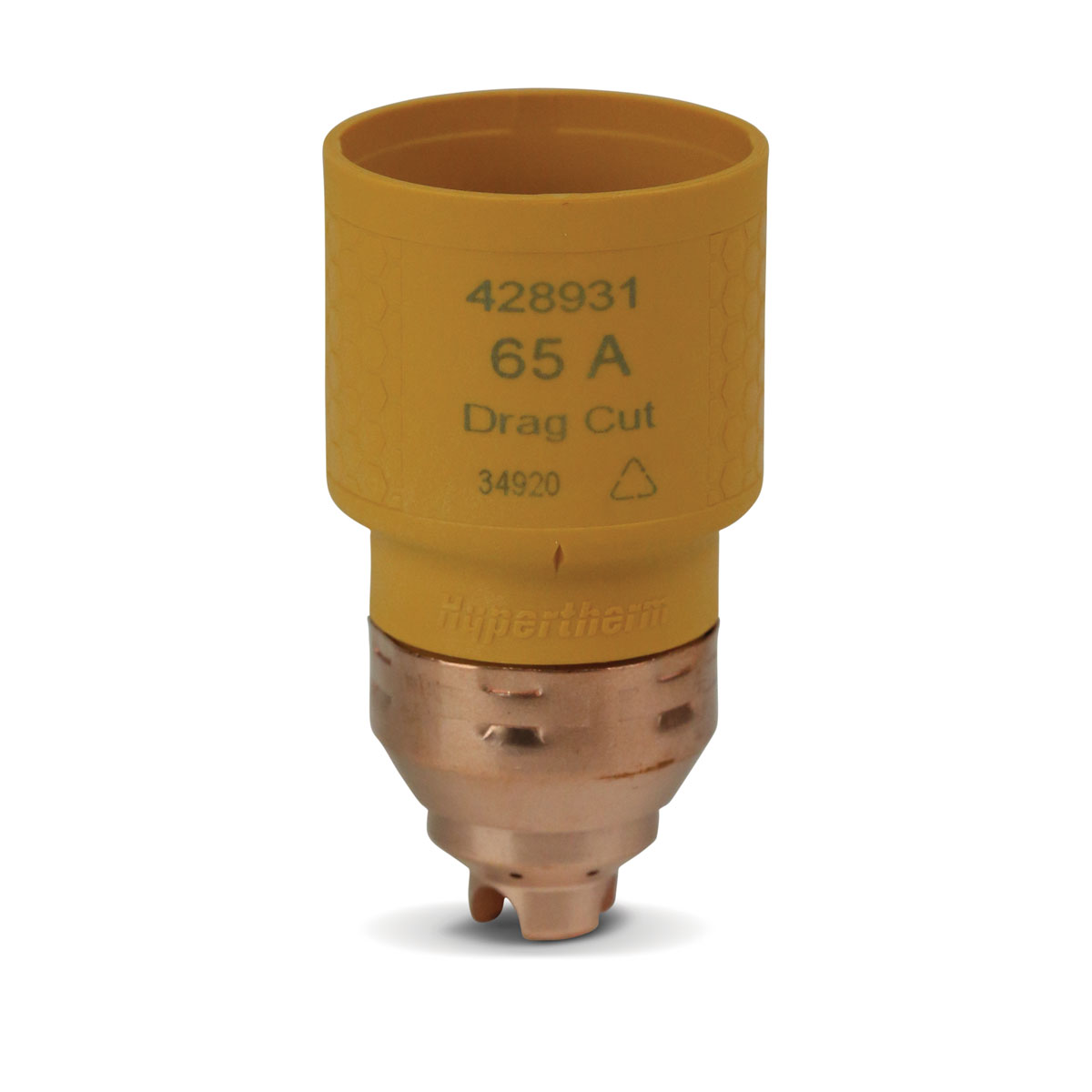

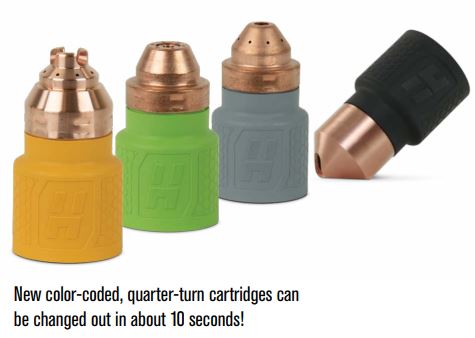

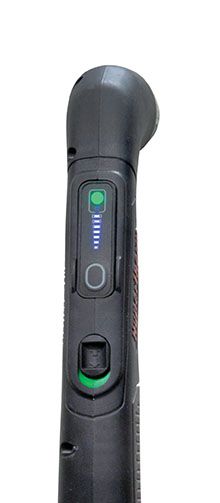

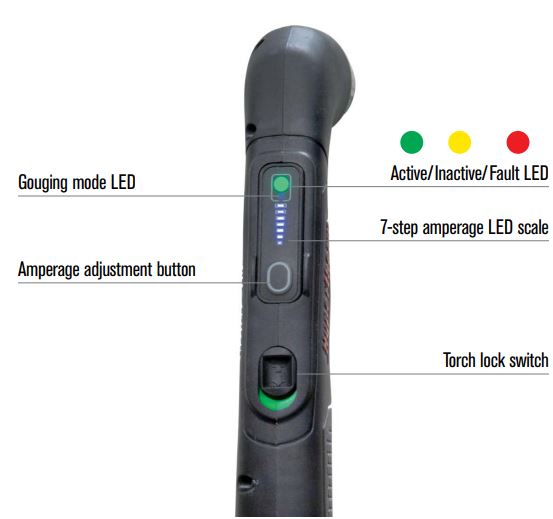

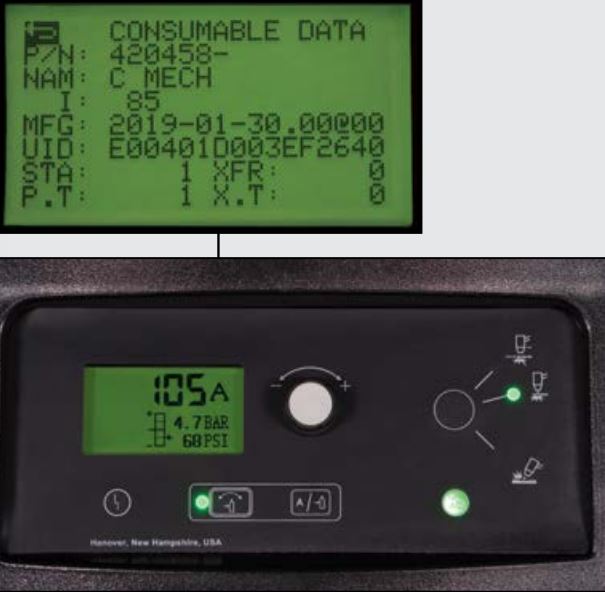

Colour-coded cartridges. Single-piece cartridge consumables, colour-coded by process, so the wrong parts can’t be mixed up and stock is simpler.SmartSYNC torch. Reads the cartridge and sets amperage and mode automatically, removing set-up errors.End-of-life detection. The display tells the operator when to change the cartridge, and cartridge data can be used to track usage.

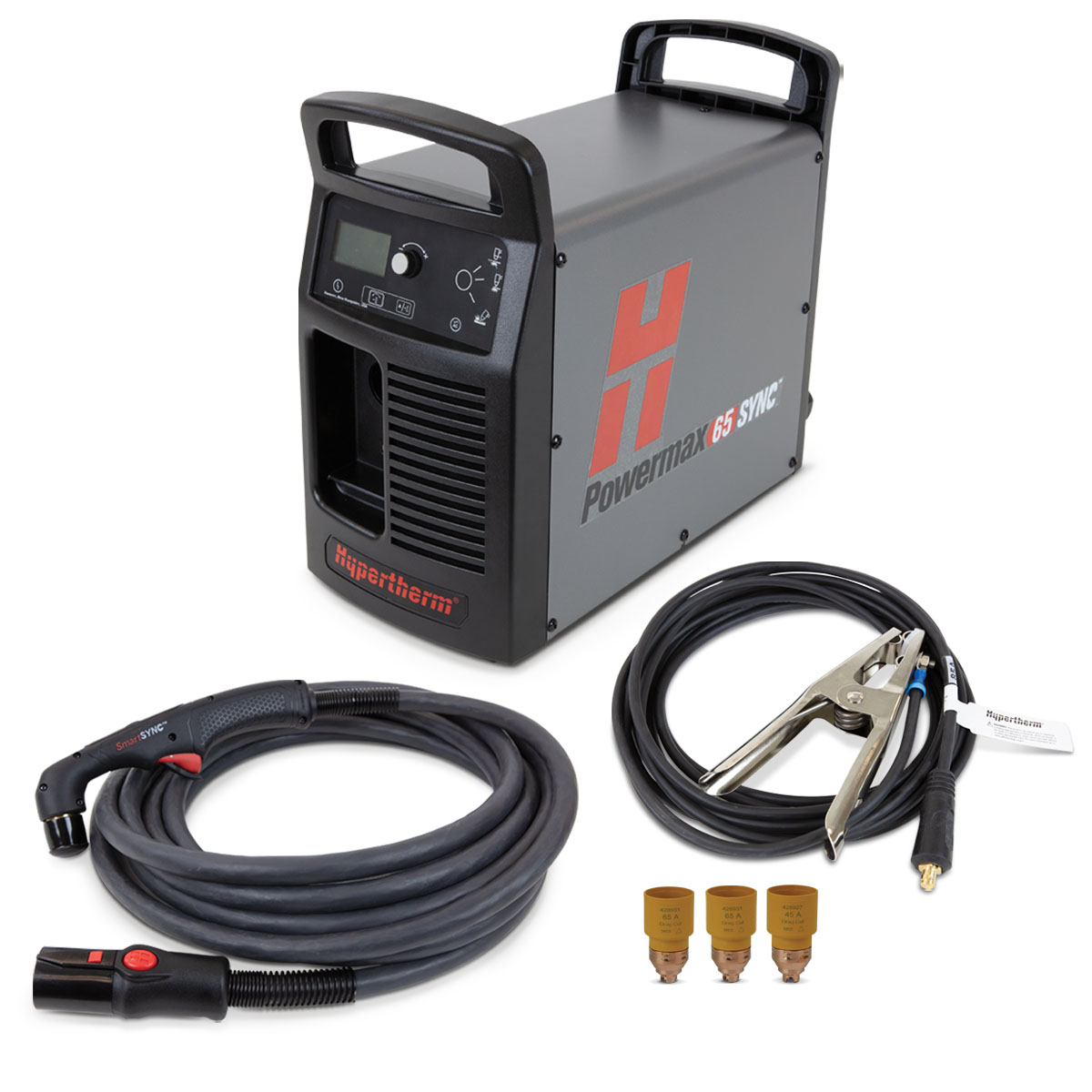

What’s in the box
Powermax65 SYNC power source (400V)
SmartSYNC 75° hand torch, 7.6 m lead, with starter cartridges
Earth return cable
Operating manual
Specifications
Cutting capacity
Recommended
20 mm at 500 mm/min
Maximum cut
25 mm at 250 mm/min
Severance
32 mm at 125 mm/min
Pierce (hand or with height control)
16 mm
Gouging
4 kg/hour metal removal
Electrical
Input voltage
380/400V, 3-phase, 50/60 Hz
Output current
20-65 A
Rated output voltage
139 VDC
Output power
9 kW
Duty cycle at 40 °C
50% at 65 A, 100% at 46 A
Open circuit voltage
270 VDC
Power supply type
Inverter, IGBT
Generator requirement
15 kW for full 65 A output
Air supply
Air source
External compressor (clean, dry, oil-free air or nitrogen)
Inlet flow and pressure
Cutting 210 l/min at 5.9 bar; gouging 210 l/min at 4.8 bar
