Description
Easy to use
- Small size and light weight provide exceptional portability for a 16 mm (5/8″) rated cutting system
- Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
- Smart Sense™ technology ensures that air pressure is always correctly set
- Outstanding versatility
CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation, a wide range of torch and consumable styles to choose from for both handheld and automated processes.
Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking.
Maximum productivity
- Finish jobs faster, with cut speeds 1.5 times greater than oxyfuel on 6 mm (1/4″) mild steel
- Superior cut and gouge quality reduces time for grinding and edge preparation
- New torch disable switch feature allows faster, easier changeout of consumables
Rugged and reliable
- Duramax® Lock torches are designed for high-impact and heat resistance
- SpringStart™ technology ensures consistent starting and optimum torch performance
- Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments
- Designed for low environmental impact
- Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
- All plasma system components are recyclable.
- 14% lighter than its predecessor and delivers more cutting power
Details

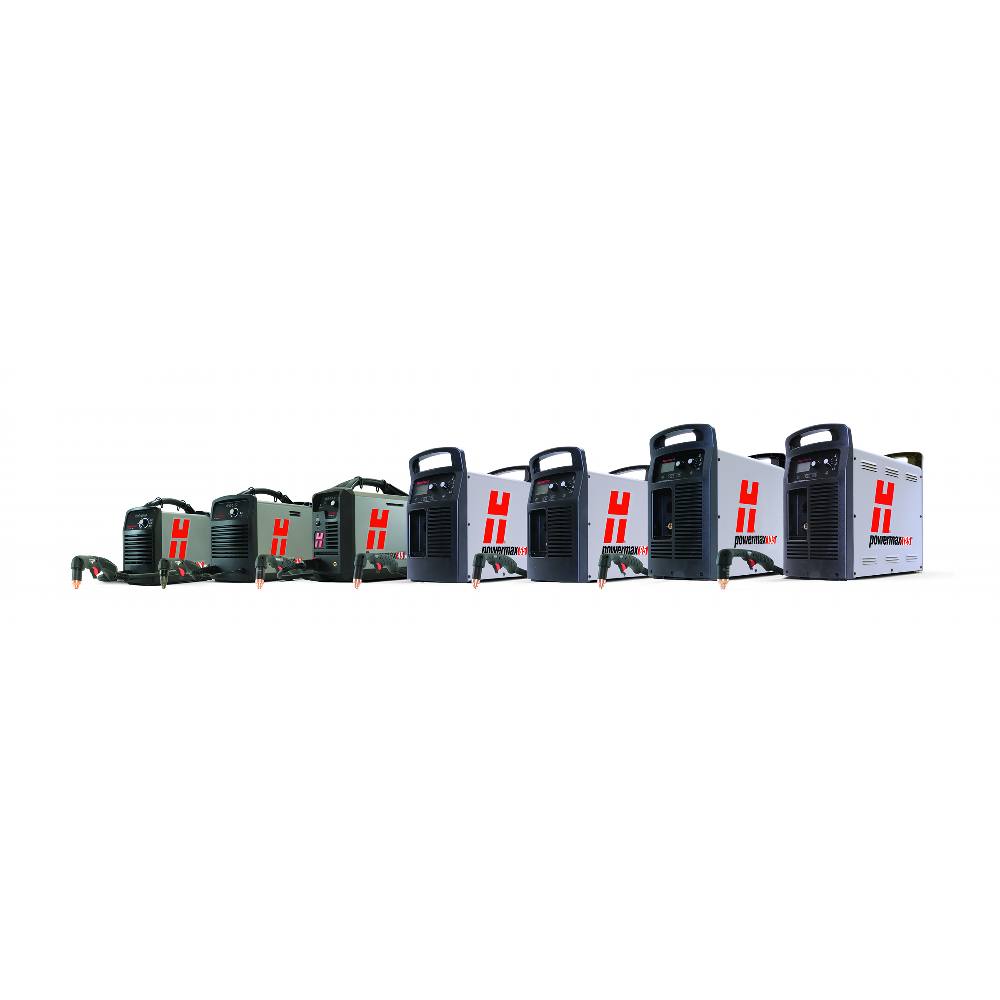

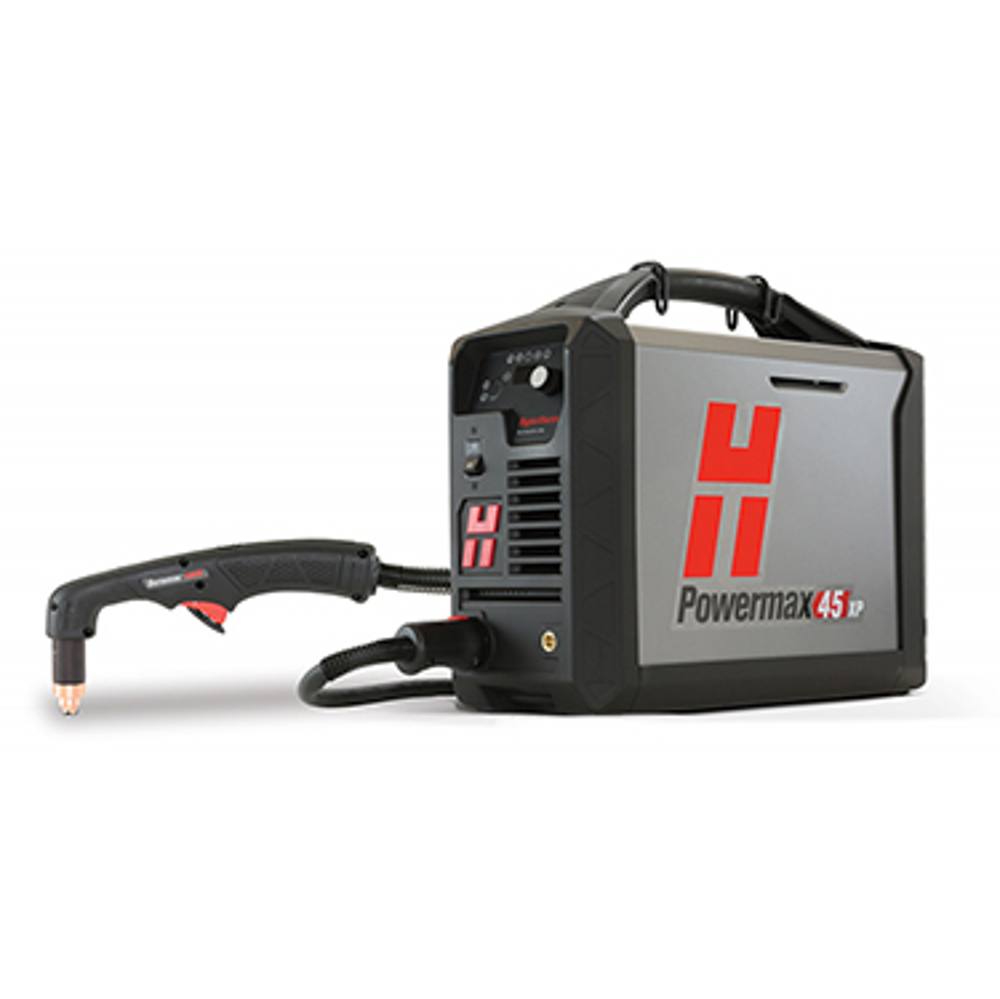

Meet the newest member of our best-selling line of Powermax® portable plasma systems. The Powermax45® XP delivers increased cut capacity – up to 16 mm (5/8”) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation.
Technical specification
This is the standard 415V power supply package and includes the 6.1m 75° hand torch. Please contact us if you need a different configuration or package.
| Input voltages (± 10%) |
CSA | 200 – 240 V, 1-PH, 50-60 Hz OR 480 V, 3-PH, 50-60 Hz1 |
|---|---|---|
| CE/CCC | 230 V, 1-PH, 50-60 Hz OR 400 V, 3-PH, 50-60 Hz |
|
| Input current @ 6.5 kW |
CSA | 200 – 240 V, 1-PH, 39/32 A OR 480 V, 3-PH, 9.4 A1 |
| CE/CCC | 230 V, 1-PH, 33 A OR 400 V, 3-PH, 10 A |
|
| Output current | 10–45 A | |
| Rated output voltage | 145 VDC | |
| Duty cycle @ 40° C (104° F) |
CSA |
50% @ 45 A, 200 – 240 V, 1-PH |
| CE/CCC | 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH |
|
| Open circuit voltage (OCV) | 275 VDC (200 – 240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC) |
|
| Dimensions with handles | 442 mm (17.4″) D; 173 mm (6.8″) W; 357 mm (14.1″) H | |
| Weight with 6.1 m (20′) torch | CSA | 14 kg (31 lbs.) |
| CE/CCC | 15 kg (33 lbs.) | |
| Gas supply | Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean dry and oil-free) argon |
|
| Recommended gas inlet flow rate / pressure |
188 I/min (400 scfh) @ 5,9 bar (90 psi) | |
| Input power cable length | 3 m (10′) | |
| Power supply type | Inverter – IGBT | |
| Engine drive requirement | 12.5 kVA (10 kW) for full 45 A output | |
| Electrical efficiency | 88% | |
| Recyclability | 100% | |
| Certifications | CSA certified for use in the Americas and Asia, except China. CCC for use in China. CE, RCM, GOST-TR, UkrSEPRO, and Serbian AAA for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. | |
| Warranty | Power supply: 3-year Torch: 1-year |
|
