ESAB HandyPlasma 35i 230V Package

£795.00 ex VAT (£954.00 inc VAT)

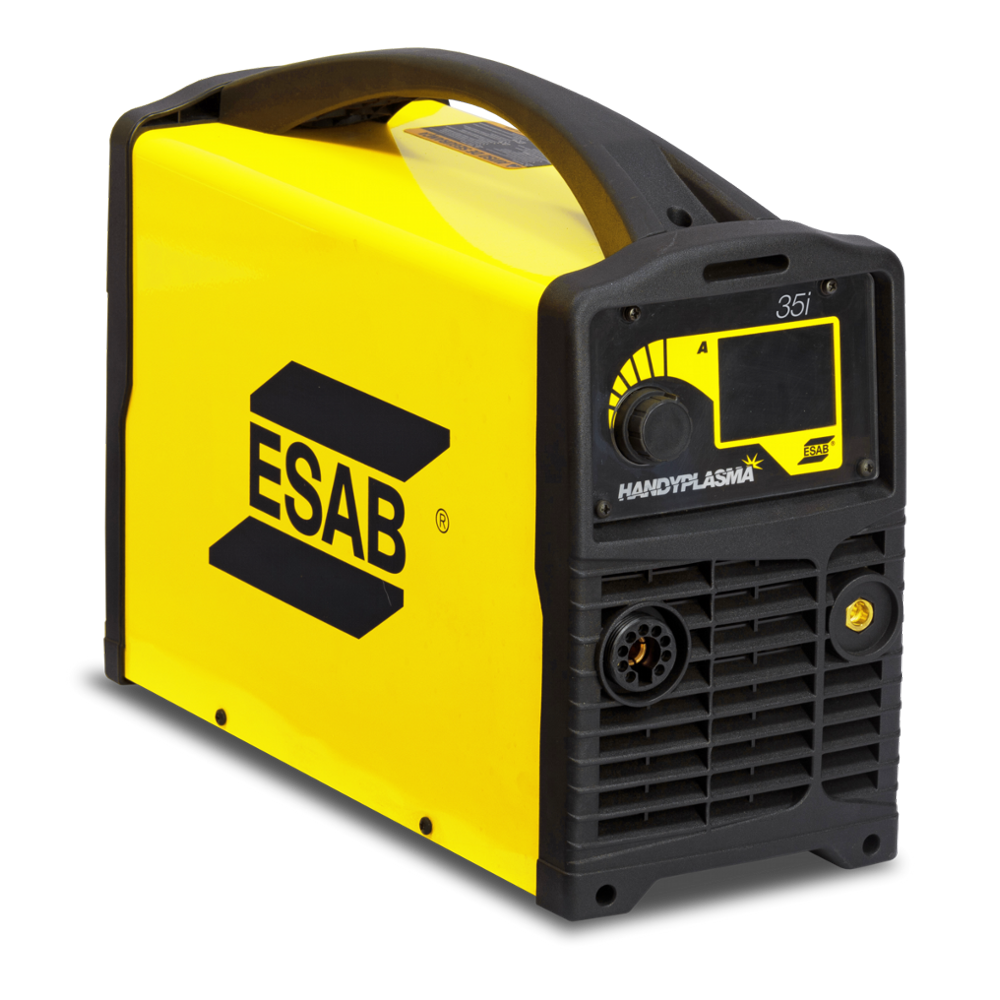

ESAB’s entry-level 230V hand plasma cutter. Cuts mild steel up to 12 mm (6 mm recommended) and weighs 13.5 kg with its 60A torch. One-knob set-up; runs from a compressed air line.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982
  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: 0559160135 Category: Brand:

Product video

Video from YouTube: ESAB HandyPlasma - Manual Plasma Cutting Machine

Description

Recommended cut6 mm
Max cut12 mm
Duty cycle35% at 35 A
Input230V 1-phase
Weight13.5 kg

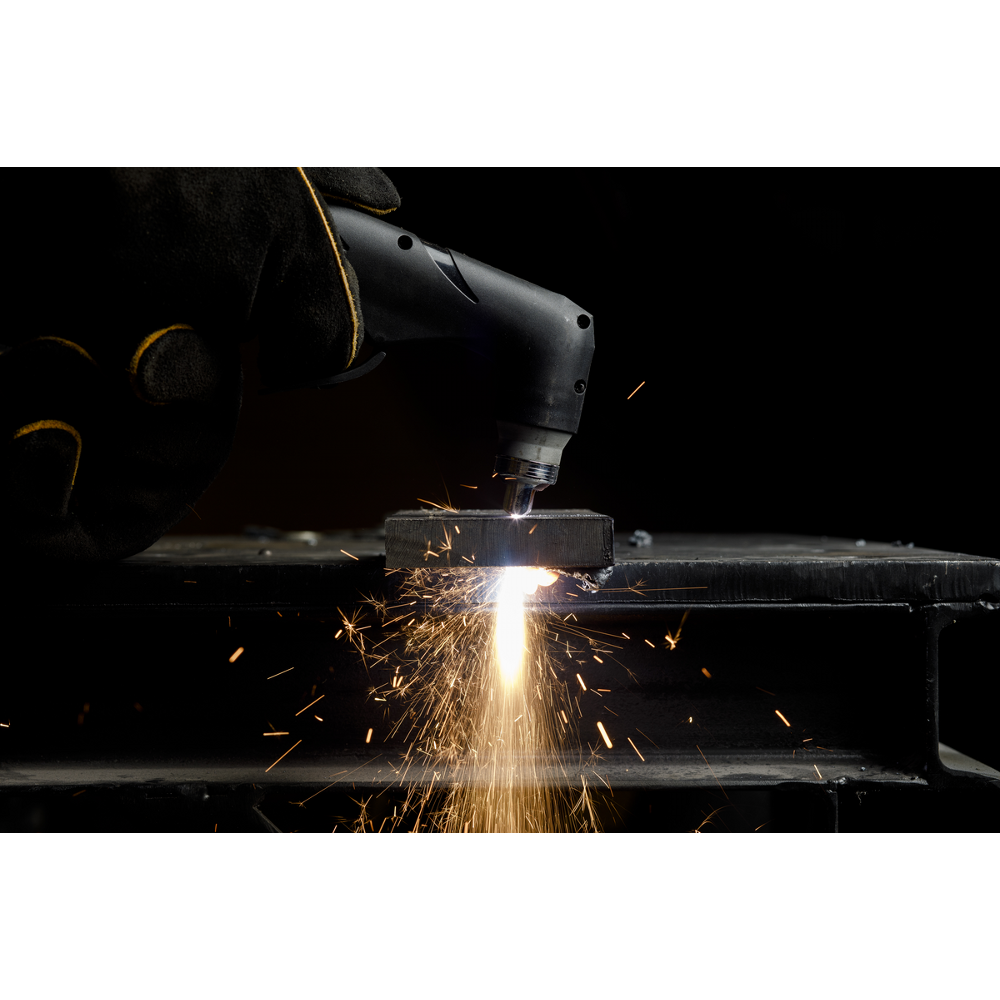

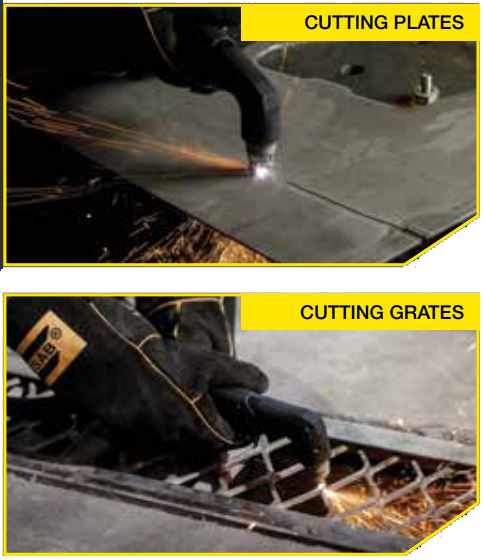

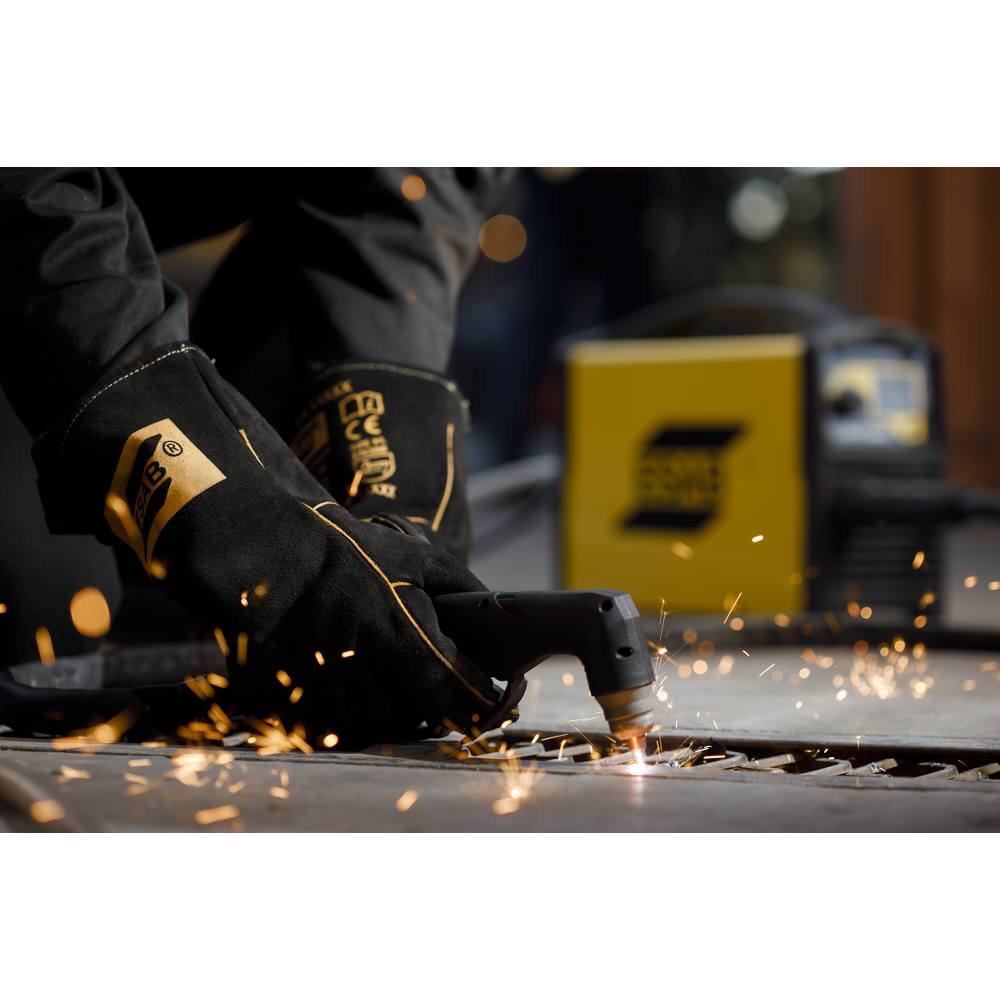

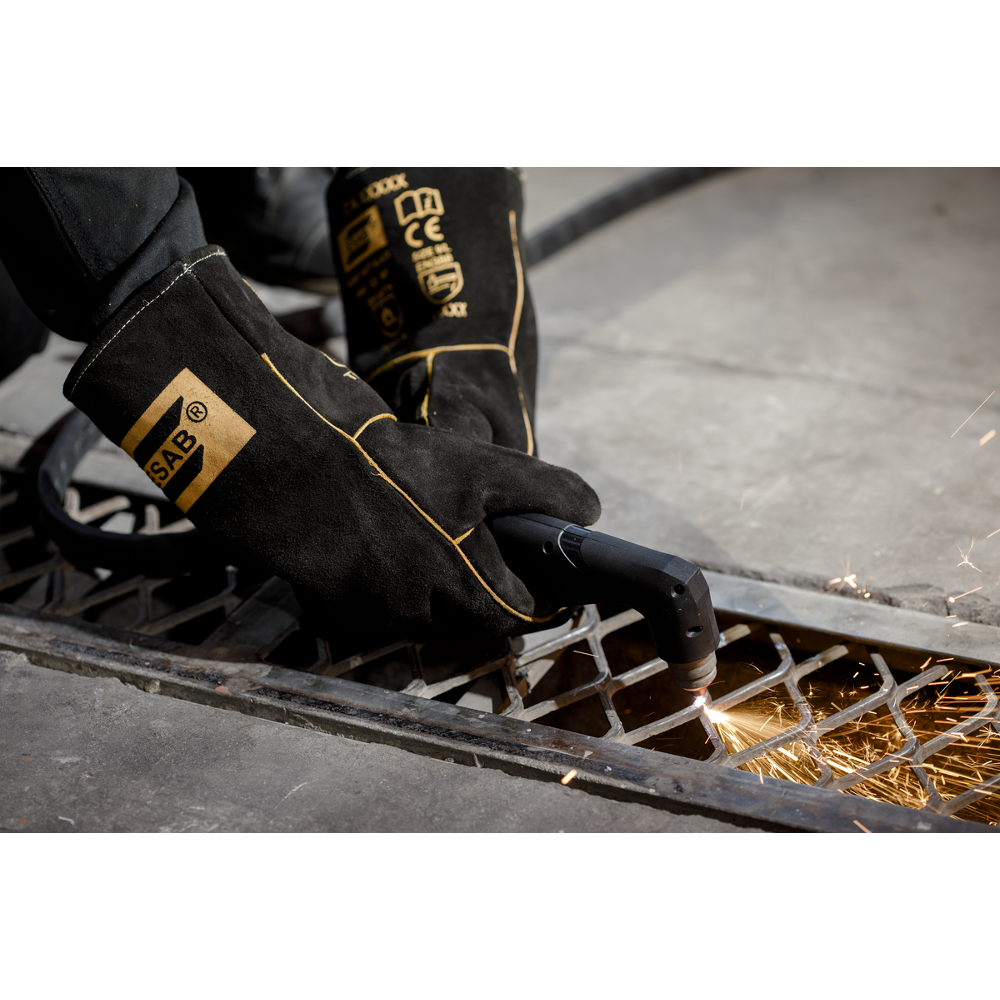

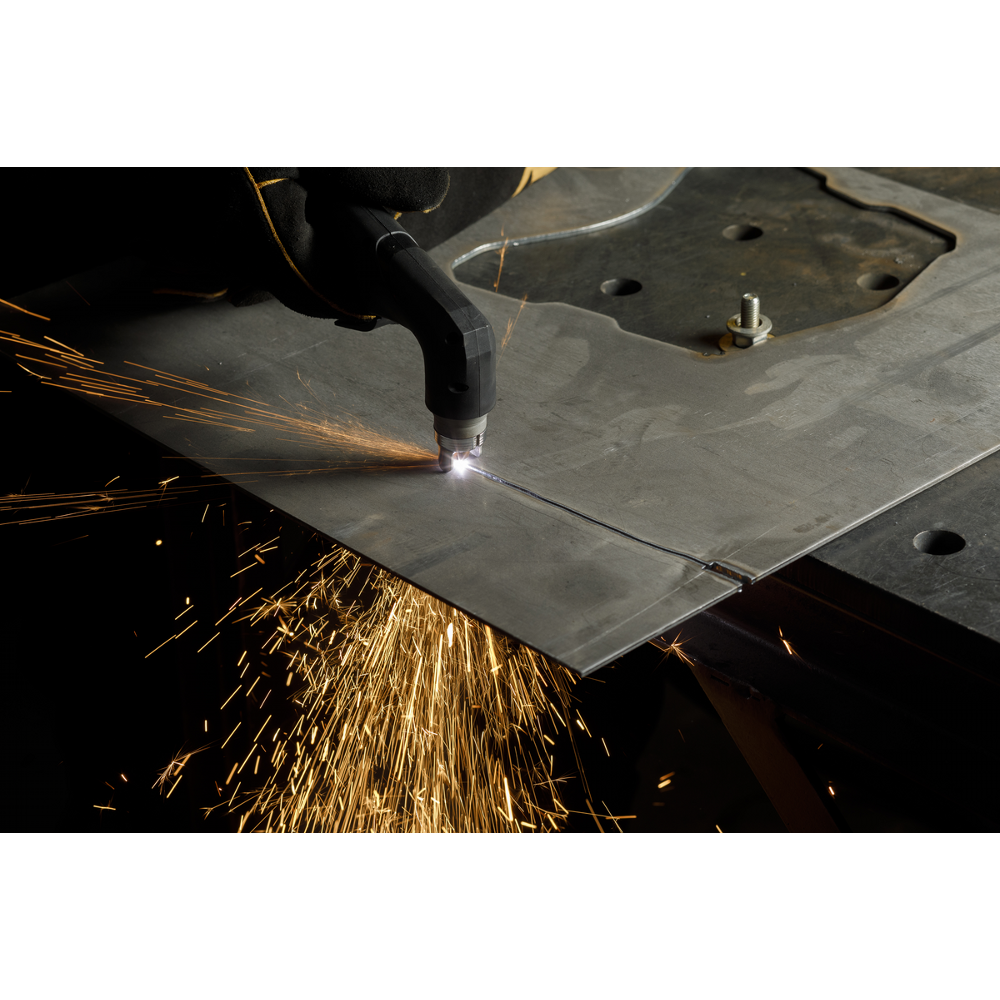

The HandyPlasma 35i is ESAB’s entry-level hand plasma cutter for single-phase 230V. It cuts mild steel up to 12 mm (6 mm recommended), stainless steel up to 10 mm and aluminium up to 8 mm, on plate or grating.

At 13.5 kg including the torch, with a shoulder strap, it’s easy to carry around the workshop or out to site. Set-up is one knob, and all it needs is a 230V socket and a compressed air line.

Features

2.8
2.8″ colour LCD. Shows cutting mode, input voltage and air pressure at a glance.
One-knob set-up.

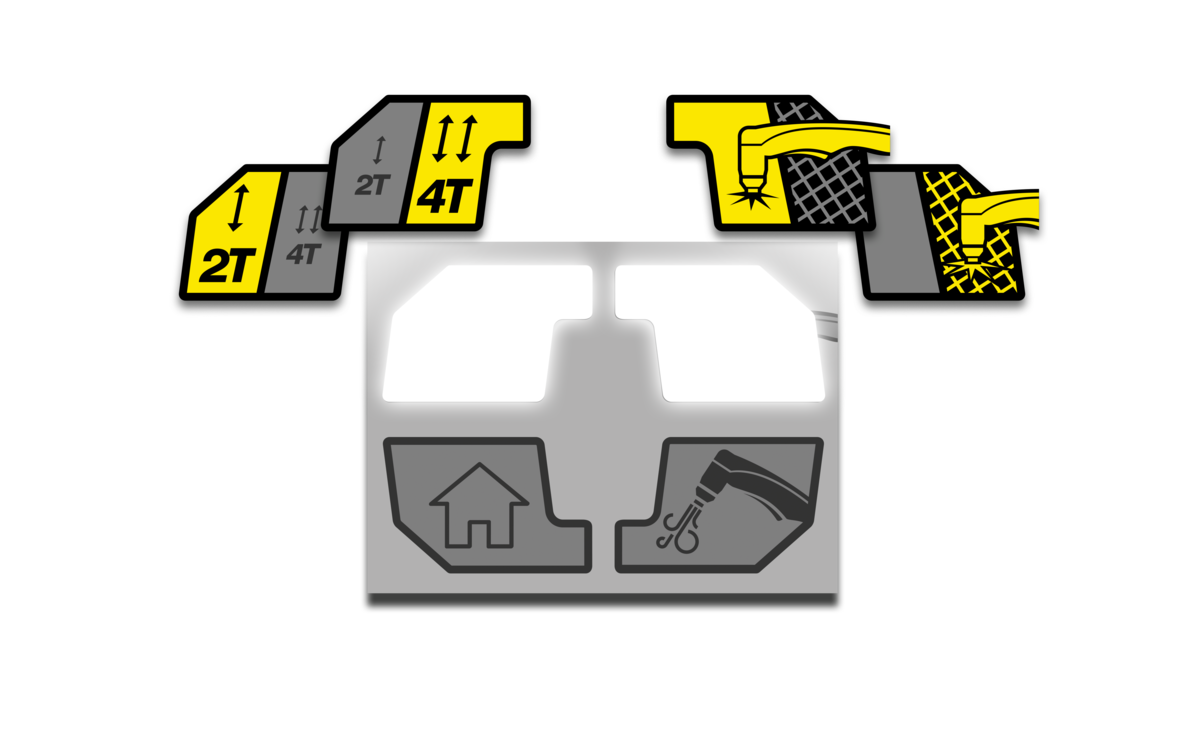

One-knob set-up. Choose 2T (on/off) or 4T (lock-on), pick plate or grate mode, and start cutting.
60A torch included.

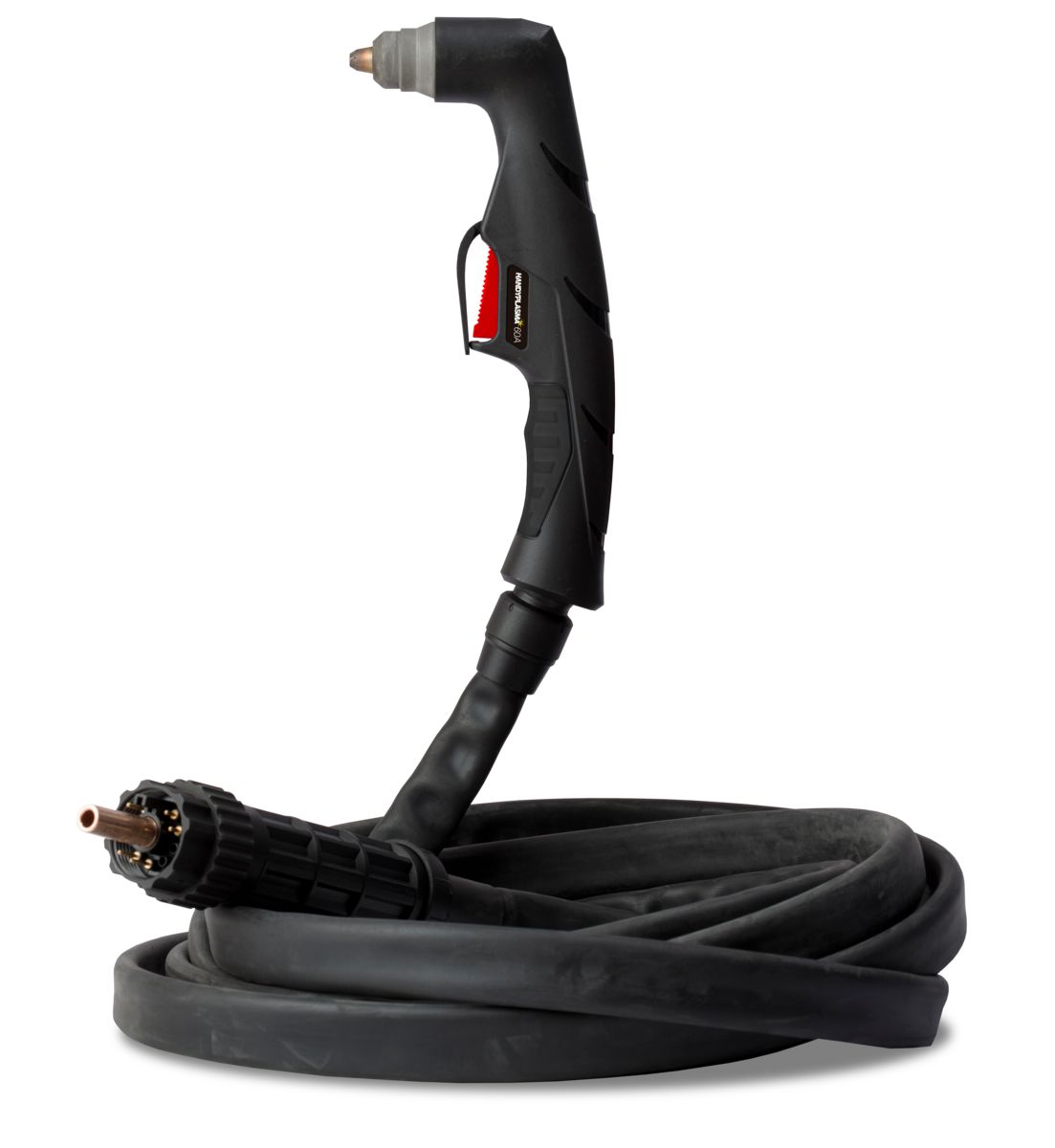

60A torch included. Ergonomic torch on a 5 m lead, with a safety trigger lock. Air post-purges after each cut to extend consumable life.

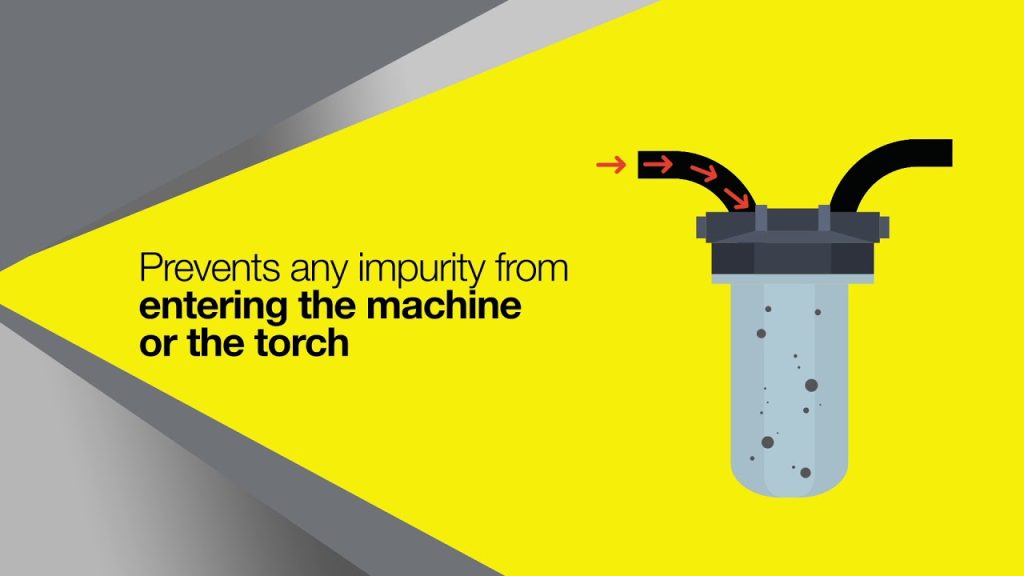

  • Automatic air regulation: the machine reads inlet and outlet pressure itself, so there’s no gas to adjust. An external filter with purge valve removes oil from the air supply.
  • Dedicated consumables: a full range of HandyPlasma consumables keeps it cutting at its best.

What’s in the box

  • HandyPlasma 35i power source
  • Handy Torch 60A plasma torch, 5 m lead
  • Earth lead and clamp
  • Air filter wrench
  • Air line connector
  • Shoulder strap
  • Operating manual

Specifications

Cutting capacity
Mild steel, recommended6 mm
Mild steel, maximum12 mm
Stainless steel10 mm
Aluminium8 mm
Pierce6 mm
Electrical
Input voltage230V ±10%, single phase, 50/60 Hz
Duty cycle35% at 35 A
Output power8 kW
Air supply
Air sourceExternal compressor
Inlet pressure7.3 bar
Air flow110 l/min
Torch air pressure4.6 bar
Physical
Dimensions (L × W × H)415 × 176 × 324 mm
Weight11.8 kg (13.5 kg with torch)
Enclosure ratingIP21C
TorchHandy Torch 60A, 5 m lead
ESAB part number0559160135
