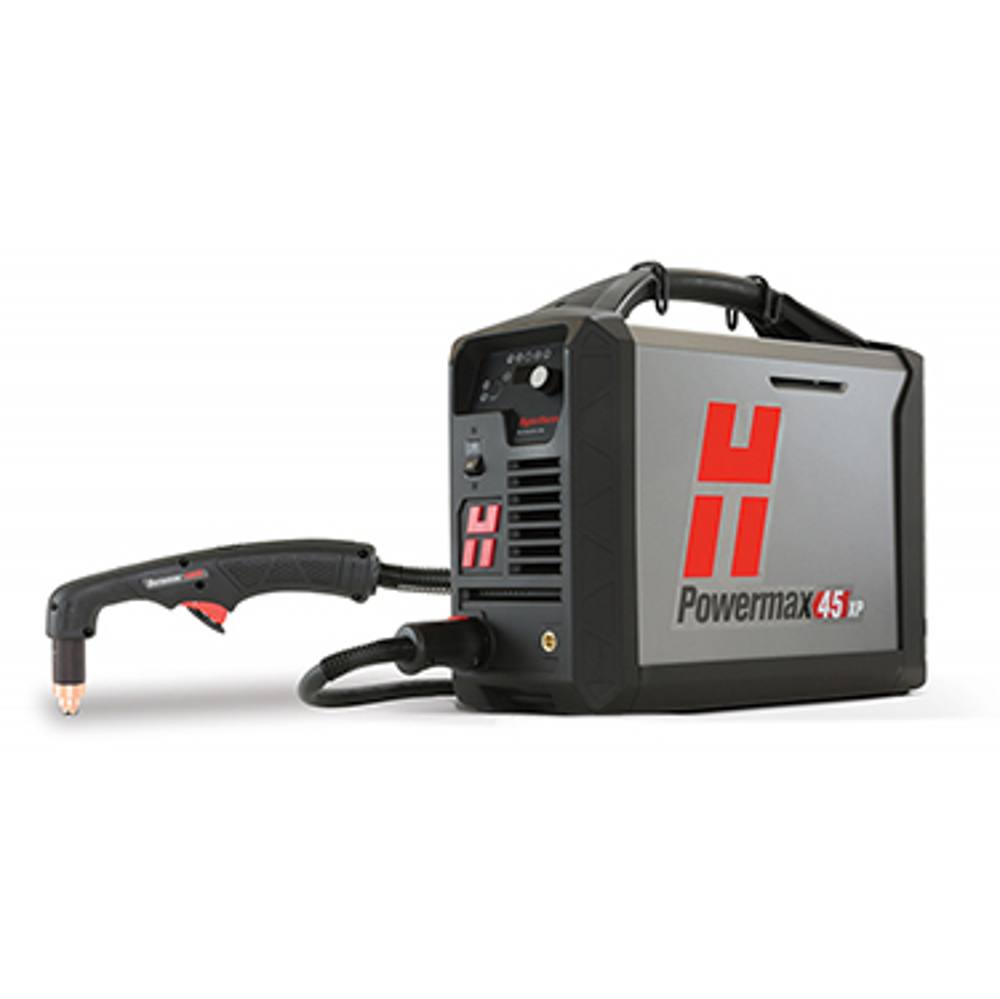

Hypertherm Powermax 45XP 240V

£2,095.00 ex VAT (£2,514.00 inc VAT)

Hypertherm’s best-selling portable plasma, 230V single phase. Cuts 16 mm recommended and severs 29 mm, with automatic air pressure set-up. Supplied with the 6.1 m 75° hand torch.

  • Call 0141 959 5666
  • Free collection from our Glasgow showroom (Scotstoun)
  • Weldsafe – welding specialists since 1982

Available to order – usually despatched in 2–5 working days

Need it by a certain date?

  • Next-day delivery to UK mainland when ordered by 2pm: £8.35 ex VAT, free on orders of £100 ex VAT and over
  • Secure card payments
  • Trade accounts available – apply online
SKU: 088130 Category: Brand:

Product video

Video from YouTube: Introducing the Powermax45 XP!

Description

Recommended cut16 mm
Max sever29 mm
Duty cycle50% at 45 A
Input230V 1-phase
Weight15 kg

The Powermax45 XP is the latest in Hypertherm’s best-selling Powermax range. It cuts 16 mm mild steel at production speed and severs up to 29 mm, faster than its predecessor and 14% lighter.

This is the standard 230V single-phase package with the 6.1 m 75° Duramax Lock hand torch. If you need a different torch, lead length or a machine torch, call or email us.

Features

  • Easy to use: patented drag-cutting technology makes it easy even for first-time operators, and Smart Sense sets the air pressure automatically.
  • Hand or machine cutting: FastConnect torch connection lets you swap between hand and machine torches.
  • Wide range of consumables: for fine-feature cutting, extended reach, gouging, precision gouging and marking.
  • Fast: cuts 6 mm mild steel 1.5 times faster than oxyfuel, with less grinding afterwards.
  • Tough torches: Duramax Lock torches resist heat and impact; SpringStart gives consistent starts.
  • Quick consumable changes: the torch disable switch makes changeovers safer and faster.

What’s in the box

  • Powermax45 XP power source (230V)
  • Duramax Lock 75° hand torch, 6.1 m lead
  • Earth lead and clamp
  • Starter consumables
  • Operating manual

Specifications

Cutting capacity
Recommended16 mm at 500 mm/min
Maximum cut22 mm at 250 mm/min
Severance29 mm at 125 mm/min
Pierce12 mm
Gouging3.4 kg/hour metal removal
Electrical
Input voltage230V ±10%, single phase, 50/60 Hz
Input current at 6.5 kW33 A
Output current10-45 A
Rated output voltage145 VDC
Duty cycle at 40 °C50% at 45 A, 60% at 41 A, 100% at 32 A
Open circuit voltage275 VDC
Power supply typeInverter, IGBT
Electrical efficiency88%
Generator requirement12.5 kVA (10 kW) for full 45 A output
Air supply
Air sourceExternal compressor (clean, dry, oil-free air; nitrogen or F5 also suitable)
Inlet flow and pressure188 l/min at 5.9 bar
Physical
Dimensions with handles (D × W × H)442 × 173 × 357 mm
Weight with 6.1 m torch15 kg
Input power cable3 m
TorchDuramax Lock 75° hand torch, 6.1 m
Warranty3 years power supply, 1 year torch
Hypertherm part number088130
