Features:

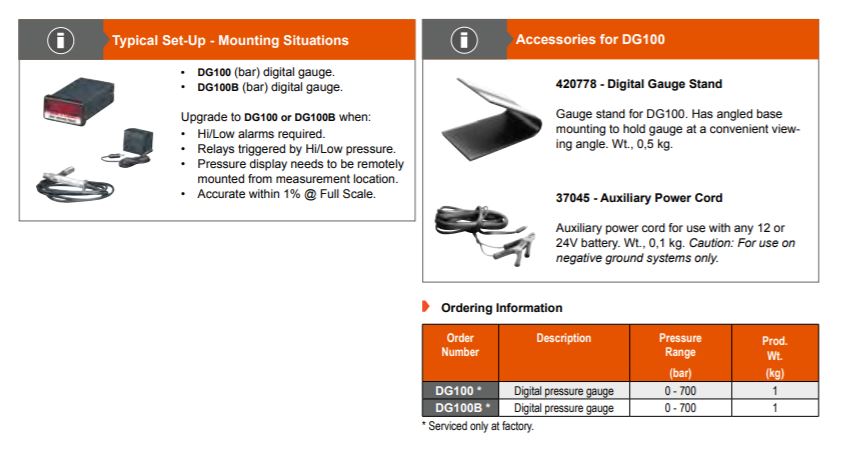

DG100 DIGITAL PRESSURE GAUGES
■ Accurate to within 1%, Long-life pressure transducer.
■ Pressure values are displayed on large red LEDs in
0,7 bar or bar increments.
■ “Peak” hold feature with reset toggle switch and “Peak
On” indicator; Hi/Low set point feature with relay
outputs for Hi/Low alarms and/or control signals.
■ A slow flashing display indicates pressure below
the low limit. Fast blinking display alerts if limit is
exceeded.
■ High and low limit relays are rated to 5 amps at 115V.
■ Operating temperature of -18 to 60°C for the electronic
display and -29 to 82°C for the transducer.
■ Gauge housings are extruded aluminium 1/8" DIN
enclosures (NEMA 1 rating).
■ When power cable is connected to gauge, display
will scroll all characters, performing a self- diagnostic
routine.
■ 1/4" NPTF male threads for the pressure connection.
■ 6-foot input signal cable connects to back of display
unit.
