3-5 days

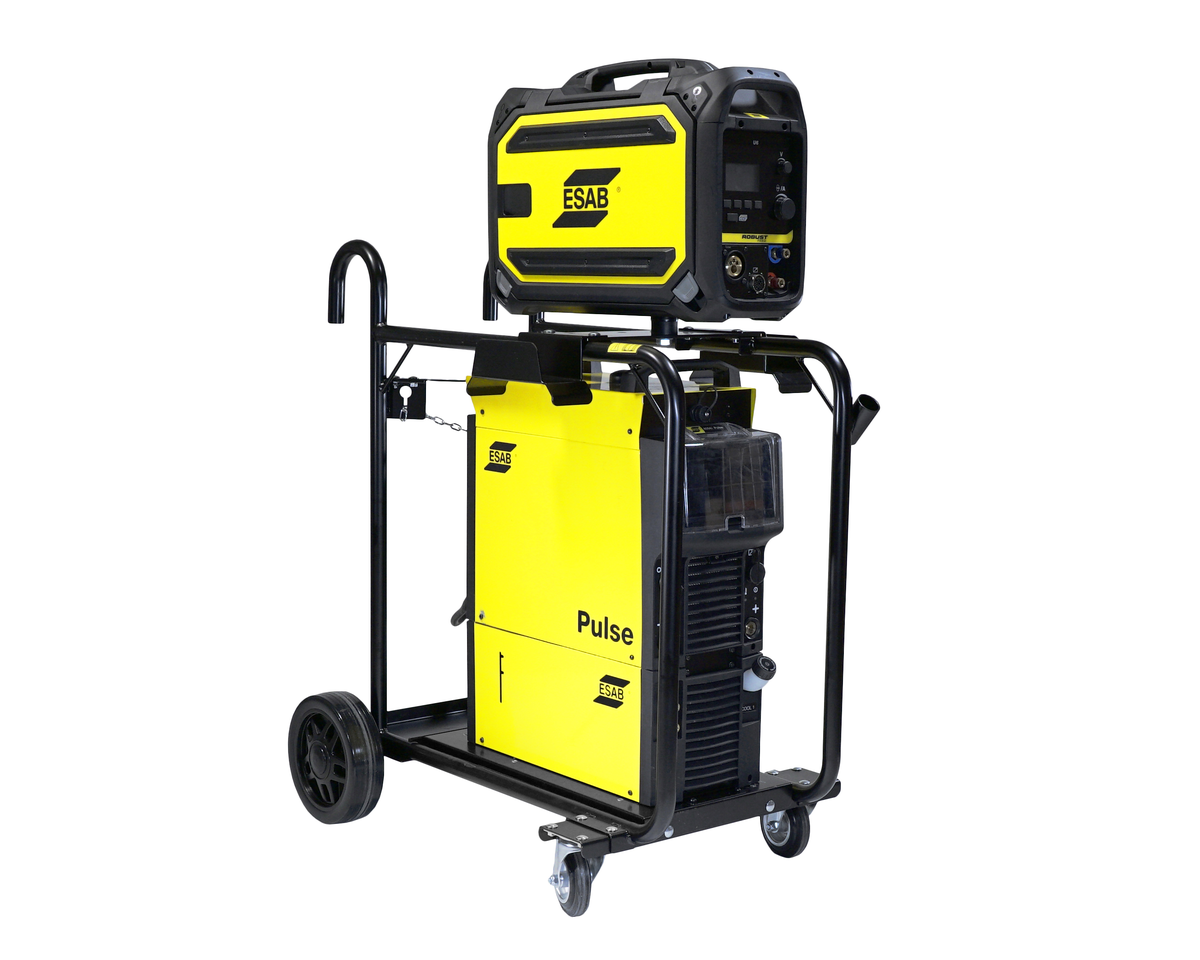

The new edition of the Aristo® 4004i Pulse power source provides substantially improved arc welding performance. It’s designed for highproductivity and high-quality welding applications.
The Aristo power source integrates fully with ESAB's industry-leading WeldCloud™ online data management platform via Wi-Fi, mobile cellular or hard-wired Ethernet communication.
Features:
This welder can be used for best results in the following industries:
Mains Voltage 380 – 460 V
Number of Phases 3 ph
Supply Frequency 50/60 Hz
Fuse Slow 20 A
Welding Output
At 100% Duty Cycle 300 A / 29 V
At 60% Duty Cycle 400 A / 34 V
Setting Range MIG/ MAG & MMA 16 – 400 A
Setting Range TIG 4 - 400 A
Open Circuit Voltage VRD <35 V
Rated kVA 16
Energy Save Mode 40 W
Efficiency at Max Current 89.5%
Power Factor at Max Current 0.95
Dimensions LxWxH 610x250x445 mm
Weight with / without COOl 1 58 kg / 44.5 kg
Operating Temperature -10 to +40 °C
Enclosure Class IP23
Application Class S
Insulation Class H
Certification Mark (Standards) CE
Recommended Mains Cable Cross AWG 10, (4x 4.0 mm2)
Section
