3-5 days

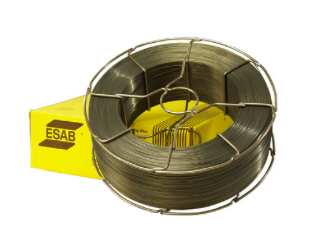

Coreshield15 produces smooth arc action, full slag coverage, easy slag removal, and low spatter.
The use of DCEN (electrode negative) current minimizes the risk of burn-through.
Coreshield 15 is excellent for use on lap and fillet welds on thin gauge galvanized and mild steels in all welding positions.
The availability of 0.8 mm (.030 in.) diameter makes it possible to use this product on materials as thin as 1.2 mm (18 gauge).
The wire is particularly suitable for thin gauge materials 0.8-5.0 mm (0.030 - 3/16 in.) in galvanised, zinc-aluminum carbon, or aluminised carbon steels.
In structural fabrications, the product can be used where no seismic requirements are present.
Typical Tensile Properties
Condition As Welded
Tensile Strength 614 MPa
Recommended Welding Parameters
Current 40-100 A
Voltage 14-16 V
Wire Diameter 0.030 in.
Wire Diameter 0.8 mm
Wire Feed Speed 118-276 in./min
Wire Feed Speed 3.0-7.0 m/min
Classifications
Grade E71T-GS
Name SFA/AWS A5.20
Consumable Characteristics
Alloy Type C Mn
Welding Current DC-
Typical Weld Metal Analysis %
Al 1.98 %
C 0.23 %
Mn 0.70 %
Si 0.40 %
