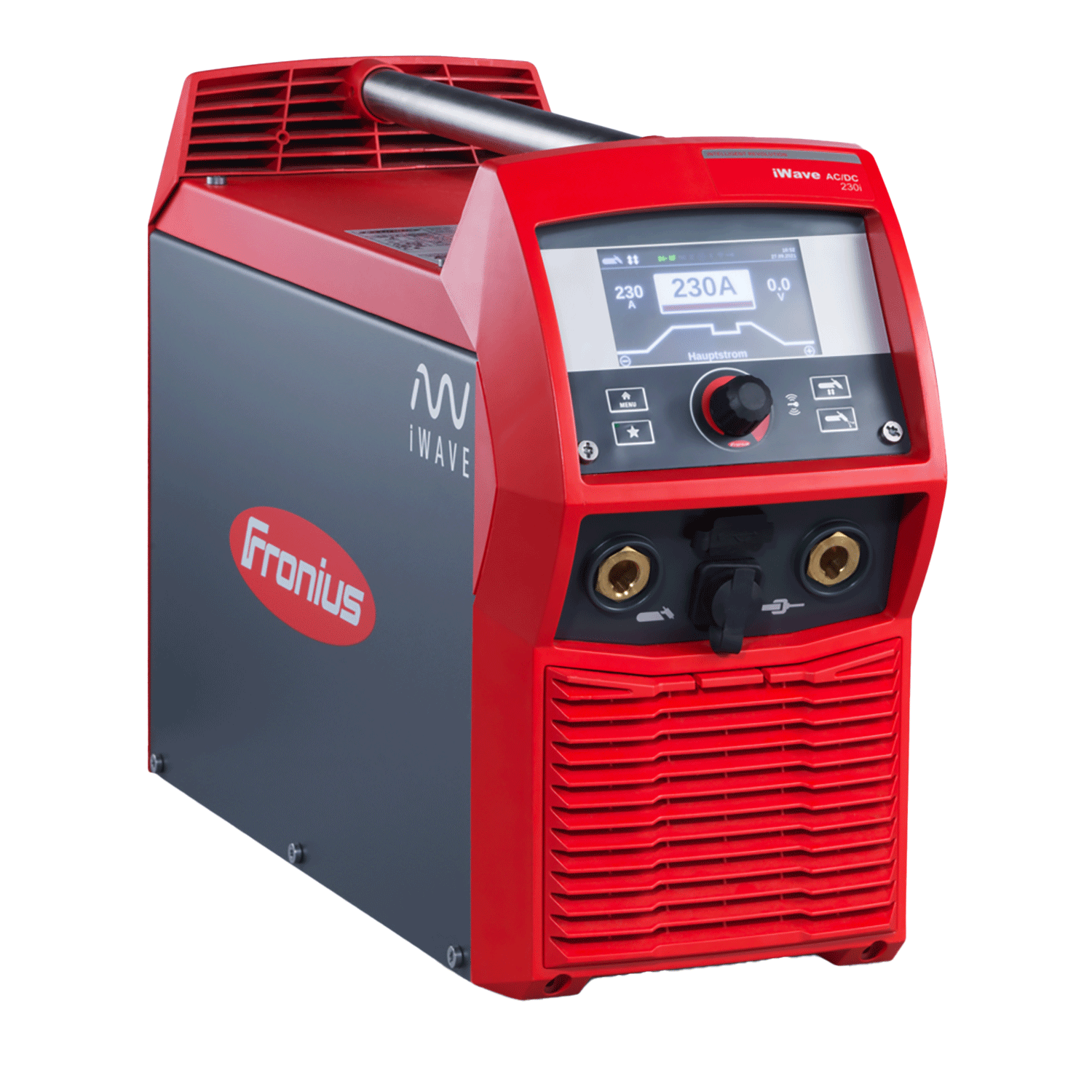

Fronius iWave 230i AC DC MV 110V-230V Air Cooled Package

See All Reviews

£4,380.00 inc VAT

£3,650.00 exc VAT

Availability:

In Stock Now

The iWave features an extremely robust design and an exceptionally self-explanatory operating concept.

Fronius iWave 230i AC DC MV 110V-230V Air Cooled Package

Name: Fronius iWave 230i AC DC MV 110V-230V Air Cooled Package
Brand: Fronius
SKU: 4.075.219.008
Price: 4,380.00 GBP
Availability: InStock

£4,380.00

Product Code: 4.075.219.008

Download PDF

Long Detail

The iWave features an extremely robust design and an exceptionally self-explanatory operating concept.

The iWave is a completely digitised TIG AC/DC power source that is used especially for aluminium applications. Alongside the different power categories from 170 to 500 A, the devices also vary in their mobility – from the portable device to the high-power stationary complete system.

The iWave 230i is connectible with other devices via Bluetooth, Wireless LAN and NFC such as welding helmets, remote controls and also mobile phones.

ACTIVE WAVE TECHNOLOGY

Active Wave makes TIG AC welding a much quieter business. The integrated digital signal processor always computes the waveform that will permit the highest possible arc stability with the lowest possible noise-emission levels in real time. Measurement of these noise levels clearly shows that with Active Wave, the dbA value is still below 80 dbA, even when the machine is delivering 210A of power.

TAC

With TAC, one spot is all it takes for tacking, because the pulsed arc sets the two weld pools in motion, making them jump together in next to no time, to make one single weld-pool. The TAC function is also very useful when welding light-gauge sheets without filler metal.

HF IGNITION

The touchless and gentle high-frequency ignition is the easiest option for igniting the arc.

TOUCHDOWN IGNITION

Touchdown ignition can be used in particular for sensitive application areas. This allows electromagnetic interference, which can occur during HF ignition, to be avoided.

AUTOMATIC CAP-SHAPING

This function enables automatic cap-shaping when welding aluminium, resulting in significant time savings. The user can set the size.

IMPROVED WELD PROPERTIES

High open circuit voltage and ample power reserves improve HF ignition behaviour
2 kHz pulse welding as standard on all devices; the PulsPro function package can deliver a pulse frequency of up to 10 kHz
Saving and editing of up to 999 jobs using the Job function package

QUICKLY ACHIEVE A CLEAN TIG WELD SEAM THROUGH SIMPLE CONTROLS

Multilingual menu
Intuitive and self-explanatory menu navigation
A bright 4.3” colour display makes parameters easier to set and read
Operation of rotary and push button also possible when wearing welding gloves
Favourites button for quick access to the most important parameters

COMMUNICATIONS CAPABILITY, PLUS ADDITIONAL FUNCTIONS CAN BE ADDED EASILY

The iWave 230i communicates wirelessly with peripheral devices via Bluetooth, WLAN and NFC
Adaptable to customer requirements using optional function packages that provide the power source with additional, customised functionality

Technical Spec.

Package Contains:

iWave 230i MV Power Source
THP 220i G ML/F/UD/4m TIG Torch Assembly
TTB 220P G ML/70°/L55 TIG Torch RIGID Head
3m Earth Lead

Also available as a watercooled package, contact us for a price

Weight	17 kg
Dimension / l	558 mm
Dimension / w	210 mm
Dimension / h	369 mm
Welding current / Duty cycle [10min/40°C]	230A / 35%
Welding current / Duty cycle [10min/40°C]	195A / 60%
Welding current / Duty cycle [10min/40°C]	165A / 100%
Operating voltage	10,1-19,2V
Open-circuit voltage	100 V
Mains frequency	50-60Hz
Mains voltage	110V or 230V
Mains fuse	230V 16A 110V 32A
Degree of protection	IP23
