Welding helmets from Fronius are a byword for super-safe working and superb comfort and convenience for the wearer. The helmets automatically detect when you start welding and darken the filter extremely quickly – so you have optimum visibility before, during and after welding.
High-grade materials and a special paintwork finish give users the very best protection against heat and reflected light, while a special integrated filter shields you from harmful ultraviolet and infrared radiation.
An adjustable headband ensures an excellent fit and optimum wearer comfort. A true-colour display and high optical classes significantly improve the view of the weld pool.
Vizor systems also come with a grinding mode and are suitable for overhead welding.
Vizor Connect Specifics
Due to the Bluetooth ® technology, the welding helmet can be darkened by the welding machine even before the arc is ignited. This additional function is currently supported by MagicWave 230i / TransTig 230i welding devices and the TPS/i family (320i-600i). The welder is thus protected from the short brightness flash during ig- nition. The unwanted opening of the cartridge during welding is also protected by the Bluetooth ® technology.
Features
/ The nose cut shape of the cartridge offers an extremely large field of view.
/ Automatic adjustment of the shade level in the range between 5 and 12
/ Brightness level 2.5 in open mode
/ Use as grinding mask in connect-mode
/ Low energy consumption due to rechargeable lithium-ion battery
Included in the scope of supply: Welding helmet complete, one front cover lens, one nose protection pad, one USB-C cable

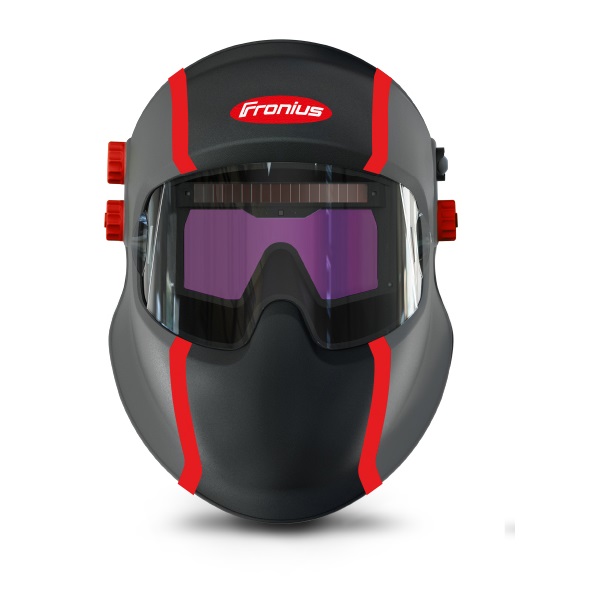

VIZOR CONNECT
Switching time dark / light - 0,1s-2,0sec
Weight - 0,55kg
Shade level range - 2,5/7-12 (man.) bzw. 2,5/5-12 (auto)
Cartridge size [LxBxH] - 58x125mm / 2.28x4.92“
Classification - 1/1/1/2 EN379
Replacement parts are available, please contact us to discuss your needs.
42.0510.0317 Front cover lens (5 pcs per set)
42.0510.0315 Inside cover lens Vizor Connect (5pcs per set)
42.0510.0322 Inside cover lens Vizor Connect 1.00 diopter
42.0510.0323 Inside cover lens Vizor Connect 1.50 diopter
42.0510.0324 Inside cover lens Vizor Connect 2.00 diopter
42.0510.0325 Inside cover lens Vizor Connect 2.50 diopter
42.0510.0336 Inside cover lens Vizor Connect shade level 1.0 (5pcs per set)
42.0510.0345 Inside cover lens Vizor Connect shade level 2.0 (5pcs per set)
42.0510.0326 Headband complete Vizor Connect / Grindmask
42.0510.0018 Front head band Vizor / Fazor (2pcs perset)
42.0510.0200 Headband back (2pcs per set)
42.0510.0327 USB-C cable Vizor Connect
42.0510.0329 USB-C cover cap Vizor Connect (2pcs per set)
42.0510.0328 Nose protection pad Vizor Connect (2pcs per set)
