Hypertherm Powermax 105

See All Reviews
Availability: Obsolete
The Powermax105® plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities on 32 mm (1-1/4") thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Seven Duramax™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging.

Hypertherm Powermax 105

£

Enquire
Product Code: 059414
Download PDF

Long Detail

Maximum productivity

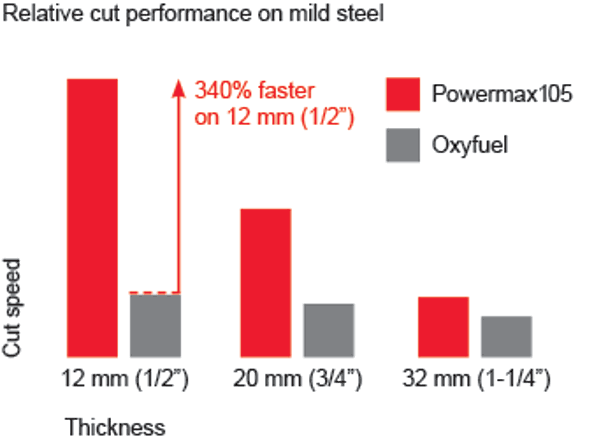

  • Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm (1/2") mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging

  • No need to change the air pressure – Smart Sense technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
  • SpringStart™ technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Built to handle tough jobs

  • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
  • Duramax torches are designed for high-impact and heat resistance

















Technical Spec.

Specifications

Input voltages CSA 200-600 V, 3-PH, 50/60 Hz
CE 400 V, 3-PH, 50/60 Hz
200-400 V, 3-PH, 50/60 Hz
CCC 380 V, 3-PH, 50/60 Hz
Input current @ 16.8 kW 200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A
Output current 30 - 105 A
Rated output voltage 160 VDC
Duty cycle @ 40°C (104°F) 80% @ 105 A
Open circuit voltage (OCV)
  • 200-600 V CSA: 300 VDC
  • 380 V CCC and 230-400 V CE: 288 VDC
  • 400 V CE: 292 VDC
Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Weight with 7.6 m (25') torch
  • 200-600 V CSA: 45 kg (100 lbs)
  • 380 V CCC/400 V CE: 41 kg (90.4 lbs)
  • 230-400 V CE: 45 kg (100 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure		 Cutting: 217 l/min (460 scfh) @5.9 bar (85 psi)
Gouging: 227 l/min (480 scfh) @4.8 bar (70 psi)
Input power cable length 3 m (10') *
Power supply type Inverter - IGBT
Engine drive requirement 30 kW for full 105 A output
Certifications CSA-certified for use in the Americas and Asia, except China.
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.
