Hypertherm Powermax 85

See All Reviews
Availability: Obsolete
The premier system for cutting 25 mm (1"), the Powermax85® has the same features and options as the Powermax65®, but with more power from an output current of 85 amps. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.

Hypertherm Powermax 85

£

Enquire
Product Code: 087117

Long Detail

Maximum productivity

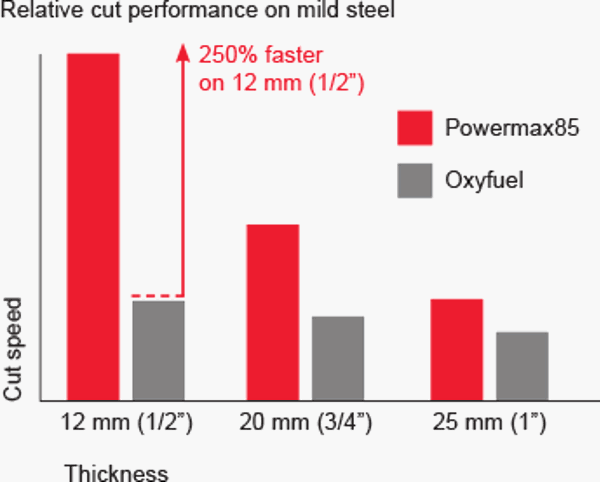

  • Finish jobs faster with cut speeds two and a half times greater than oxyfuel on 12 mm (1/2”) mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
CHT_pmx85_cut_performance_chart_EN (1).gif

Easy-to-use for cutting and gouging

  • No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
  • SpringStart™ technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Rugged and reliable

  • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
  • Duramax™ torches are designed for high-impact and heat resistance



Technical Spec.

Input voltages CSA 200 – 480 V, 1-PH, 50/60 Hz
200 – 600 V, 3-PH, 50/60 Hz
CE 380/400 V, 3-PH, 50/60 Hz
Input Current @12.2 kW CSA 200/208/240/480 V, 1-PH, 70/68/58/29 A
200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A
CE 380/400 V, 3-PH, 20.5/19.5 A
Output current 25 - 85 A
Rated output voltage 143 VDC
Duty cycle @ 40°C (104°F) CSA 60% @ 85 A, 230 – 600 V, 3-PH
60% @ 85 A, 480 V, 1-PH
50% @ 85 A, 240 V, 1-PH
50% @ 85 A, 200 – 208 V, 3-PH
40% @ 85 A, 200 – 208 V, 1-PH
100% @ 66 A, 230 – 600 V, 1/3-PH
CE 60% @ 85 A, 380/400 V, 3-PH
100% @ 66 A, 380/400 V, 3-PH
Open circuit voltage (OCV) CSA 305 VDC
CE 270 VDC
Dimensions with handles 500 mm (19.7") D; 234 mm (9.2") W; 455 mm (17.9") H
Weight with 7.6 m ( 25') torch CSA 32 kg (71 lbs)
CE 28 kg (62 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure		 Cutting: 189 l/min (400 scfh, 6.7 scfm) @ 5.9 bar (85 psi)
Gouging: 212 l/min (450 scfh, 7.5 scfm) @ 4.8 bar (70 psi)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
