Features:

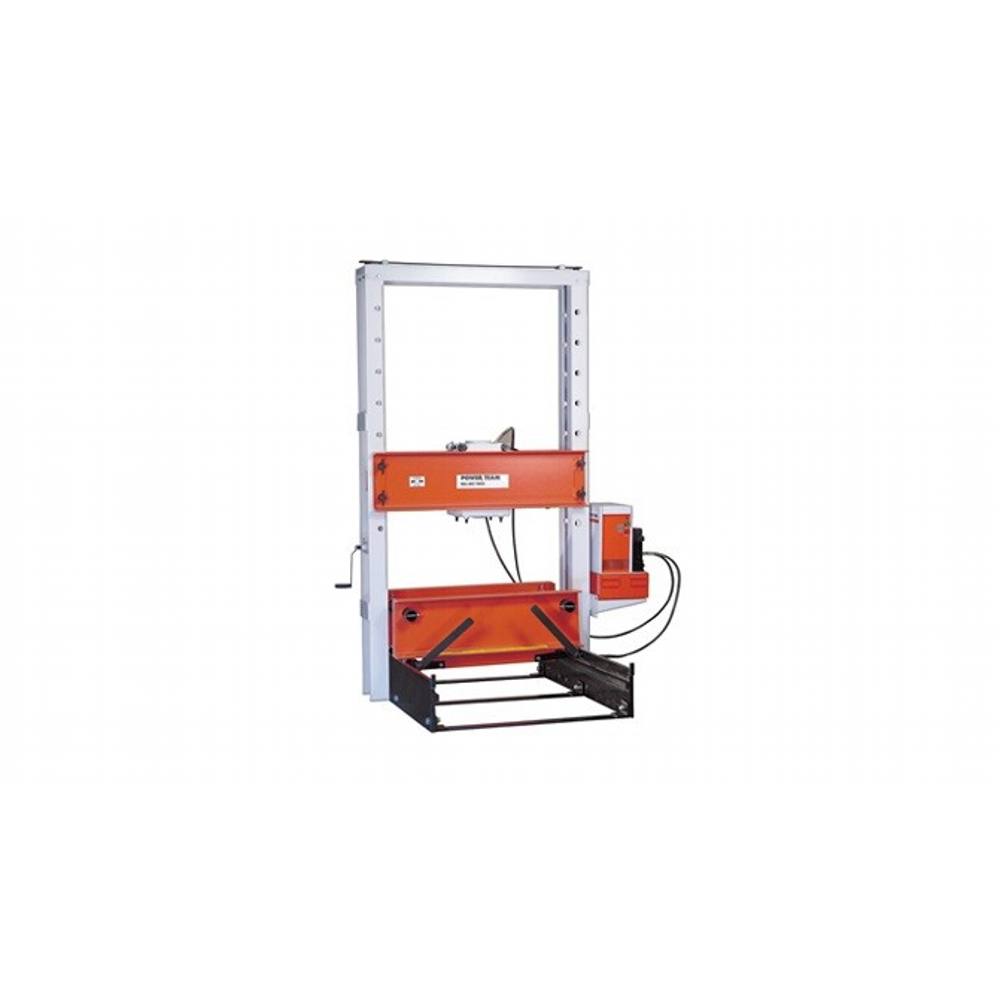

H-FRAME ROLL-BED® PRESS
■ The original, patented Roll-Bed® extends out for easy
loading and unloading with a crane or other lifting
device, supporting loads up to 1361 kg.
■ Movable work-head glides easily side-to-side for full
off-centre load capacity across width of upper frame.
■ “Daylight” is 1283 x 1524 mm for 80 and 100 ton
models; 1302 x 1625 mm on 150 and 200 ton presses.
■ Fast approach of double-acting, 334 mm stroke
cylinder is provided by PQ1204S “Quiet” electric/
hydraulic pump with remote control hand switch.
Operator can view work from all sides with fingertip
control of cylinder piston travel.
■ Adjustable lower bed width for secure balancing and
centring of heavy jobs.
■ Lifting mechanism has a turn crank handle to raise or
lower upper bolster (a heavy-duty 1/2" drill motor can
replace handle for automatic adjustment). Four locking
pins hold bolster in place for pressing.
