Trumpf TruTool TKF 1500 4B1 GB


£5,399.99 inc VAT

£4,499.99 exc VAT

Availability:

3-5 days

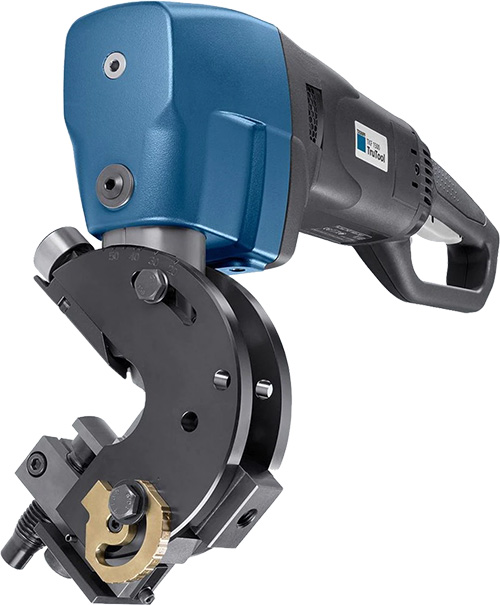

With the TruTool TKF 1500 beveller, you can continuously adjust the angle of bevel in the range from 20° to 55°. The 2600 W motor ensures outstanding durability.

Trumpf TruTool TKF 1500 4B1 GB

£5,399.99

Product Code: 2606426

Long Detail

With the TruTool TKF 1500 beveller, you can continuously adjust the angle of bevel in the range from 20° to 55°. The 2600 W motor ensures outstanding durability.

Integrated hand protection on the motor ensures a high degree of user-friendliness and provides you with safety during operation. The soft grip ensures user-friendly operation with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams or tubes. The surface roughness remains low.

  • 2600 W motor, the extremely powerful motor ensures a high degree of durability

  • Safe operation, integrated hand protection on the motor provides you with a high degree of safety when working

  • The right setting, It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness

  • Continuously adjustable from 20° to 55°, you can use the carrier for various angles between 20° and 55°.


The Right Choice

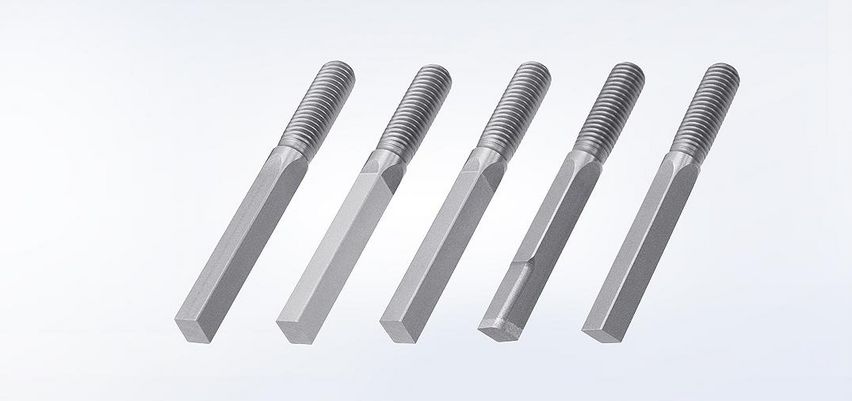

There are five cutting tools to choose from. This enables you to achieve perfect results across a wide range of applications. The material being processed is the determining factor when it comes to choosing the right cutting tool. The cutting tools can be interchanged without the need for additional tools, and you can regrind these many times over. This results in a long service life and reduces your operating costs.





Technical Spec.

MAXIMUM CHAMFER LENGTHS
MAX. CHAMFER LENGTH, STEEL 400 N/MM² 15 mm
MAX. CHAMFER LENGTH, STEEL 600 N/MM² 9 mm
MAX. CHAMFER LENGTH, STEEL 800 N/MM² 6 mm
RADII
SMALLEST RADIUS 55 mm
GENERAL
WORKING SPEED 2 m/min
STROKE RATE AT NOMINAL LOAD 370 1/min
NOMINAL POWER CONSUMPTION 2600 W
SHEET THICKNESS 4 mm - 160 mm
WEIGHT
WEIGHT WITH HANDLE, WITHOUT CABLE 16.5 kg
