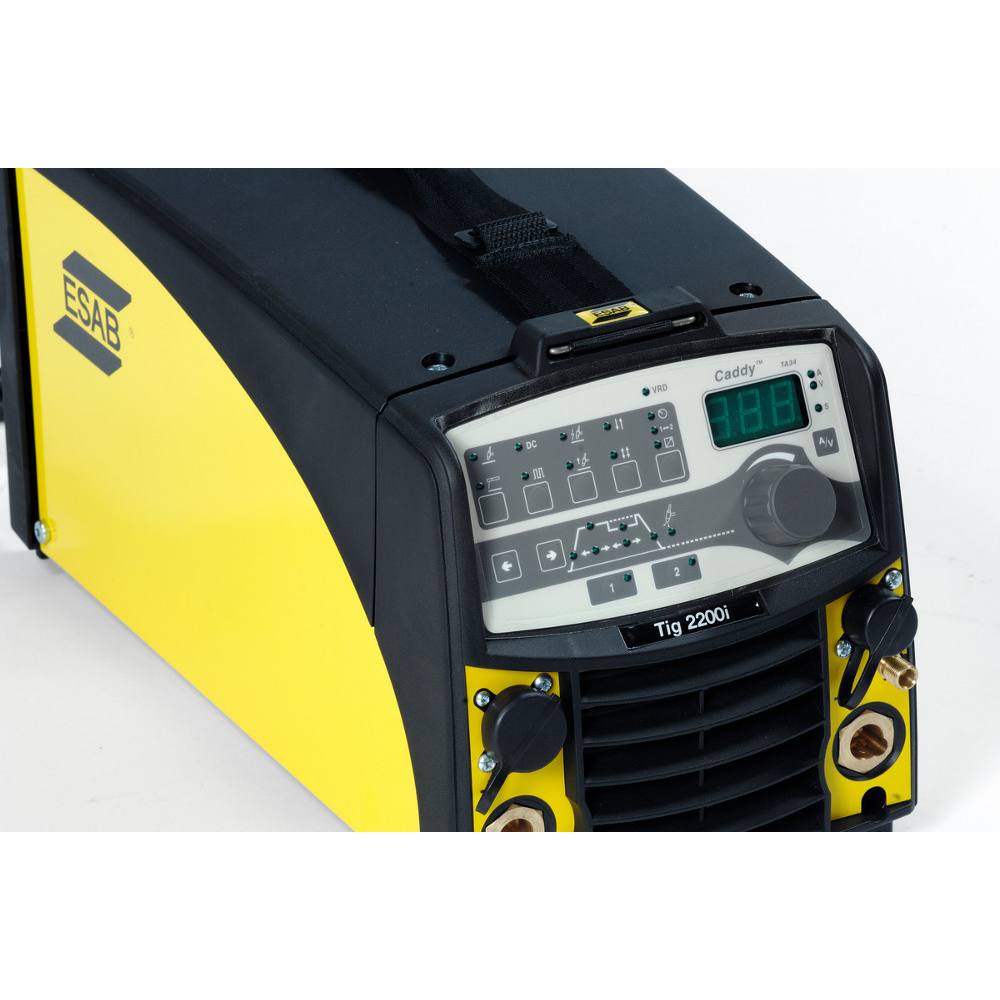

CADDY TIG 2200I, TA34

Long Detail

Not only is Caddy® Tig 1500i/2200i small and of low weight. Thanks
to its intelligent, compact design it is easy to take along to different
indoor and outdoor worksites and also to tuck away when not used,
making it handy both in the workshop and on the move.
Single phase mains connection makes it easy to find an electricity
supply for the unit, and it works equally well when powered by a
portable generator. *
Thanks to the built-in PFC circuit the machine can operate with extra
long mains cables, over 100 m, giving the welder a very large
working radius.

Features

• Compact and portable inverter for advanced TIG welding, with HF or LiftArc™ start, and MMA
• Durable and impact resistant design with OKC 50 cable connectors
• Easy to operate. Graphical parameter setting for advanced TIG welding
• Digital display for settings
• Remote control possibility
• Pulsed TIG giving increased control of heat input and weld pool
• Two memories for storing of settings
• Micro Pulse minimising heat affected zone especially on thin material
• Adjustable slope up/down and gas post-flow
• ArcPlus™ II regulator for better MMA welding characteristics. Higher weld quality with less after treatment
• Caddy^® Tig 1500i welds most electrodes from Ø 1,6 - 3,2 mm and some 4 mm electrodes
• Caddy^® Tig 2200i welds most electrodes from Ø 1,6 - 4 mm
• Can operate with extra long mains cables, over 100m
• IP 23 - designed for outdoor use making it safe on all work sites

Applications

• Professional welding tool
• In and outdoor installation, repair and maintenance on site
• In and outdoor production, fabrication and civil construction
• Process industry
