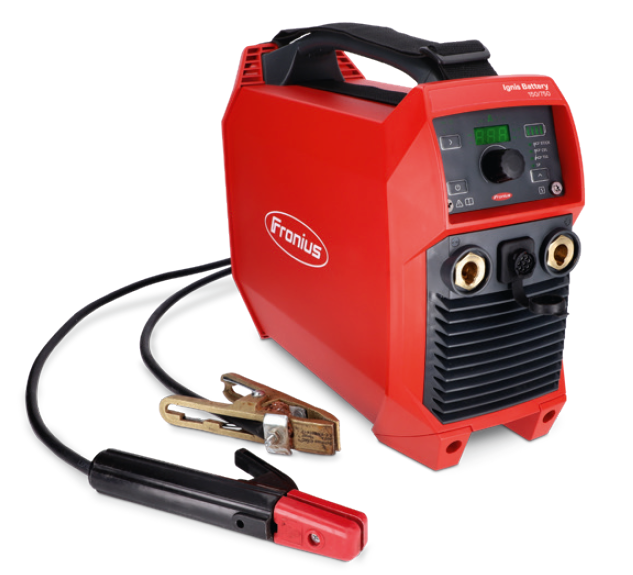

Fronius Ignis B 150 Battery Welder MMA Set 750W (With 230V ActiveCharger)

Long Detail

Off-grid MMA welding with Ignis Battery, a rechargeable battery-driven manual electrode power source.

Now jobs needing up to 12 x 3.2 mm (0.13”) electrodes or up to 31 x 2.5 mm (0.1”) ones can be welded autonomously. And without any limitations on the welding power or the quality of the arc. The perfect interplay between the battery and the welding electronics also permits high welding voltage at high power.

Whether you’re working on exposed installations and construction sites, in the great outdoors, or in an open field: These and many other situations pose a particular challenge for welding specialists. Responsibility is literally in their hands. What is more, conventional welding solutions quickly reach their limits here. Complex grid leads often have to be laid to the welding point or a heavy and noisy generator used – both very costly and time consuming measures.

With the Ignis Battery a power connection is not required. With complete independence from the energy supply, you can rely on a stable and high-performance welding process for both manual arc and TIG welding thanks to innovative battery technology, leaving you to focus fully on the task at hand.

• All electrodes can be welded: Rutile, basic, cellulose. You can weld up to thirty one 2.5 mm or twelve 3.25 mm electrodes on just one battery charge. Alternatively, 30 minutes of continuous TIG welding can be performed (at 100 A) – independent of power and without recharging.


• Despite the integrated battery, the Ignis Battery weighs just 12 kg (without charger). The robust design of the device and the stainless steel filter also support demanding outdoor use, on rough terrain or in adverse weather conditions.


• Special features: 84 battery cells, 750 Wh, no Memory Effect, low self-discharge, voltage monitoring of all battery cells and protection from overcharging, deep discharge and overheating. A quick charge is possible in just 40 minutes (80% power), full charging takes 60 minutes.


• MMA and TIG welding are integrated as standard in the Ignis Battery: The best of both worlds in one device!

Ready for use again in no time
High-performance lithium-ion battery (750 Wh)

Quick battery charging:
40 min – 80% power
60 min – 100% power

Normal charging:
55 min – 80% power
85 min – 100% power

When you’re in a hurry: Two electrodes can be welded after only 5 minutes of charging time!
