Fronius TransSteel 3500C COMPACT Package

Availability:

3-5 days

The TransSteel 3500 Compact is the most powerful Multiprocess welding system in the TransSteel series. Irrespective of the welding process, the welder has a total of 350A with 40% duty cycle at their disposal. Optional water cooling is also available for this power range.

Fronius TransSteel 3500C COMPACT Package

Name: Fronius TransSteel 3500C COMPACT Package
Brand: Fronius
SKU: TRANSSTEEL-3500C-PKG
Availability: OutOfStock

£

HIGH-POWER WELDING AND A BROAD RANGE OF APPLICATIONS

40% DUTY CYCLE

Four minutes of continuous welding at maximum output power, in other words, one minute more of productive output compared with the average in this power range.

167 CHARACTERISTICS*

/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, Self-shielded
/ 0.8 – 1.6mm wire diameter
/ Eight different gas mixtures

READY TO WELD IN THREE STEPS

The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.

70% LESS REWORK, 30% FASTER WELDING

The Pulse function of the TransSteel 4000 and TransSteel 5000 Pulse permits faster welding speeds on thicker materials. The pulsed arc also reduces the amount of rework, as less welding spatter is generated.

Ready to weld in three steps
High-quality torch range suitable for high power and long service lives
Complies with EN 1090
Spot and interval welding as standard
Modular system design possible

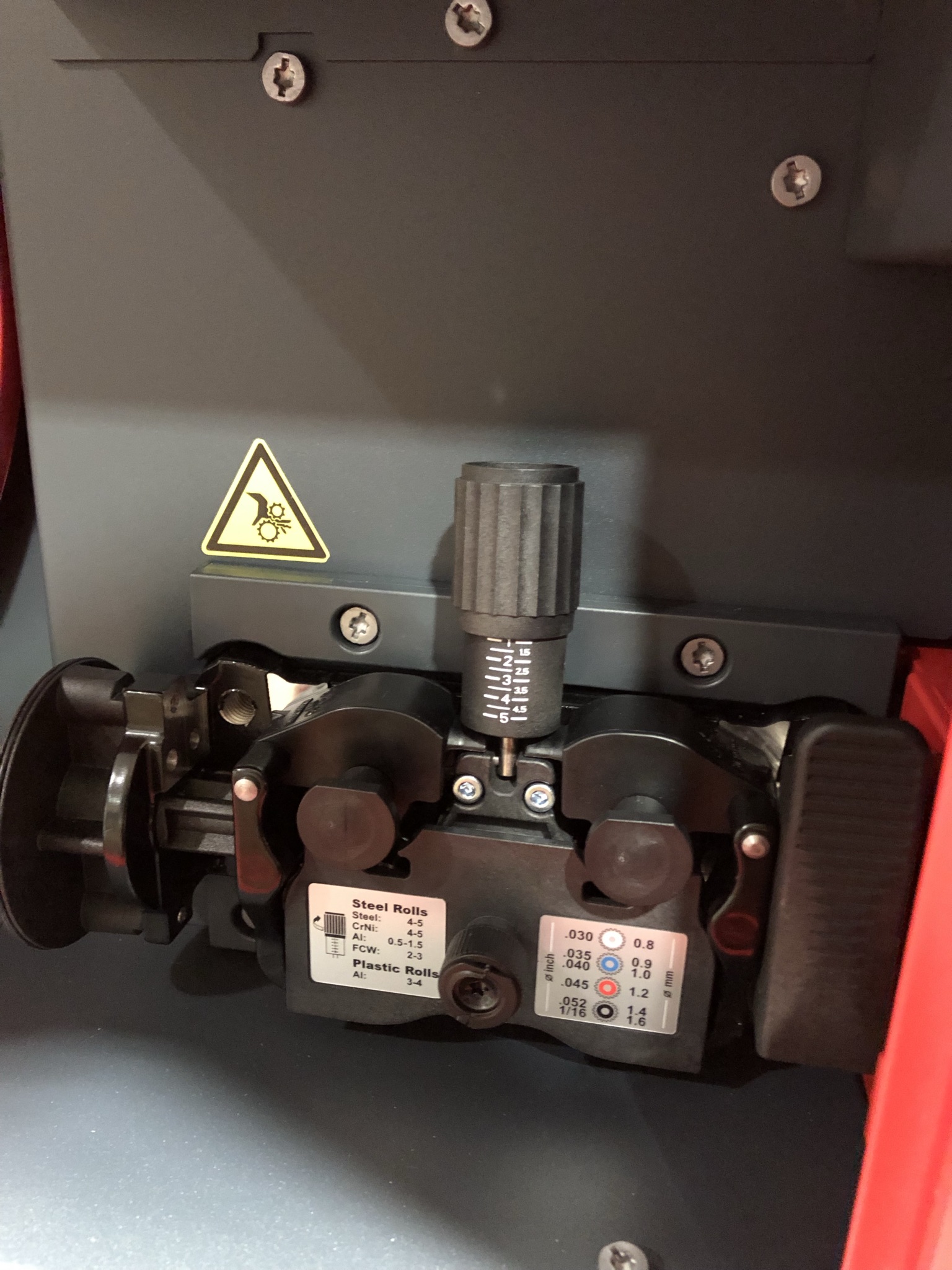

Comfort Wire for independent wire threading without opening the motor plate

Length

747 mm

Weight

34,64 kg

Dimension / l

747 mm

Width

300 mm

Height

497 mm

Welding current max.

350 A

Welding current min.

10 A

Welding current / Duty cycle [10min/40°C]

350A 40% MIG/MAG, MMA, TIG

Welding current / Duty cycle [10min/40°C]

300A 60% MIG/MAG, MMA, TIG

Welding current / Duty cycle [10min/40°C]

250A 100% MIG/MAG, MMA, TIG

Open-circuit voltage

59 V

Mains voltage

3 x 380V / 400V / 460V

Degree of protection

IP23
